PRE-OPERATION FUNCTION TEST
5. Not used
11. Glow plug switch 17. Climbing mode enable switch
6. Not used
12.Platform up/down enable switch 18. Engine speed select switch

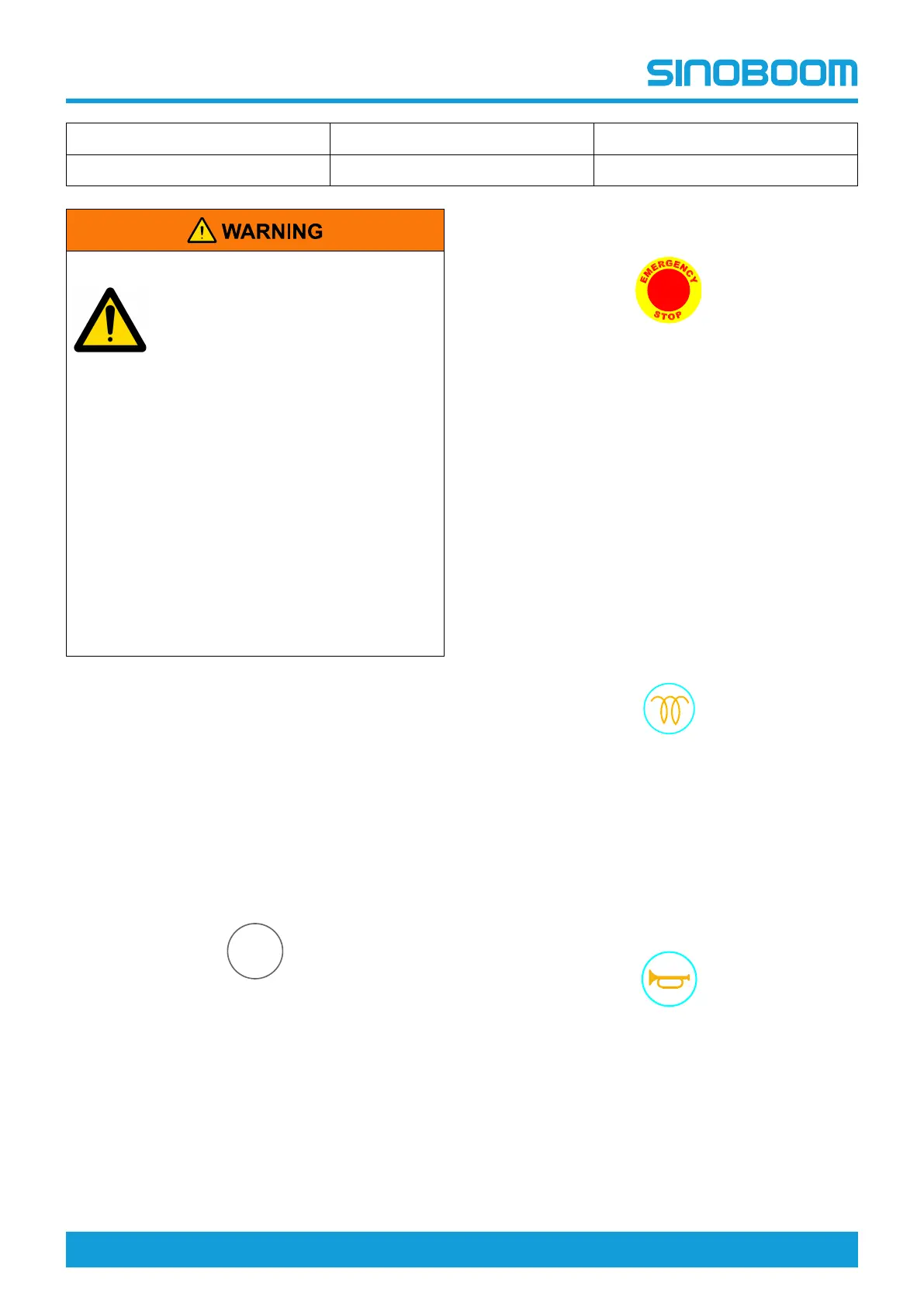

UNSAFE OPERATION HAZARD
• Unless in emergency situations,
never operate the machine from
the ground controller if there is
still any person on the platform.
• Never operate the machine if any
control handle or switch that
controls the platform movement
is not returned to the OFF position
after being released.
• Platform controller joysticks of
different brands can’t be used to
replace each other, otherwise the
machine may be damaged or
safety accidents may occur.
• To avoid severe personal
accidents and deaths, never
remove or alter the foot switch (if
equipped) or disable it with blocks
or any other means.
PREPARATION
1. Select a firm, level test surface free of
obstructions.
2. Turn the Ground/Platform select switch on ground
controller to Platform position.
IGNITION SWITCH
Press the ignition switch, the engine should be
started smoothly without abnormal noises.
Note: This switch will be inoperative after engine
startup.
EMERGENCY STOP BUTTON
1. Push in the emergency stop button on platform
controller to OFF position, and press the engine
start switch, the engine should not be started and
all functions are inoperative.
2. Pull out the emergency stop buttons on ground
and platform controllers to ON position, and press
the engine start switch, the engine can be
normally started.
3. With the emergency stop button on ground
controller in OFF position and the one on platform
controller in ON position, press the engine start
switch, the engine should not get started and all
functions are inoperative.
GLOW PLUG SWITCH
Press the glow plug switch and hold it for 6-10s, the
engine should take in air for preheating.
Note:
An electrically-controlled engine can be preheated
automatically.
HORN BUTTON
Press the horn button, the horn should sound.
