PRE-OPERATION FUNCTION TEST
1323RD&1623RD Operation Manual 6-15 © Mar. 2022

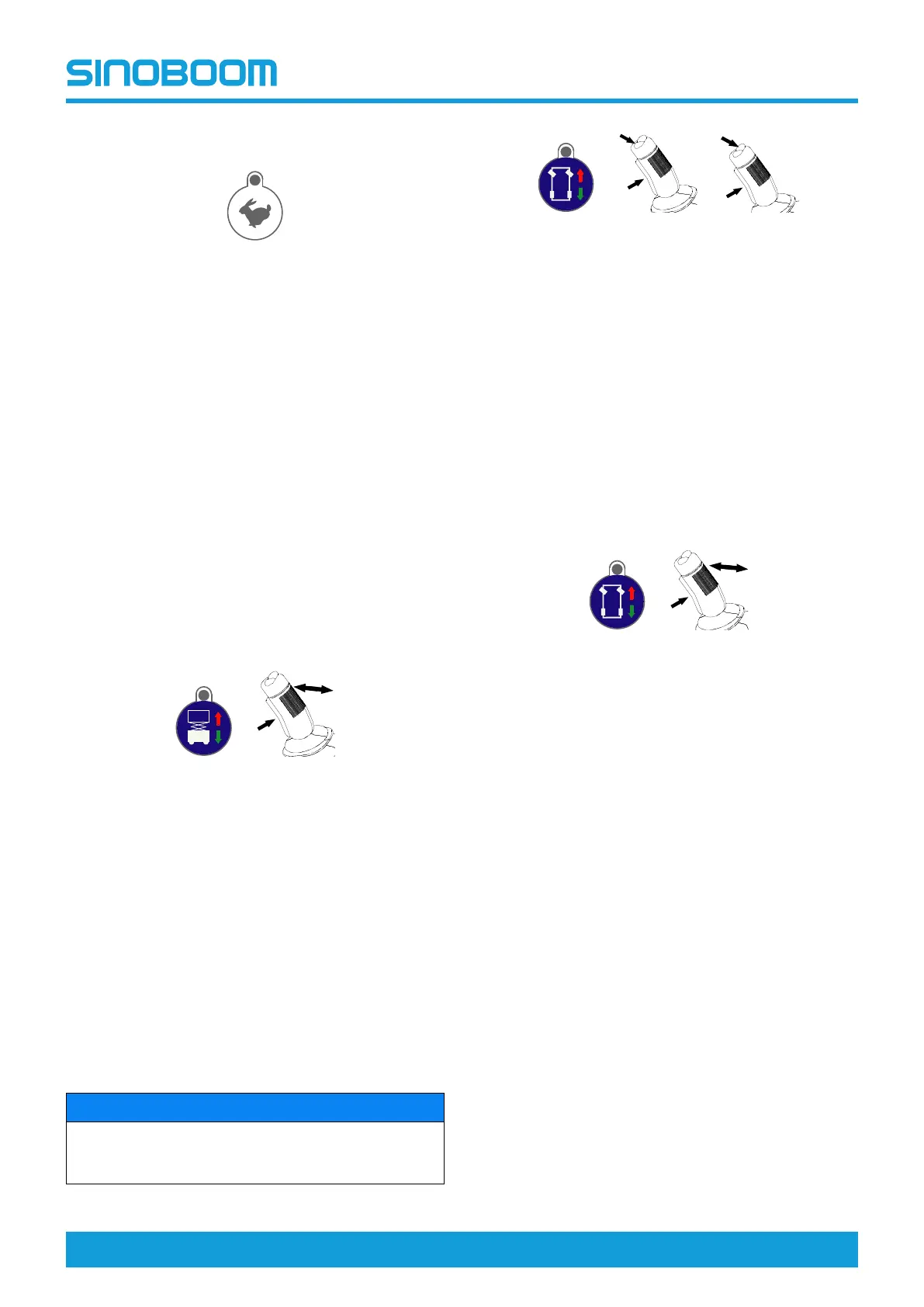

ENGINE SPEED SELECT SWITCH
• For machines equipped with a China Stage III
engine: press the engine speed select switch, the
indicator light should flash at an interval of 1s, and
the engine is at high idle speed. Release the
engine speed select switch, the indicator light
should go off, and the engine is at low idle speed.
• For machines equipped with a China Stage IV
engine: press the engine speed select switch, the
indicator light should be lit, and the engine is at
high idle speed. Release the engine speed select
switch, if the machine is performing any
operations, the indicator light should flash and the
engine should run at the set speed; if the machine
is not performing any operations, the indicator
light should go out, and the engine runs at low idle
speed.
Note: The engine is defaulted at low idle speed.
PLATFORM UP/DOWN FUNCTION
1. Start the engine.
2. Press the platform up/down enable switch, the
indicator light should be lit and the lift mode is
activated.
3. Hold the joystick enable switch and slowly push
forward the joystick, the platform should rise.
4. Hold the joystick enable switch and slowly pull
backward the joystick, the platform should be
lowered with the lowering alarm sounding.
Note: The raising/lowering speed is in direct
proportion to the stroke of the joystick.
STEER THUMB ROCKER SWITCH
NOTICE
When testing the steer/drive functions, the operator
should stand in the platform facing towards the
machine steer direction.
1. Press the drive & steer enable switch, the
indicator light should be lit, and the drive & steer
control mode is activated.
2. Hold the joystick enable switch and press the
steer thumb rocker switch on the left, the wheel
should steer left.
3. Hold the joystick enable switch and press the
steer thumb rocker switch on the right, the wheel
should steer right.
Note: The steering speed is in direct proportion to
the stroke of the joystick.
DRIVE SWITCH
1. Press the drive & steer enable switch, the
indicator light should be lit, and the drive & steer
control mode is activated.
2. Hold the joystick enable switch and slowly push
forward the joystick, the machine should drive
forward.
3. Release the joystick, the machine should come to
an immediate stop.
4. Hold the joystick enable switch and slowly pull
backward the joystick, the machine should drive
reverse.
5. Release the joystick, the machine should come to
an immediate stop.
Note: The drive speed is in direct proportion to the
stroke of the joystick.
