PRE-OPERATION FUNCTION TEST
1323RD&1623RD Operation Manual 6-13 © Mar. 2022
OUTRIGGER LEVELING
1. Press the outrigger self-leveling switch, and hold
the joystick enable switch and slowly deflect
backward the joystick.
2. The outriggers should extend to stand on the
ground and level the machine, and the switch
should be lit when the machine is level.
3. Press the individual outrigger leveling switch, and
hold the joystick enable switch and slowly deflect
forward the joystick.
4. The respective outrigger should retract.
5. Press the individual outrigger leveling switch, and
hold the joystick enable switch and slowly deflect
backward the joystick.
6. The respective outrigger should extend, and the
switch should be lit when the outriggers stand on
the ground.
TESTING THE PLATFORM
CONTROLLER (SINOBOOM
CONTROL SYSTEM)
NOTICE
All tests on the platform controller should be
completed in one cycle.

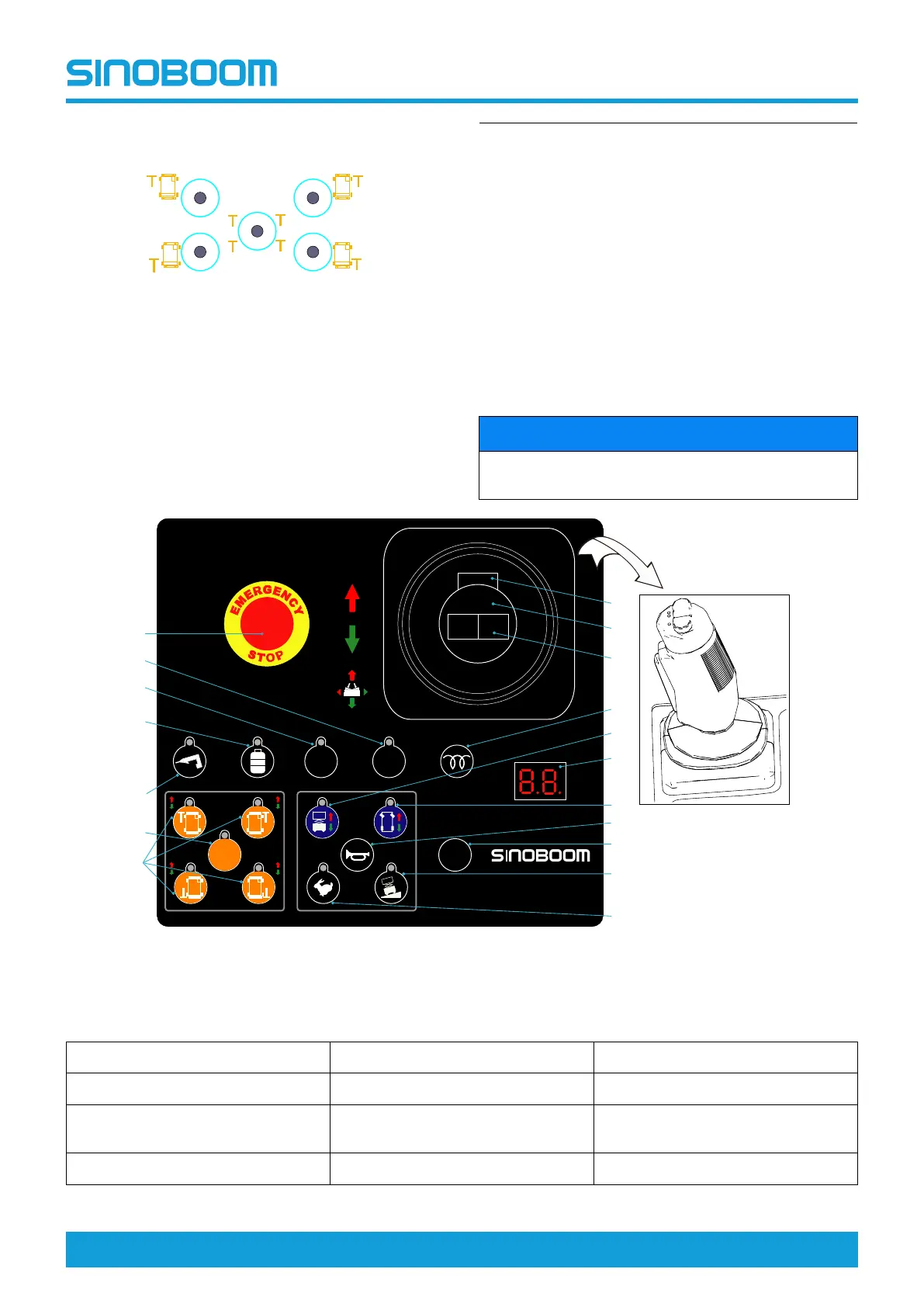

Figure 6-6 Platform controller (Sinoboom control system)
Table 6-6
1. Individual outrigger level switch 7. Emergency stop button
13. LED screen
2. Outrigger self-level switch
8. Enable switch 14. Drive & steer enable switch
3. Hydraulic generator switch (not
used)
9. Drive/lift proportional control
joystick
15. Horn button
4. Natural gas switch (not used)
10. Steer thumb rocker switch
16. Ignition switch
T T
F1 F2
AUTO AUTO AUTO
POWER
1
2
3
4
7
8
9
10
11
13
12
14
15
16
17
18
5
6
