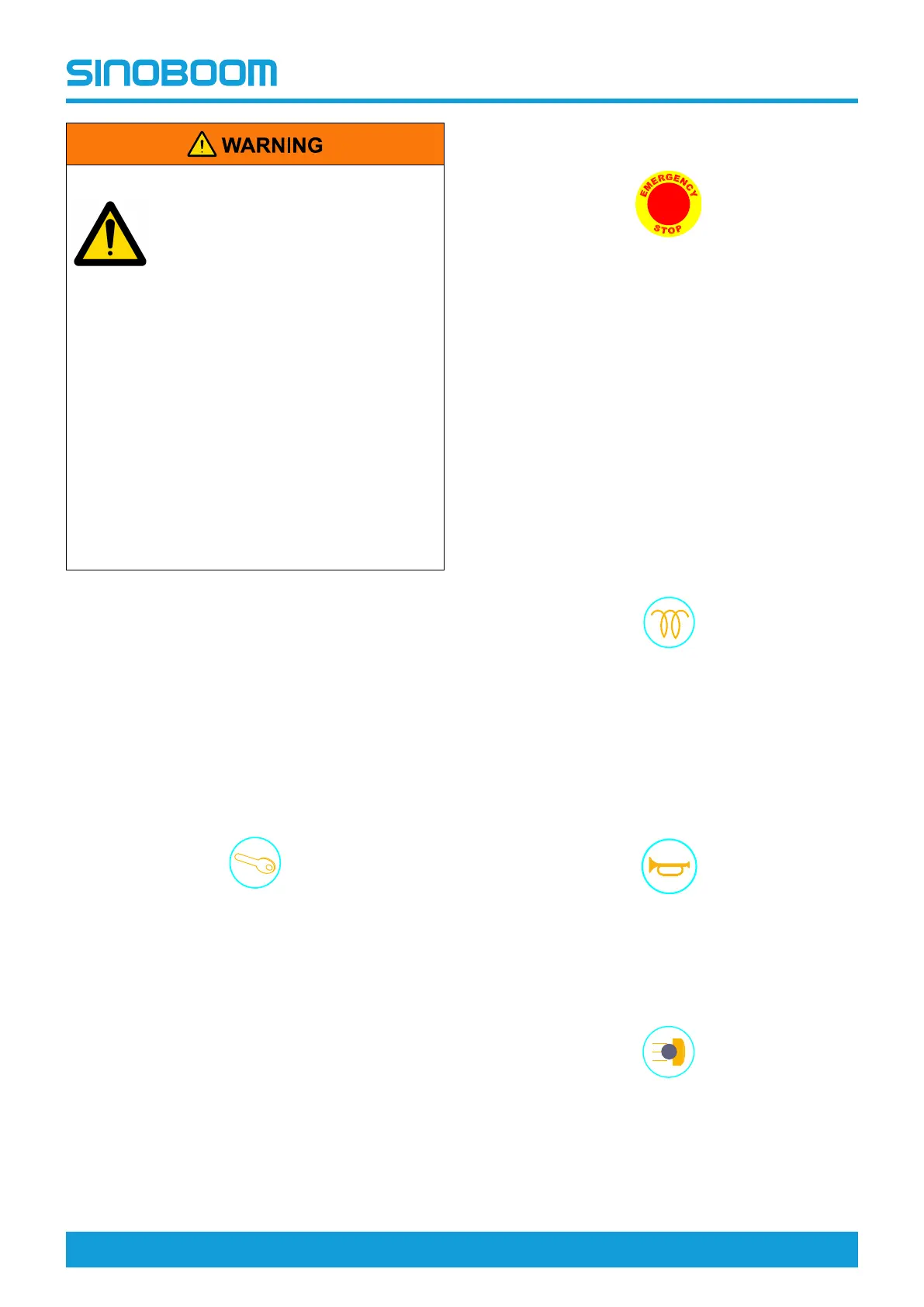

PRE-OPERATION FUNCTION TEST
1323RD&1623RD Operation Manual 6-11 © Mar. 2022
UNSAFE OPERATION HAZARD
• Unless in emergency situations,
never operate the machine from
the ground controller if there is
still any person on the platform.
• Never operate the machine if any
control handle or switch that
controls the platform movement
is not returned to the OFF position
after being released.
• Platform controller joysticks of
different brands can’t be used to
replace each other, otherwise the
machine may be damaged or
safety accidents may occur.
• To avoid severe personal
accidents and deaths, never
remove or alter the foot switch (if
equipped) or disable it with blocks
or any other means.
PREPARATION
1. Select a firm, level test surface free of
obstructions.
2. Turn the Ground/Platform select switch on ground
controller to Platform position.
ENGINE START SWITCH
Press the engine start switch, the engine should be
started smoothly without abnormal noises.
Note: The switch shall be inoperative after the engine
is started.
EMERGENCY STOP BUTTON
1. Push in the emergency stop button on platform
controller to OFF position, and press the engine
start switch, the engine should not be started and
all functions are inoperative.
2. Pull out the emergency stop buttons on ground
and platform controllers to ON position, and press
the engine start switch, the engine can be
normally started.
3. With the emergency stop button on ground
controller in OFF position and the one on platform
controller in ON position, press the engine start
switch, the engine should not get started and all
functions are inoperative.
ENGINE PREHEAT SWITCH
Press and hold the engine preheat switch for 6–10s,
the engine should take in air for preheating.
Electrically-controlled engines can be preheated
automatically.
HORN BUTTON
Press the horn button, the horn should sound.
LIGHTING SWITCH (OPTIONAL)
Press the lighting switch, the switch should be lit and
the lighting turns on.
∅52
∅22
∅35
∅55
4X ∅7
∅12.5
R2.5
∅22
4XR6
235
98
78
220
4065
57.540.5
11.2
7.5
1
2
3
4
5
6
7
1
2
3
4
5
6
7
