PRE-OPERATION FUNCTION TEST

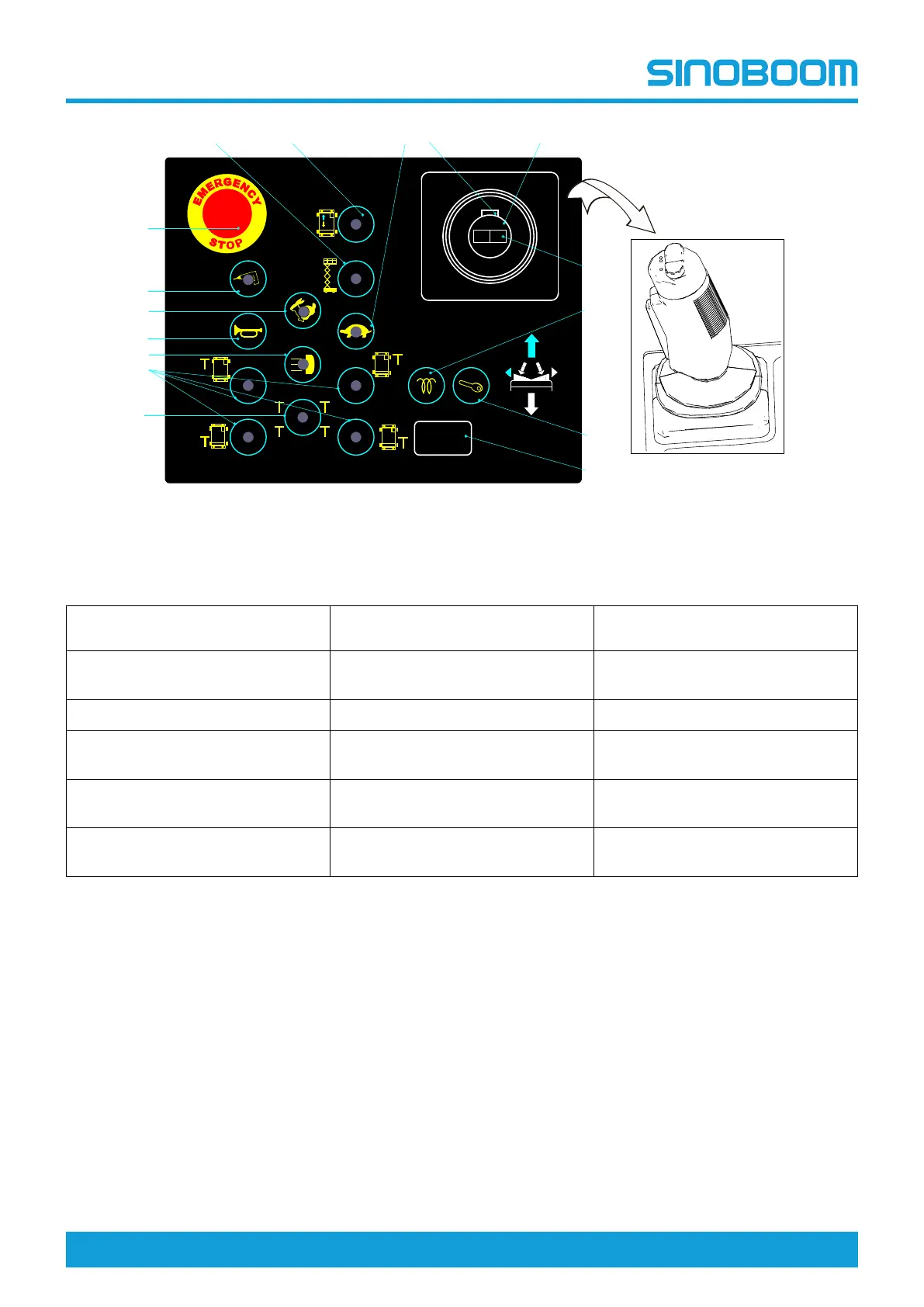

Figure 6-5 Platform controller (DTC system)
Table 6-5
1. Individual outrigger leveling
switch
7. Emergency stop button
13. Steer thumb rocker switch
2. Outrigger self-leveling switch
8. Platform lift switch (with indicator
light)
14. Glow plug switch
3. Lighting switch (optional) 9. Drive switch (with indicator light) 15. Engine start switch
4. Horn button
10. Drive speed select switch (with
indicator light)
16. LCD screen
5. Engine speed select switch (with
indicator light)
11. Enable switch
6. Hydraulic generator switch (with
indicator light, if equipped)
12. Drive/lift proportional control
joystick
1
2
3
4
6
8
5
9
10 11
13
12
14
15
16
7
