PRE-OPERATION FUNCTION TEST

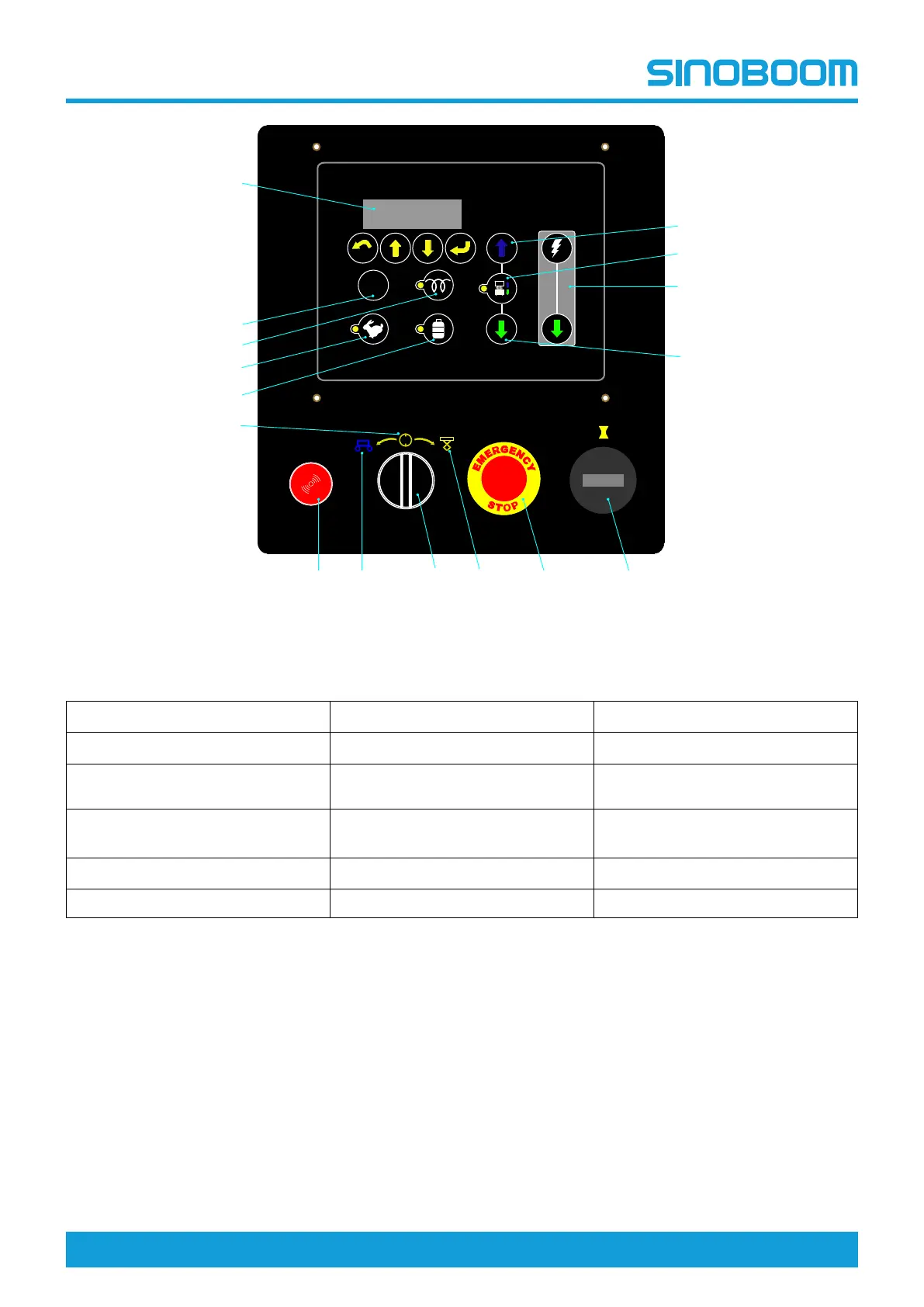

Figure 6-3 Ground controller (Sinoboom control system)
Table 6-3
1. Hour meter
7. Neutral position 13. Platform up switch
2. Emergency stop button 8. Natural gas switch (not used) 14. Platform up/down enable switch
3. Platform control position 9. Engine speed select switch
15. Emergency lowering
combination switch
4. Key switch (Ground/Platform
select switch)
10. Glow plug switch
16. Platform down switch
5. Ground control position 11. Ignition switch
6. Buzzer 12. LED screen
