Operation instructions
SIPOS SEVEN ECOTRON
Page 34 Y070.301/EN
5 Commissioning
5
Commissioning
Normal
for travel and torque-dependent cut-off mode,
the actuator runs
■
from the end position at the lowest speed,
approx .1 sec. (g. 1: curve a), to change to
the end position speed, refer to b;
■
after the end position range with the set
speed. This speed is usually higher than the
end position speed (curve c). It can also be
set lower, refer to curve d.
■
to the end position with the “normal“ end posi-
tion speed (e).
Quick start
Leaving the end position:
■
For travel-dependent cut-off, it will be imme-
diately changed to the set speed to keep the
runtime as short as possible. Refer to g. 2,
curve a.
■
For torque-dependent cut-off, the end
position is left at the lowest possible speed
for approx. 1 sec. prior to changing to the set
speed; refer to curve b.
The speed can however be lower than the end
position speed, refer to curve c.
Approaching the end position:
Shortly before reaching the end position range
(independent of the cut-off mode), the speed will
be reduced to the end position speed as for the
“Normal” setting.
Quick start/stop
Leaving the end position is identical to ’Quick
start‘ setting.
Approaching the end position:
■
For travel-dependent cut-off, the speed will
be reduced shortly before reaching the end
position so that the actuator is at standstill;
refer to g. 3, curve a.
■
For torque-dependent cut-off, the speed will
still be changed to the end position speed
before actually reaching the end position
range to avoid excessive torque and potential
damage to the valve, refer to curve b.
End position speed “Normal” is set in the factory.

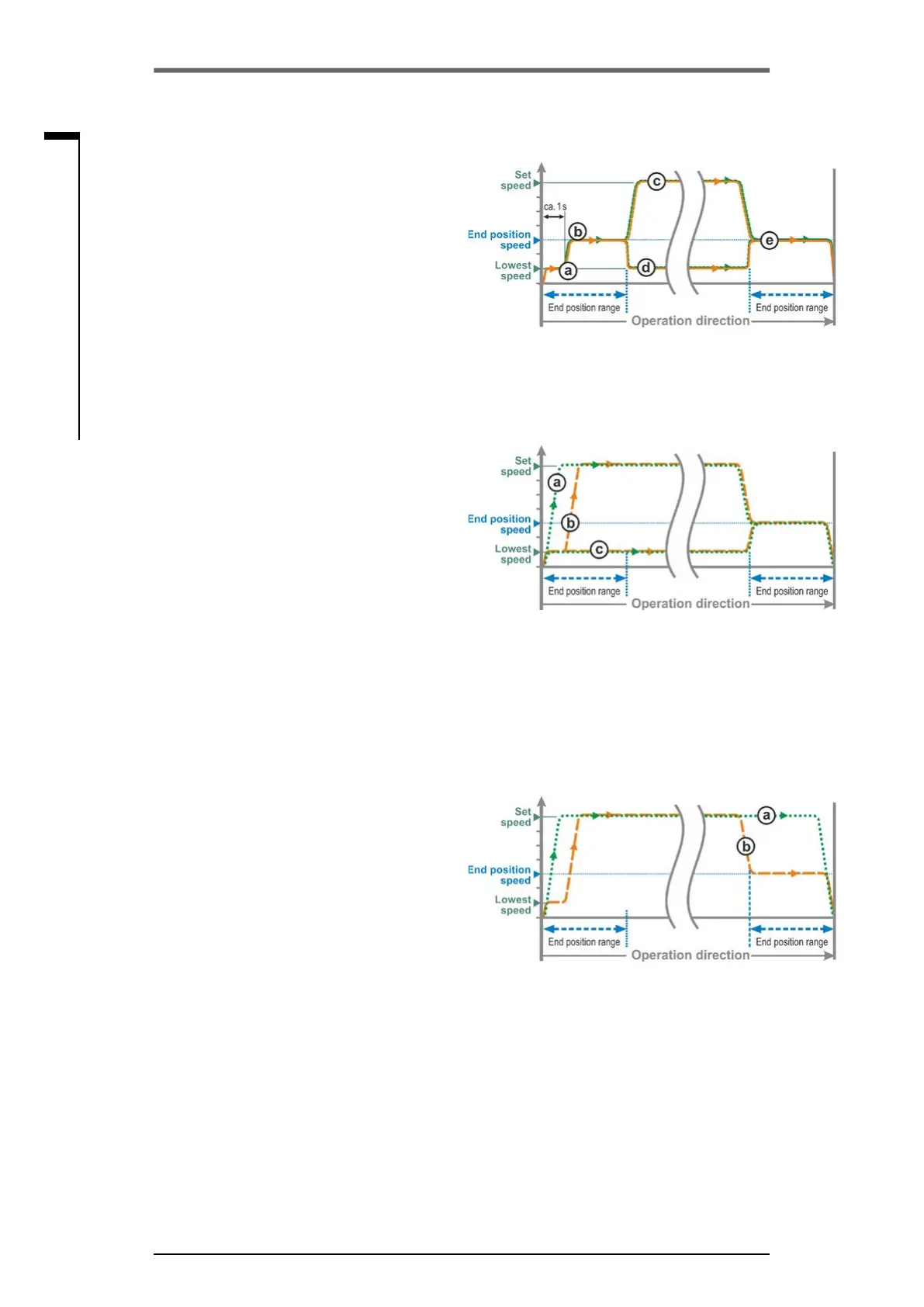

Fig� 1: End position speed ’Normal‘
Fig� 2: End position speed ’Quick start‘
Fig� 3: End position speed ’Quick start/stop‘
