Sirona C2+ - Installation with Motor-Driven Headrest

6 Installation with Motor-Driven Headrest Sirona Dental Systems GmbH
59 58 470 D 3370
10 D 3370.031.01.10.02

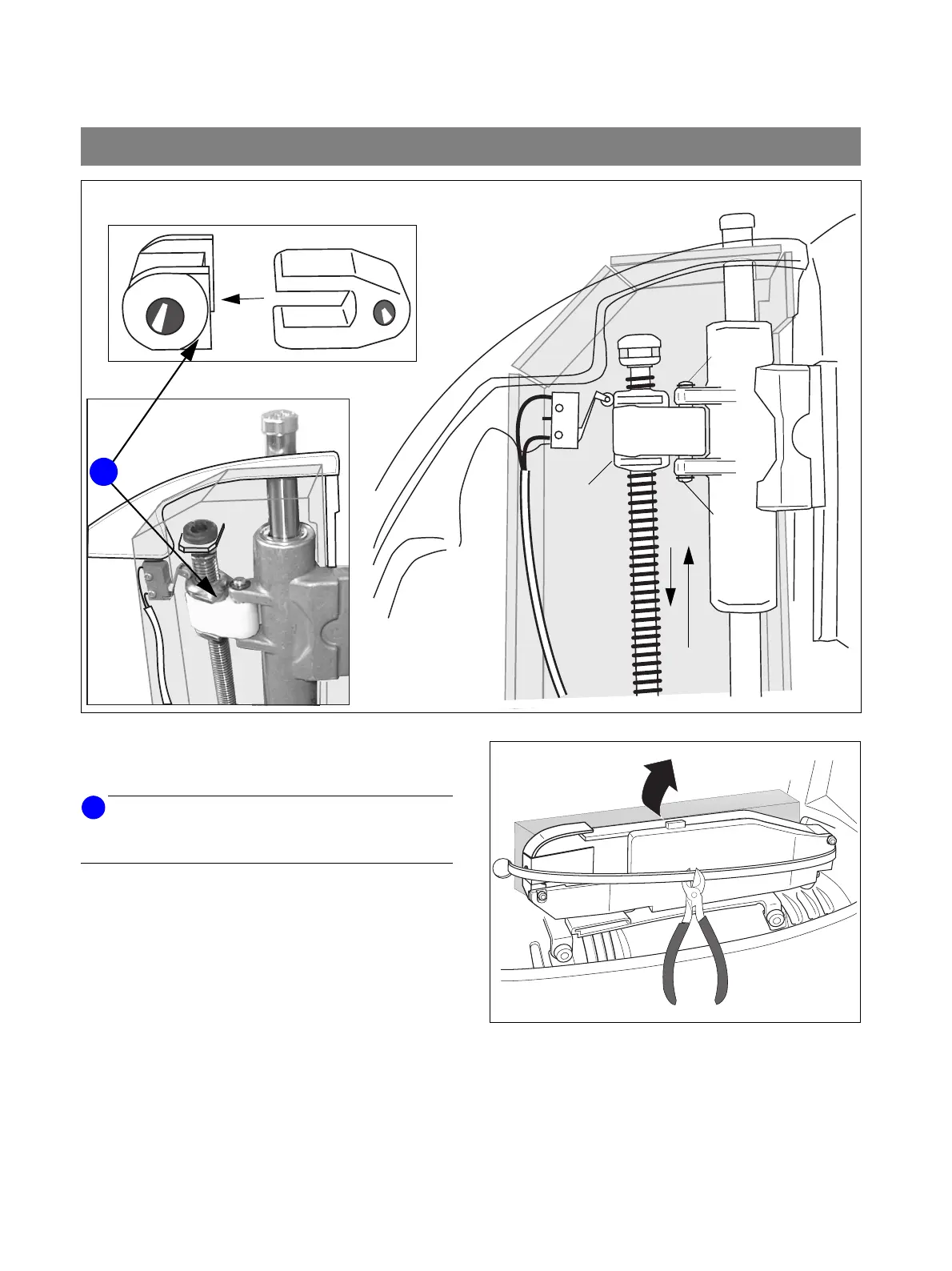

1. Remove retaining ring S from driving pin F and pull the
pin out.
2. Place fork D on spindle nut E.
NOTE
i
Make sure spindle nut E is properly positioned!
Flat end of spindle nut facing fork D!
3. Insert fork D in the slide of headrest G.
4. Insert driving pin F from below and secure it with retain-
ing ring S.
5. Remove cable ties.
6. Remove the (styrofoam) transport safety device.
6 Installation with Motor-Driven Headrest
D
D
E
E
2.
1.
S
F
4.
G
3.
i
5.
6.
