Sirona C2+ - Demonstration Unit Without Water Connection

Sirona Dental Systems GmbH 34 Demonstration Unit without Water Connection
59 58 470 D 3370
D 3370.031.01.10.02
47
båÖäáëÜ

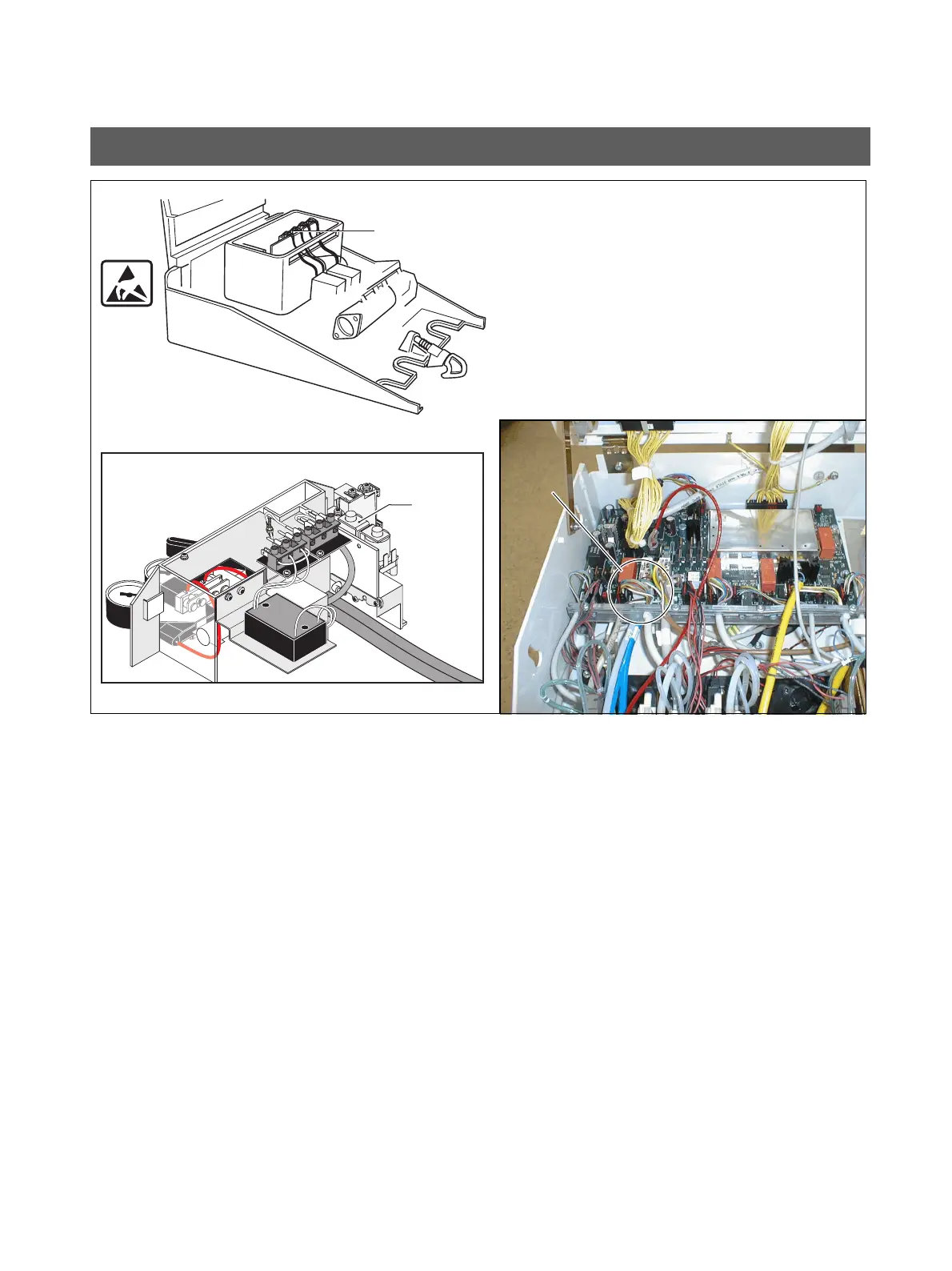

1. Unplug connector X5 of SPRAYVIT power supply leads
from dentist element (board ADX).
2. Unplug connector X5 of SPRAYVIT power supply leads
from assistant element (board HP).
3. For water unit with disinfection system only:
Strip and insulate the electric cables in the chair at so-
lenoid valve MV1.
34 Demonstration Unit without Water Connection
gn/ge
L
N
gn/ge
L
N
X5
MV1
1.
2.
3.
X5
Ass. el.
Dent. el.
