Sirona Dental Systems GmbH 7 Connection of Motor-driven Headrest
59 58 470 D 3370
D 3370.031.01.10.02
11
båÖäáëÜ

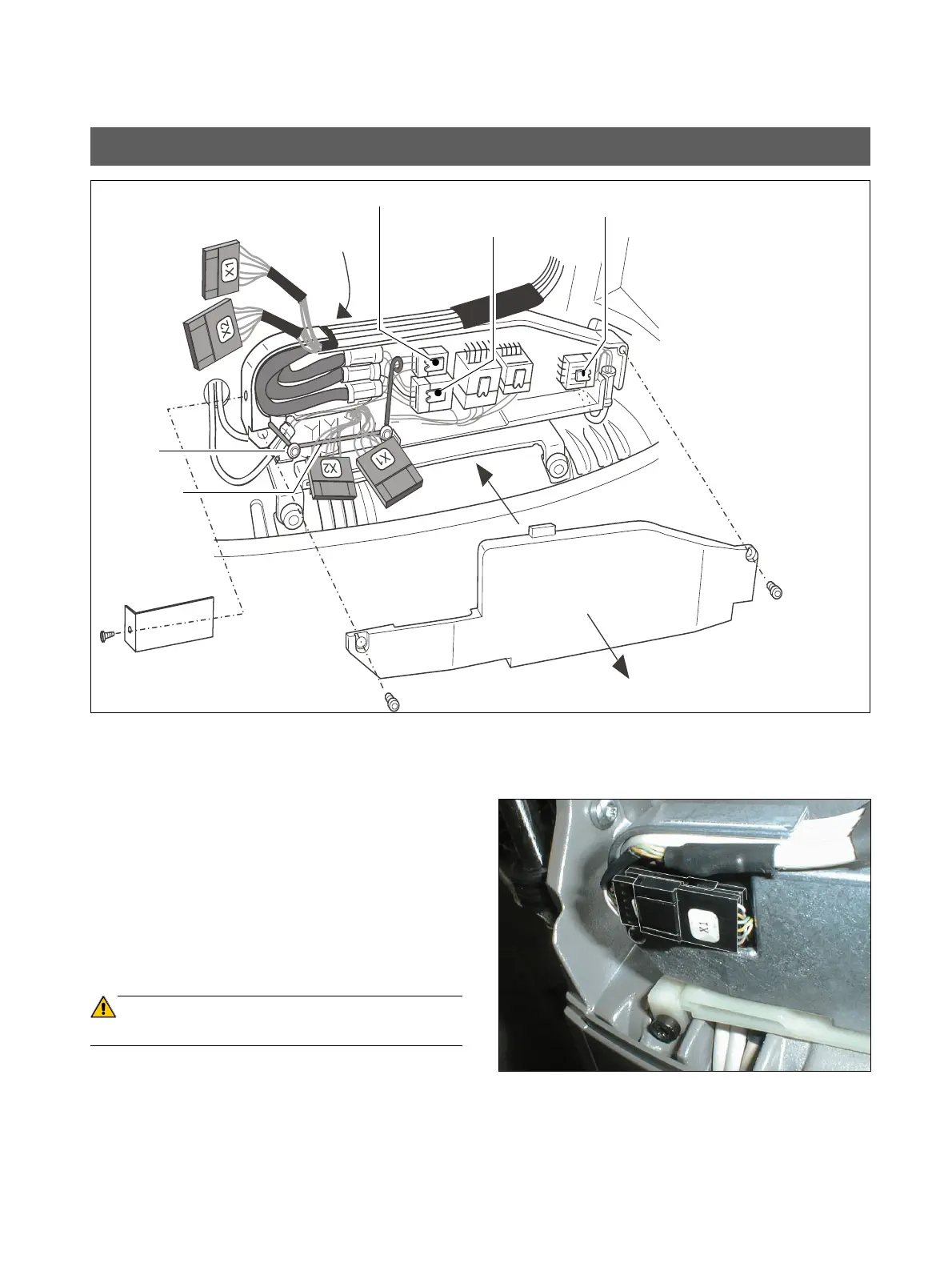

1. Unscrew cover M.
Undo two screws on the distributor housing and remove
cover V.
2. Loosen screws G.
Insert lead with connector X4 through hole H and run it
behind cable clip I to the board. Plug in connector X4.
3. Pass connector X5 through hole H and plug in.
4. Run tilt-part cables with connector X3 through guide L
to the board.
Plug in connector X3.
5. Retighten cable clip I with screws G.
6. Screw cover V of the distributor housing back on.
ATTENTION
Make sure all hexagon cable sleeves fit properly.
7. Interconnect connectors X1 and X2 (floating connec-
tion) and place them one after the other into the re-
cess.
8. Screw cover M back on guide L.
7 Connection of Motor-driven Headrest
H
G
X5
X4
I
L
1.
2.
4.
6.
3.
M
1. / 8.
X3
V
G
5.
7.
