Sirona Dental Systems GmbH 36 Reversing the Direction of the Travel Track
59 58 470 D 3370
D 3370.031.01.10.02
49
båÖäáëÜ
ATTENTION
Unplug the unit!

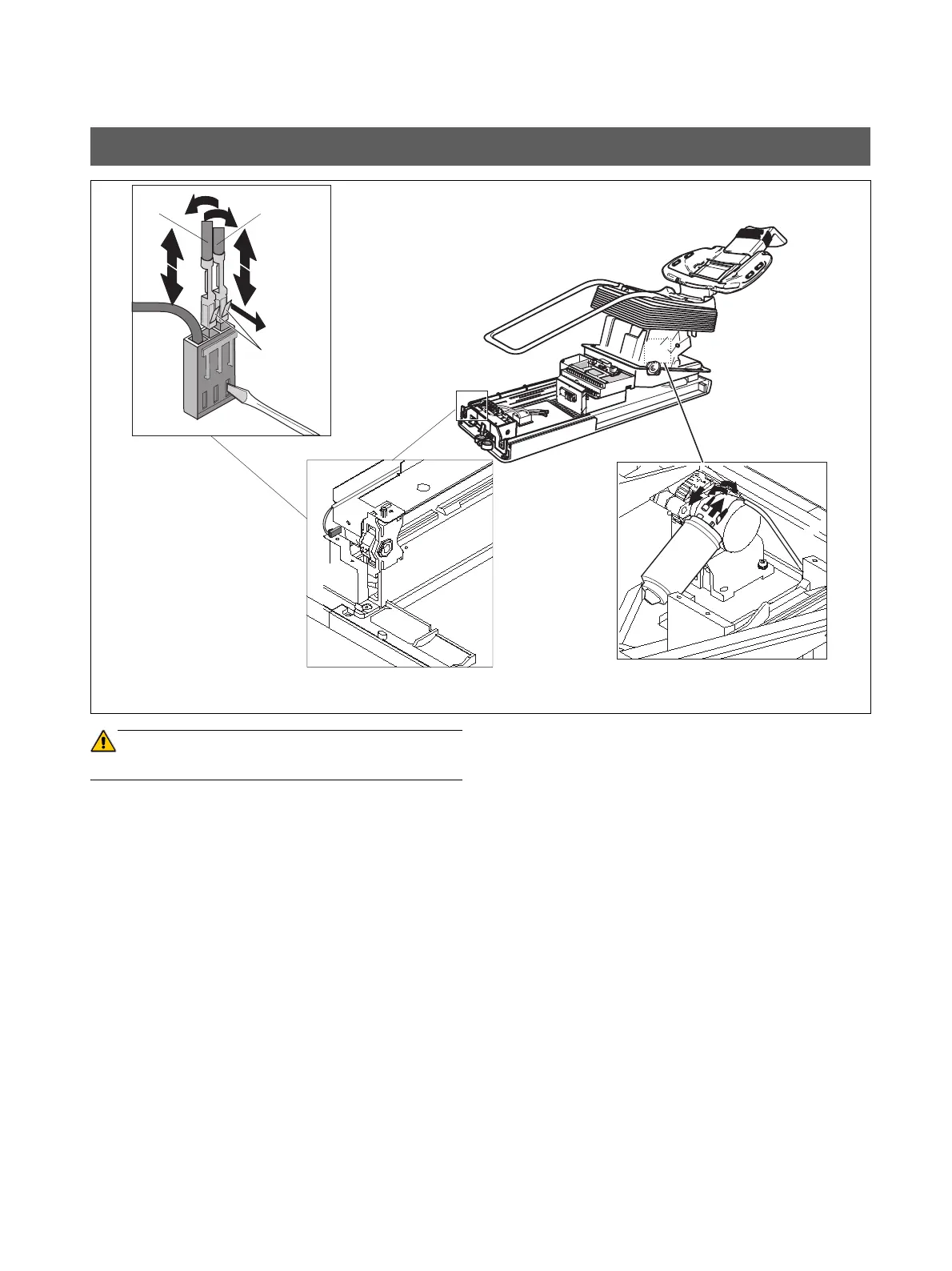

1. Pull off and swap the positions of the connectors for the
white and brown leads at the travel track drive (white in
place of brown and brown in place of white).
2. Pull off socket casing R6 from the reversing block.
3. Press lightly on spring clamp A on R6.1 and R6.2 and
detach the cores.
4. Press the spring clamps up slightly and attach the
cores again in reverse (white to R6. 2 and green to
R6.1).
5. Attach socket housing R6 again.
36 Reversing the Direction of the Travel Track
1
2
3
A
R6.2 R6.1
R6
1.
2.
3.
4.
5.
br
