Sirona C2+ - Adapting the Water Unit

Sirona Dental Systems GmbH 16 Adapting the Water Unit
59 58 470 D 3370
D 3370.031.01.10.02
21
båÖäáëÜ
1. Only if video option is installed:

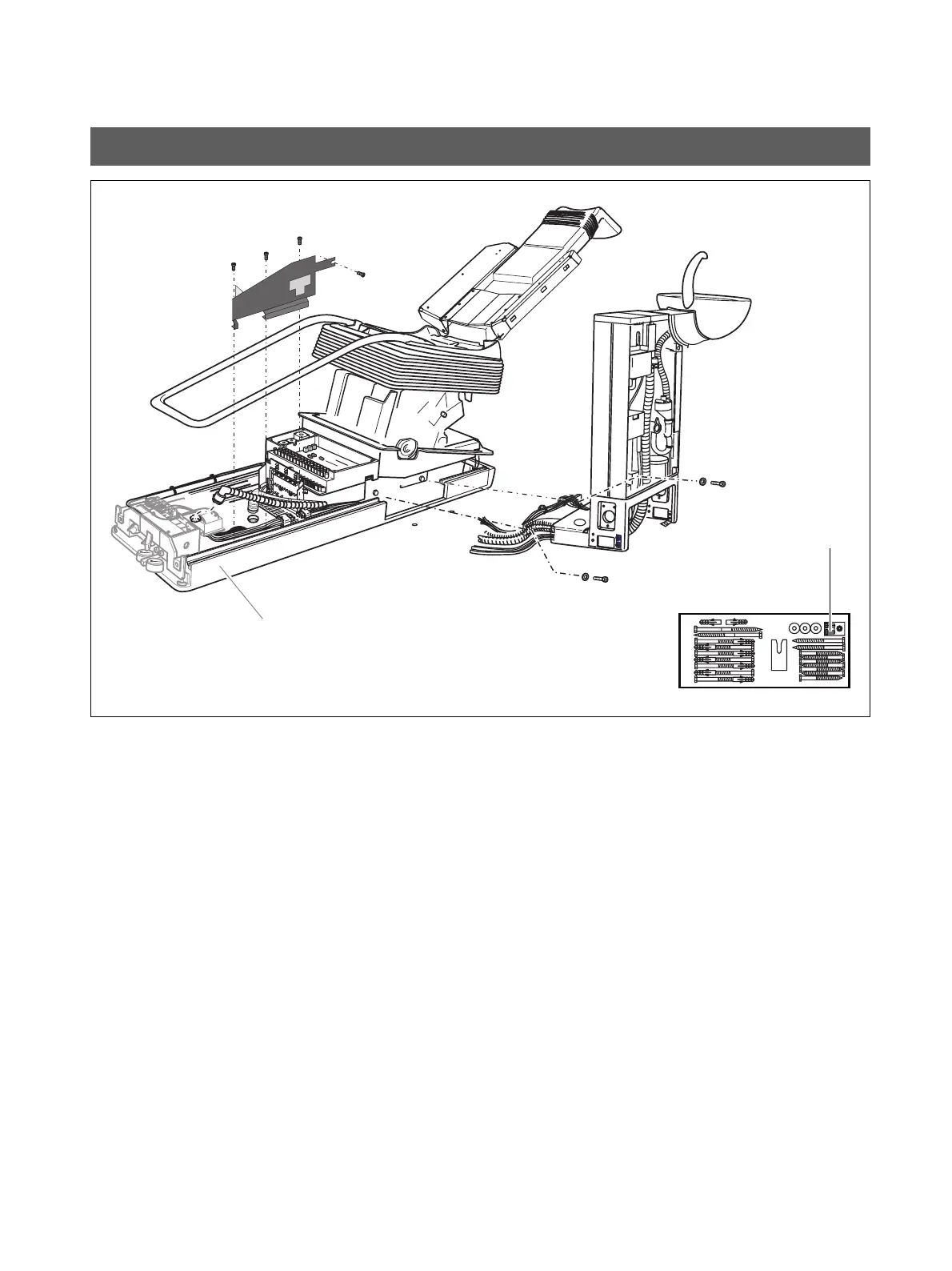

Remove cover A and unscrew the sheet metal support
for the video components (4 screws).
Lay suction and drain hoses through.
Then reattach cover A and the sheet metal support.
2. Fasten the water unit to the chair base with two screws
D (M8x20) and washers (do not tighten yet).
16 Adapting the Water Unit
58 71 848 D3370
58
71
848
D3370
D
D
2.
A
1.
1.
M8 screw (2x)
