Sirona C2+ - Fastening of the Chair to the Floor

13 Fastening of the Chair to the Floor Sirona Dental Systems GmbH
59 58 470 D 3370
18 D 3370.031.01.10.02

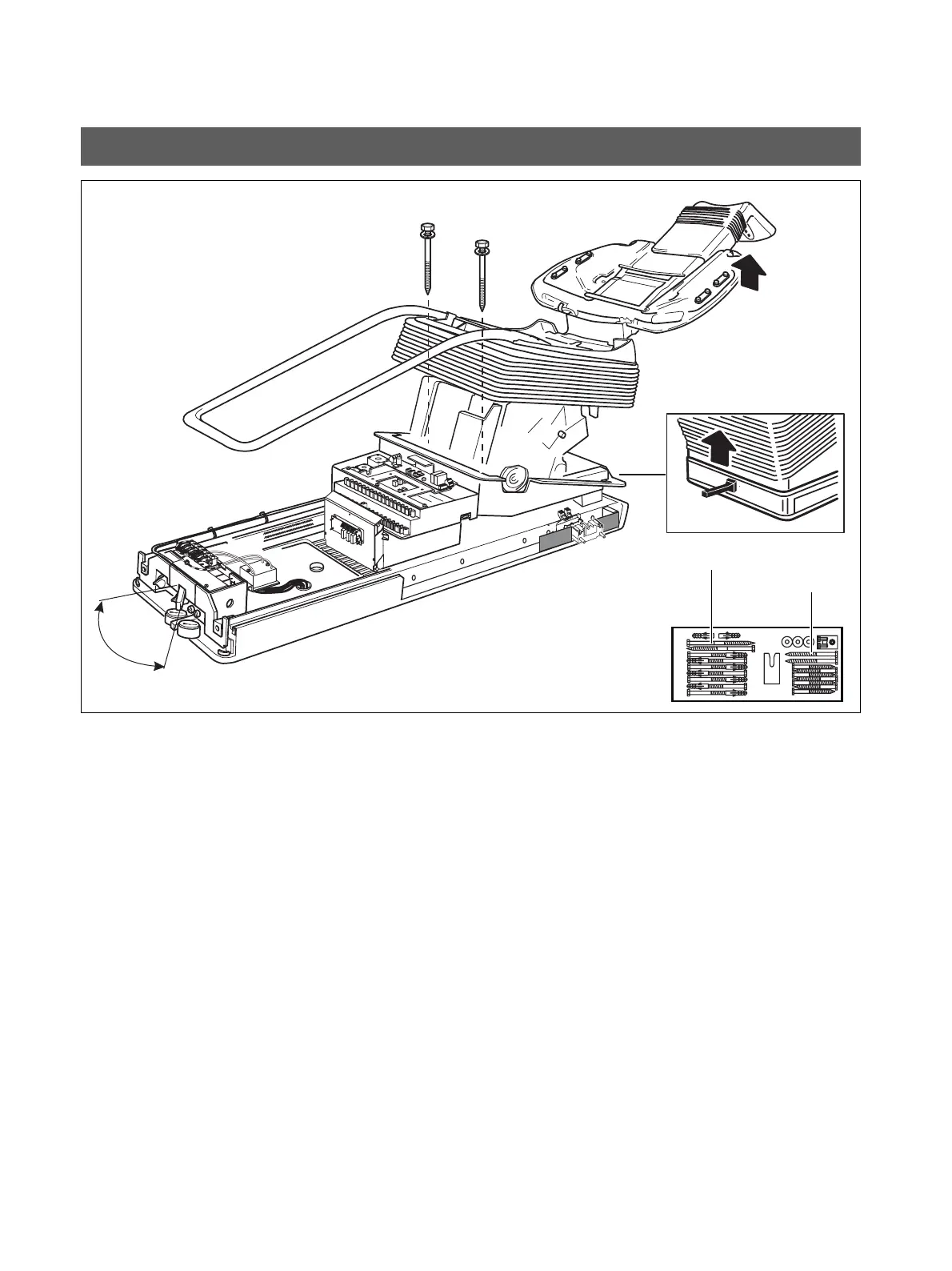

Fastening Points C and H
1. Switch on the main switch.
2. Let the chair travel upwards with the foot control. (Ob-
serve Operating Instructions!)
3. Fasten the chair to the floor with two wood screws and
washers.
– With a concrete floor:
Use 10 x 200 wood screws.
– With a wooden floor:
Use 10 x 110 wood screws.
– With the M1 adapter plate (refer also to page 42):
Use M 10 x 40
4. Switch the main switch off.
13 Fastening of the Chair to the Floor
58 71 848 D3370
58
71
848
D3370
1.
2.
3.
4.
C
H
10x200 (2 ea.)
10x110 (2 ea.)
