Version with and without disinfection system

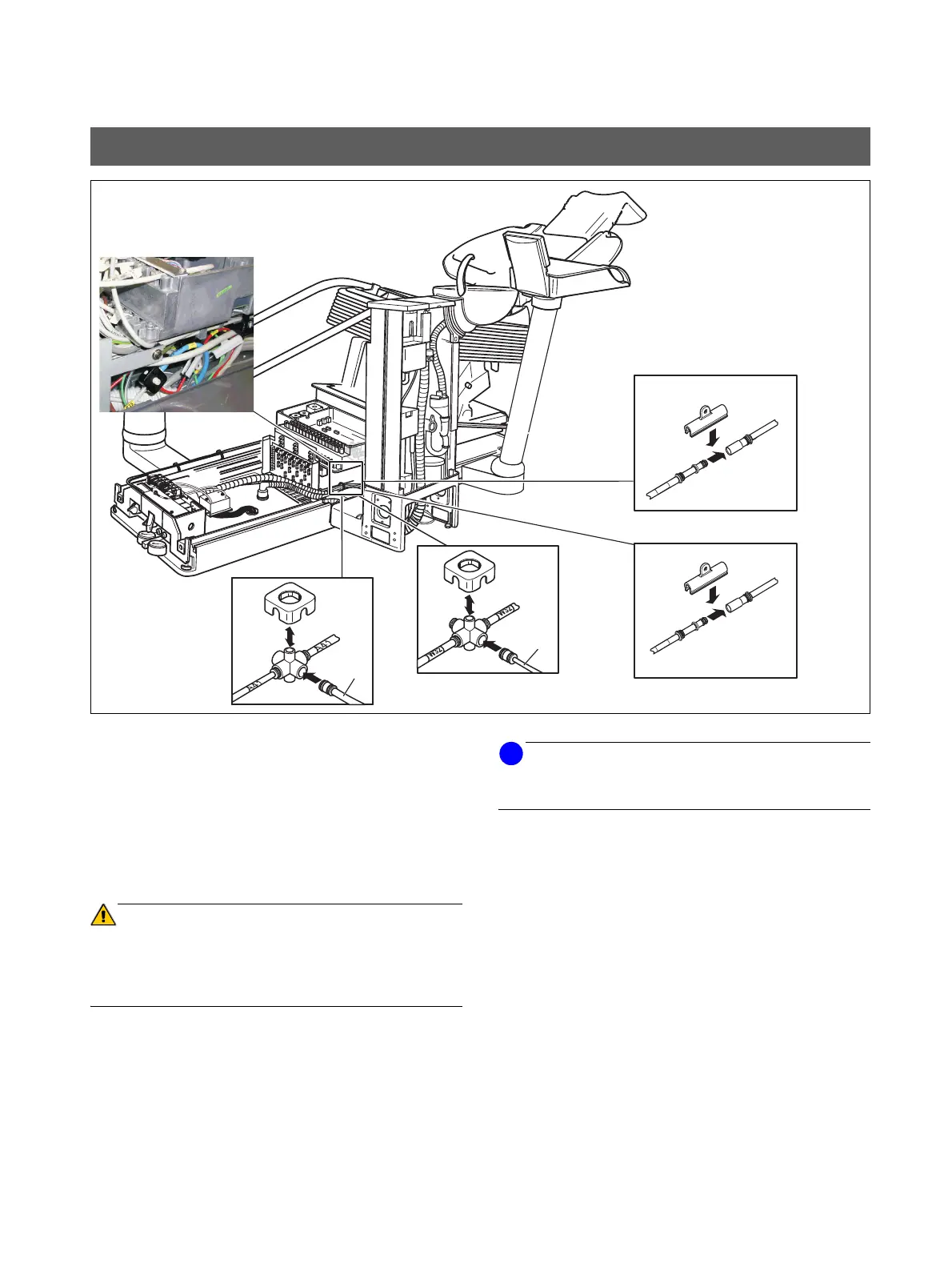

1. Pull the nipple holder off from the four-way manifold and
plug in the water hose W38 from the assistant element.
Refit the nipple holder.
2. Pull the nipple holder off from the three-way manifold
and plug in the air hose A39 from the assistant element.
Refit the nipple holder.
ATTENTION
Make sure that the nipple holder is firmly seated in the guide
grooves of the hose nipples. Check by pulling on the nip-
ples.
Stow the manifolds in the rear bottom area.
3. Attach the nipple of the hose W43 to its matching coun-
terpart.
Snap on the safety clip.
4. Attach the nipple of the hose A34 to its matching coun-
terpart.
Snap on the safety clip.
NOTE
i
Step 4. also applies to MV33 in combination with a wet suc-
tion system.
5. Arrange the hose connections below the fuse box as il-
lustrated.
19 Assistant Element: Making Hose Connections
1.
2.
4.
A41
A41
W32
W32
5.
3.
A39
W38
W43
W43
A34
A34
