Sirona C2+ - Concluding Work

Sirona Dental Systems GmbH 23 Concluding Work
59 58 470 D 3370
D 3370.031.01.10.02
31
båÖäáëÜ
NOTE
i
To make the installation easier, the patient chair can be
moved up a little (see Operating Instructions).

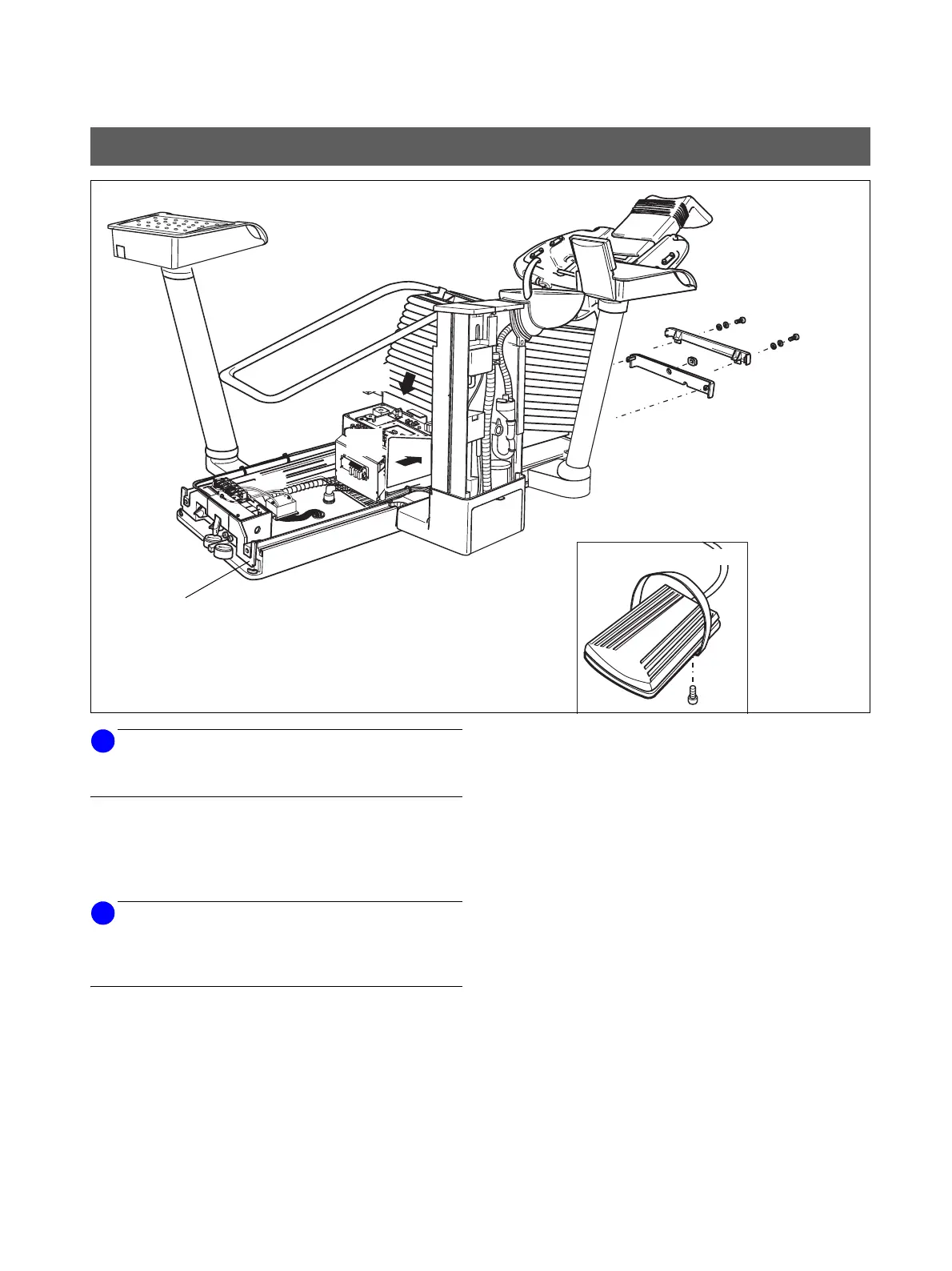

1. Install the bellows:
Pull lower part of bellows over cast-metal frame and
press it on with form-fit.
2. Slide in side housing covers.
NOTE
i
Make sure that the housing bearing with the correct serial
number is installed. For comparison purposes, check the
serial number that is affixed to point S.
3. Use two screws and washers to screw on upper cover
plate.
4. Plug on faceplate.
Attach the bellows to the foot control.
5. When using foot switch C:
Screw on retaining bow of foot switch with two screws.
23 Concluding Work
1.
2.
3.
4.
5.
Foot switch C
S
