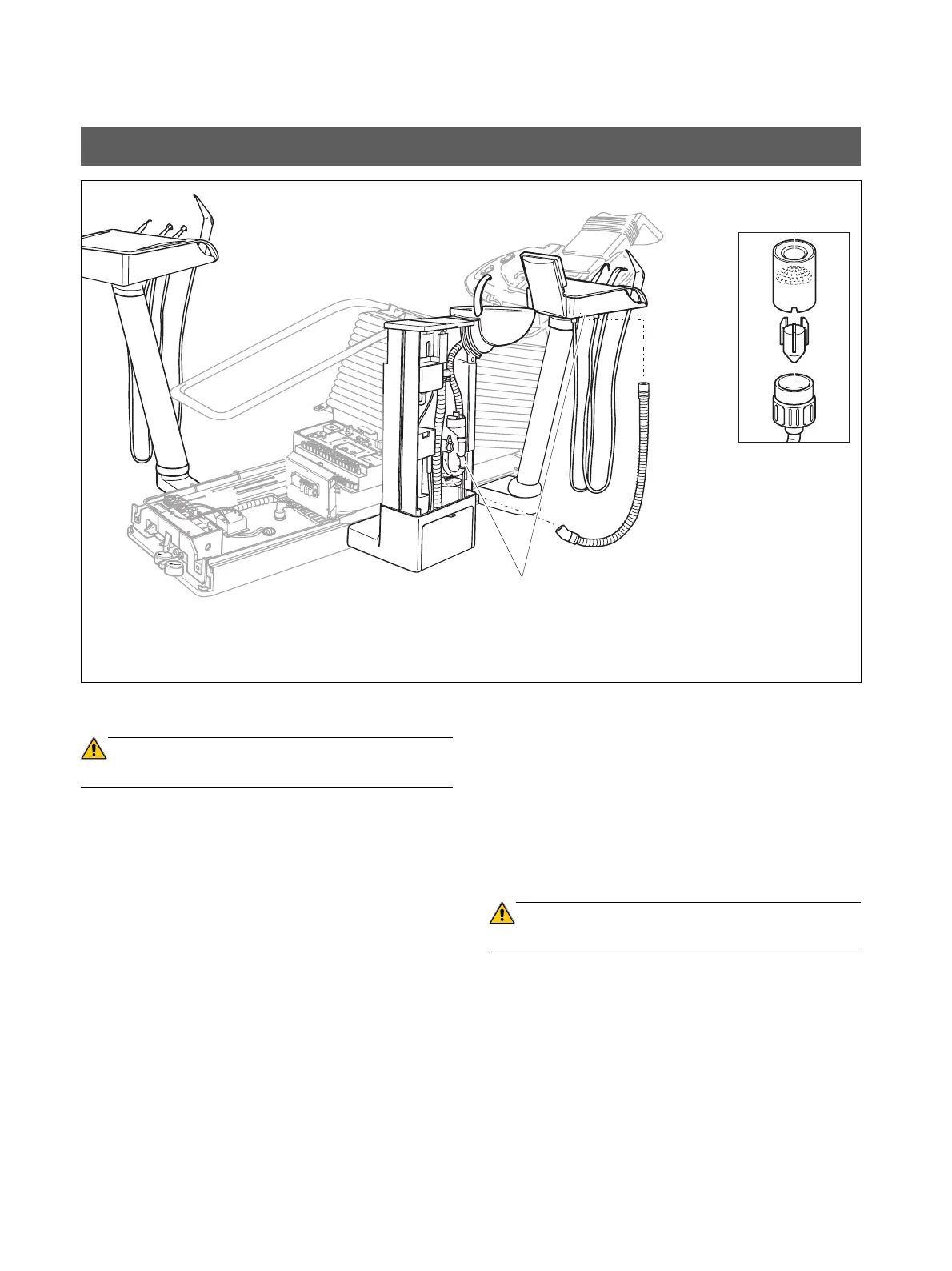

6. Fit the instrument hoses on the dentist element (ac-
cording to order) from the left to the right:
ATTENTION
Observe the reversal protection on the hose couplings!
– Plug on and screw down the hose for SPRAYVIT.
– Plug on and screw down the handpiece hoses for
the highspeed handpiece and motor.
– Plug on and screw down the hose for the Mini
L.E.D. or SIROSONIC L.
– Plug on and screw down the hose for the Mini
L.E.D. or
the connecting cable for SIROTOM and fasten with
screws or
plug the video camera into the rear panel of the
dentist element.
– Attach the corresponding handpieces.
7. Fit the instrument hoses on the assistant element (ac-
cording to order) from the left to the right:
– Plug in the Mini L.E.D. or the hose for surgical
suction or SIROCAM 3 / C.
– Plug on and screw down the hose for SPRAYVIT.
– Plug on the suction hose with the upper part of the
filter.
– Plug the saliva ejector hose with the upper part of
the filter onto the connecting piece.
– Attach the corresponding handpieces.
ATTENTION
Observe the reversal protection on the hose couplings!
8. Attach the connecting hose to the water unit and assis-
tant element.
6.
7.
8.
7.
Grease SYNTHESO
PRO AA2
