Sirona Dental Systems GmbH 17 Water Unit: Making Connections
59 58 470 D 3370
D 3370.031.01.10.02
23
båÖäáëÜ
NOTE
i
If the drain pipe is in an unfavorable position (such as termi-
nation panel M1), the drain hose can be moved as illustrat-
ed.

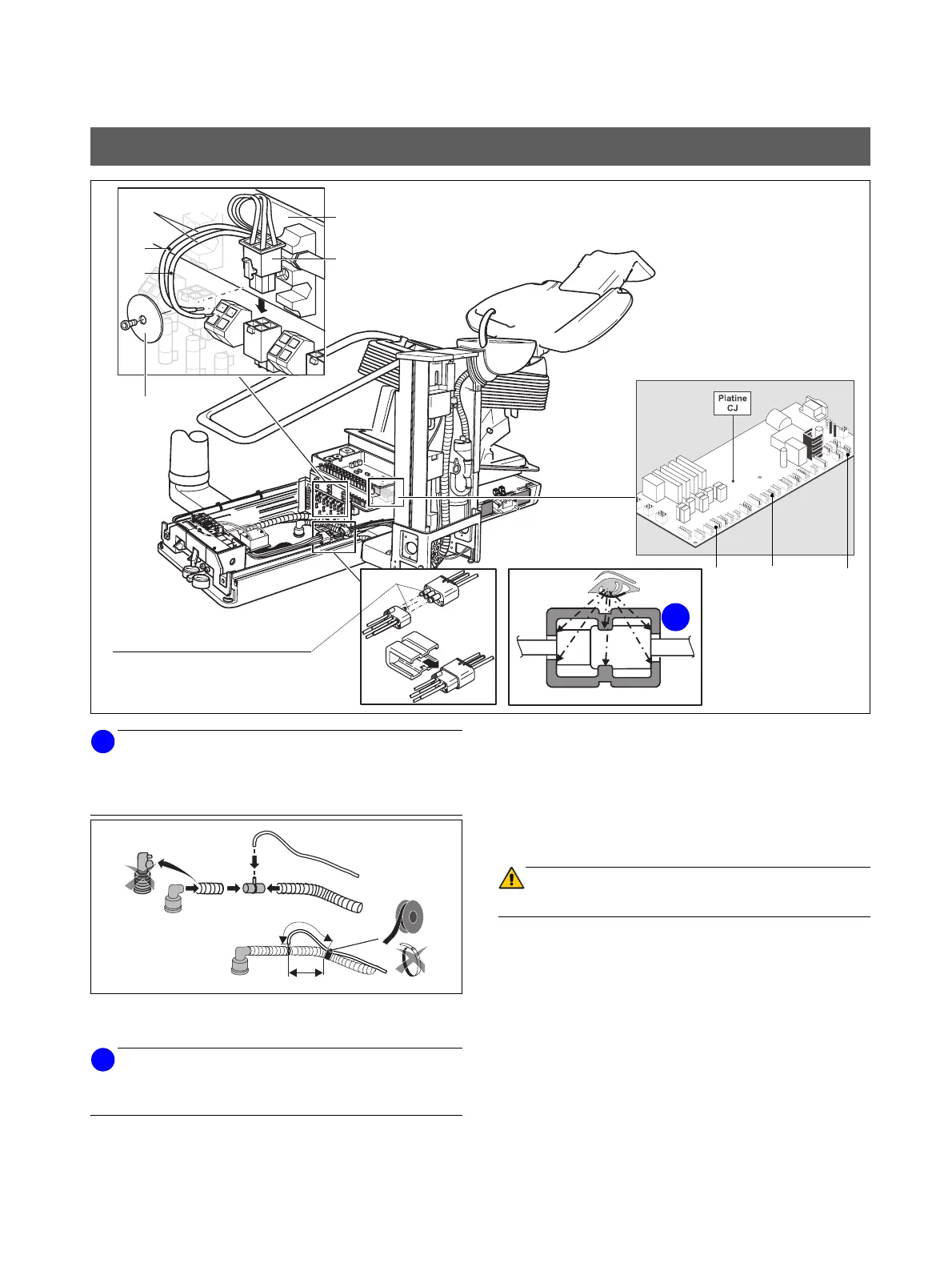

1. Connect both connector pieces and supply hoses to-
gether and secure them with a clamp.
NOTE
i
The fronts of the connector pieces must be firmly enclosed
by the clip and the clip must engage.
2. Connector X33:
Insert cable sleeve of electrical lead into correspond-
ingly marked recess of terminal box. Plug in connector.
3. Connector X7 and cable X1:
Plug connector X7 into fuse board CF.
Connect gray (GY) cable onto X1.1 (board CF) and pink
(PK) cable onto X1.2.
ATTENTION
Make sure you connect the cables the right way around.
4. Insert cable through recess in fuse box and fasten with
washer A.
5. Remove connector housing X8 (jumper with marking
tag) from board CJ. Plug in connector housing X8 of
cable L32 in its place.
6. Plug connector X99 of cable L43 to board CJ.
17 Water Unit: Making Connections
A
X7
CF
X1
PK
GY
X2
X8
X1
X7
X3
1
2
Grease SYNTHESO PRO AA2
1.
2. / 6.
3.
4.
X8X99 X33
i
5.
1
7
0
m
m
±
1
0
100mm
20 41 648
10
+
_
!
54 44 018
29 40 120
