Sirona C2+ - Final Assembly of the Narrow Backrest

Sirona Dental Systems GmbH 24 Final Assembly of the Narrow Backrest
59 58 470 D 3370
D 3370.031.01.10.02
33
båÖäáëÜ

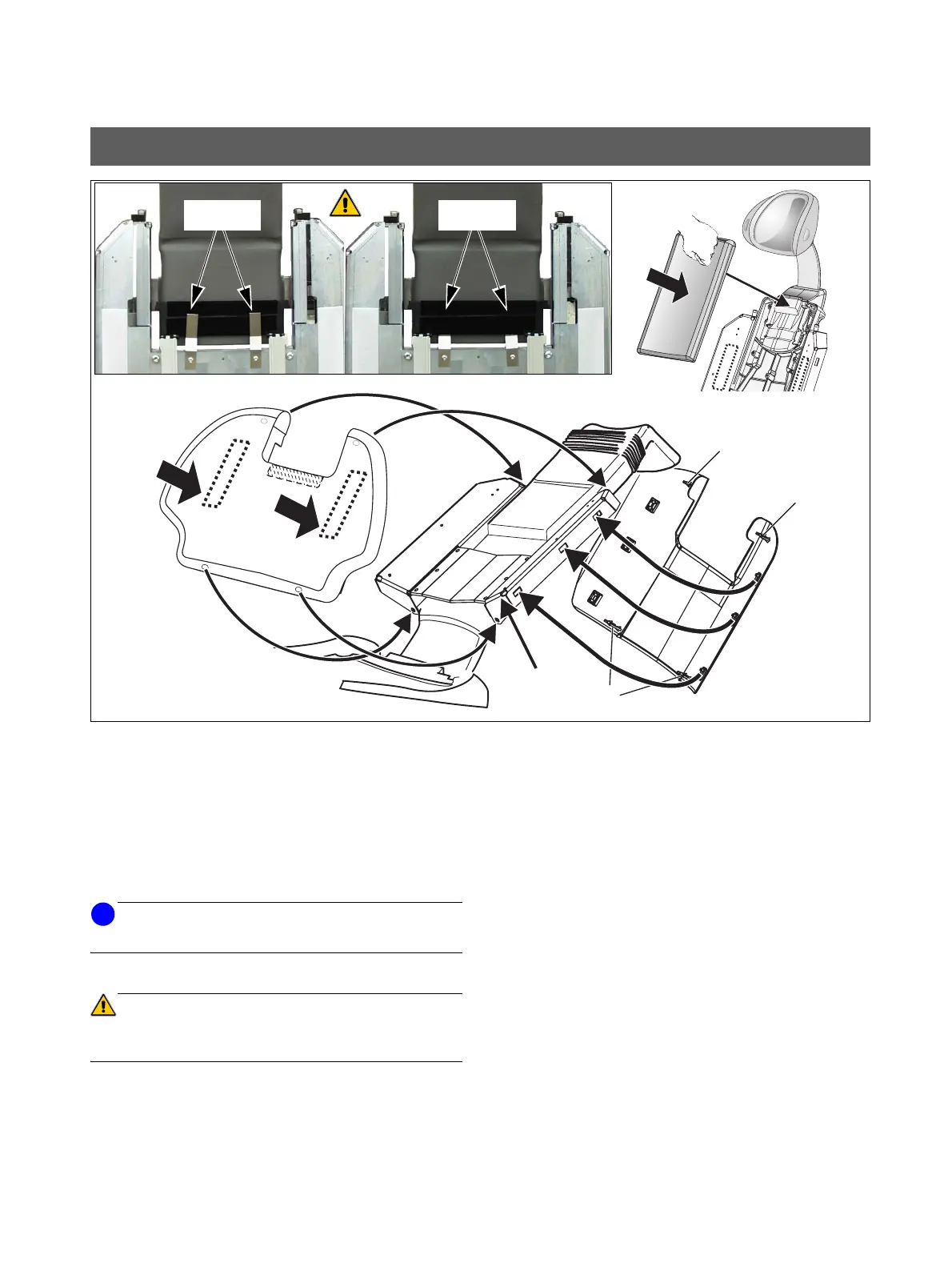

1. MultiMotion headrest (optional):
Attach and press the headrest upholstery on the snap
fasteners.
2. Attach and snap on the backrest cover.
Fastening straps A must snap onto the studs (with Torx
screws) outside of the backrest support.
3. Remove the transport safety devices from the backrest
padding.
NOTE
i
For details see the paper slip on the upholstery.
4. Hook the padding onto the two upper studs.
ATTENTION
Risk of upholstery damage! Do not let the upholstery
come into contact with edges B when fitting it.
5. Pull the upholstery backing in the lower fastening area
downwards and hook it over the lower studs.
6. Affix the adhesive strips of the Velcro strap by pressing
them onto the backrest padding.
7. With an electrical headrest:
Press the Velcro strap in area C uniformly onto catch D.
24 Final Assembly of the Narrow Backrest
right wrong
B
A
A
C
D
A
5.
4.
6.
7.
3.
2.
1.
