Sirona C2+ - Valve Set Additional Units: Making the Hose Connections

20 Valve set additional units: Making the hose connections Sirona Dental Systems GmbH
59 58 470 D 3370
26 D 3370.031.01.10.02
Version with disinfection system
1.
Pull the nipple holder off of the four-way distribu-
tor
.
Pull the blind nipple off of the four-way distributor and fit
water hose W52 (from the connection box / valve set).
Refit the nipple holder.
Version without disinfection system
1. Unscrew hose W52 from quick coupling A (water con-
nection) and pull it off.
2. Shorten hose W52 to a length of 310mm.
3. Plug hose W52 into quick coupling A (water connec-
tion) and screw it tight.
4. Unscrew the closing plate from the valve block.
Remove the blind nipple, insert hose W52 and screw it
onto the closing plate.

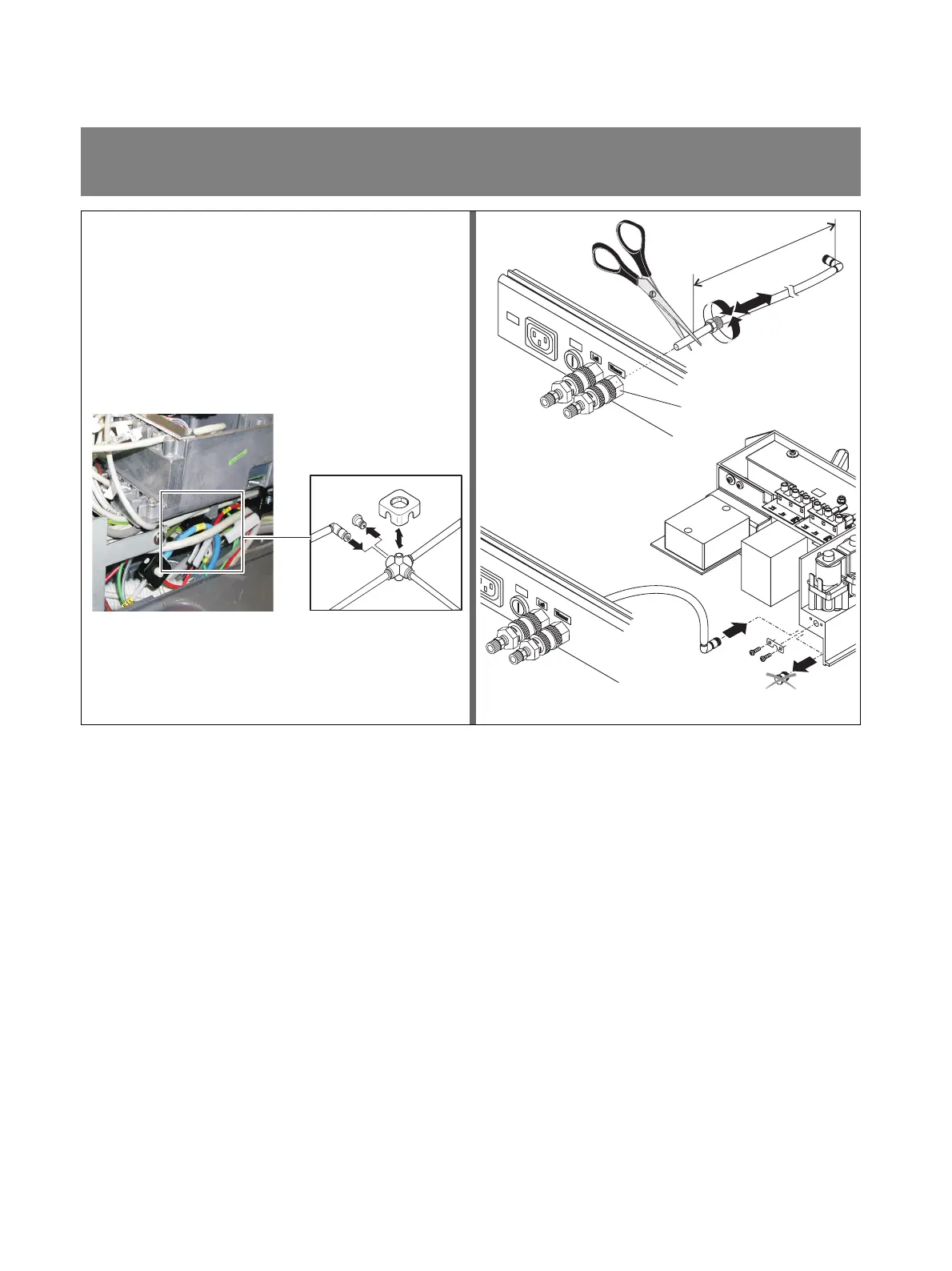

20 Valve set additional units: Making the hose
connections
W52
310 mm
W52
1.
1./3.
Version with disinfection system Version without disinfection system
A
2.
4.
W32
W52
W32
W38
