Sirona C2+ - Installing the Seat Padding

Sirona Dental Systems GmbH 26 Installing the Seat Padding
59 58 470 D 3370
D 3370.031.01.10.02
35
båÖäáëÜ

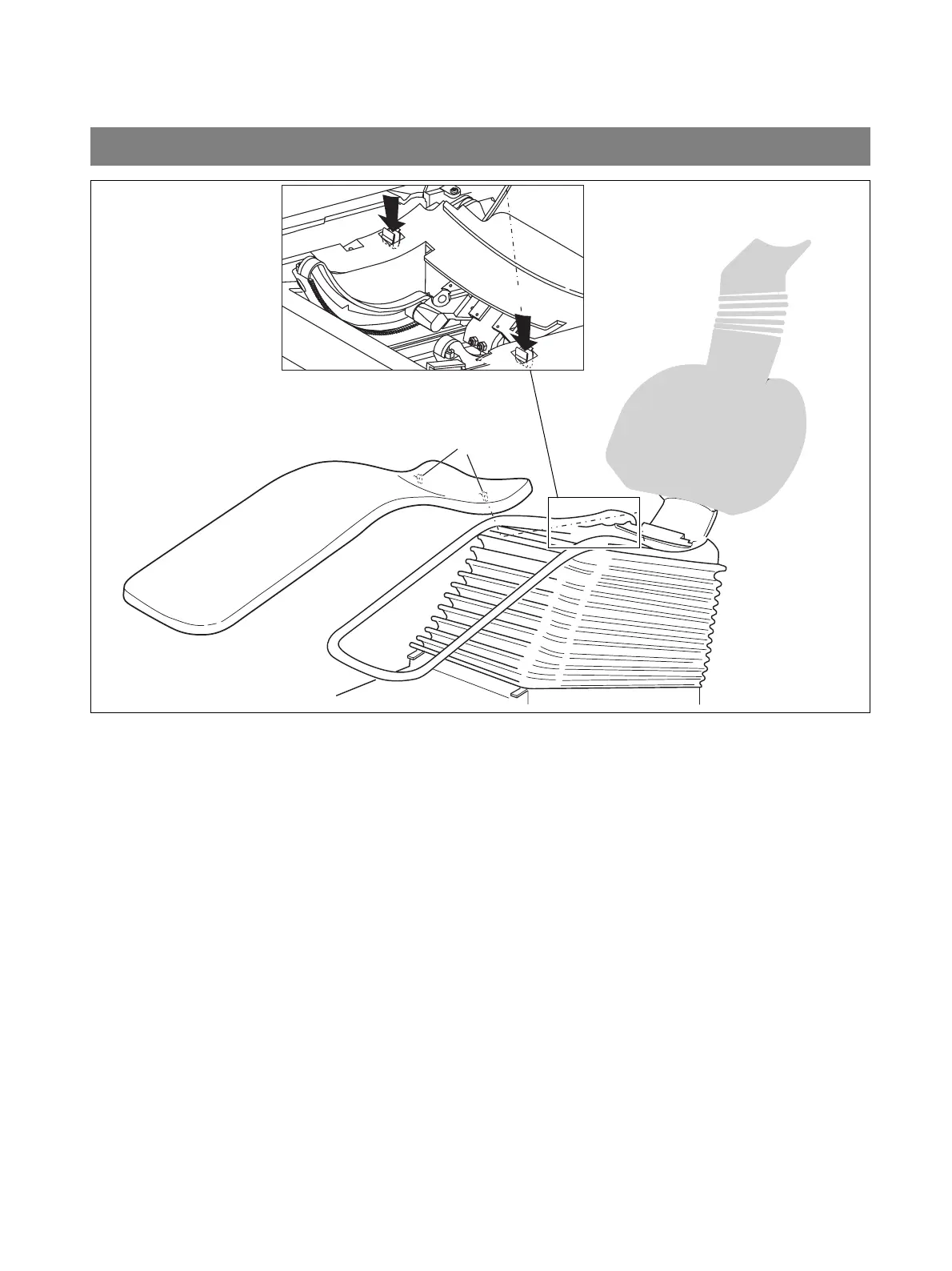

1. First press the padding snap fasteners E carefully until
they snap into the clamp D.
Then insert the seat padding at the foot area into the
bracket.
2. Lay the protective cover on top and press uniformly on
the Velcro strap.
26 Installing the Seat Padding
E
1.
2.
D
1.
