Sirona C2+ - Page 29

Sirona Dental Systems GmbH 22 Attaching the Water Unit Housing Covers
59 58 470 D 3370
D 3370.031.01.10.02
29
båÖäáëÜ

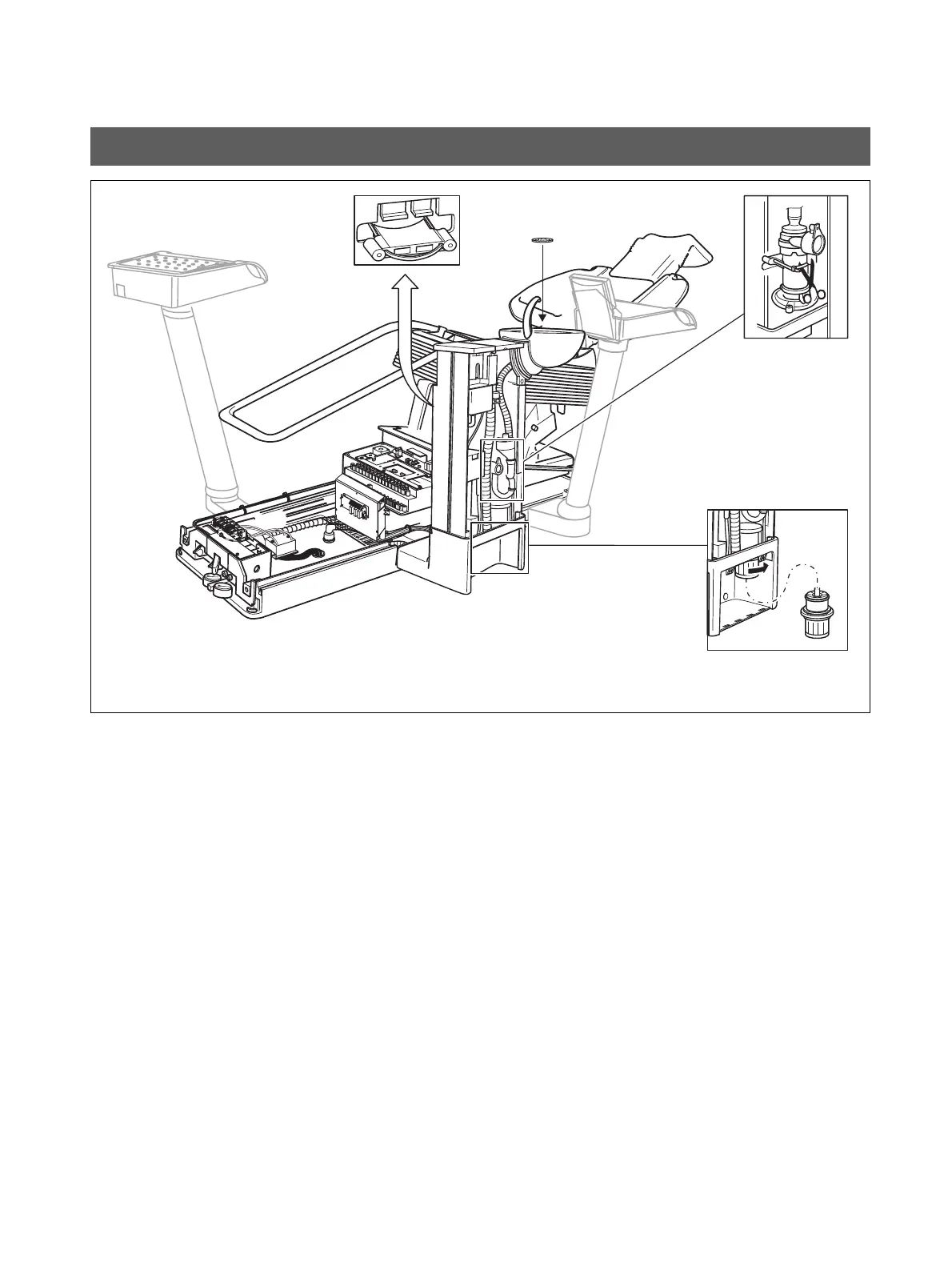

8. Remount bottom part of amalgam separator.
9. Sever the cable tie on the motor of the amalgam sepa-
rator.
10. Slide transport brace with cable tie downward and re-
move to the rear through opening in chassis.
11. Put on the cup support.
8.
9.10. 11.
