7. Electronic control unit Page 47
EN
7.1.4.2. Display mode (KFAS)
During normal operation, the three-digit LED
display is switched off and, depending on the
operating state, only the PAUSE, CONTACT, CS, or
FAULT LEDs light up ( preceding Chapter).
To display the current operating parameters, the
three-digit LED display is activated by briefly
pressing one of the two buttons
or . The LED
display is then in display mode.
In display mode, you can query the current
parameters and their values one by one. The
procedure is shown in Table27.
Table20 in Chapter 7.1.1, "Display and control
elements (KFAS)" shows an overview of the possible
display contents, their meaning and the value range.

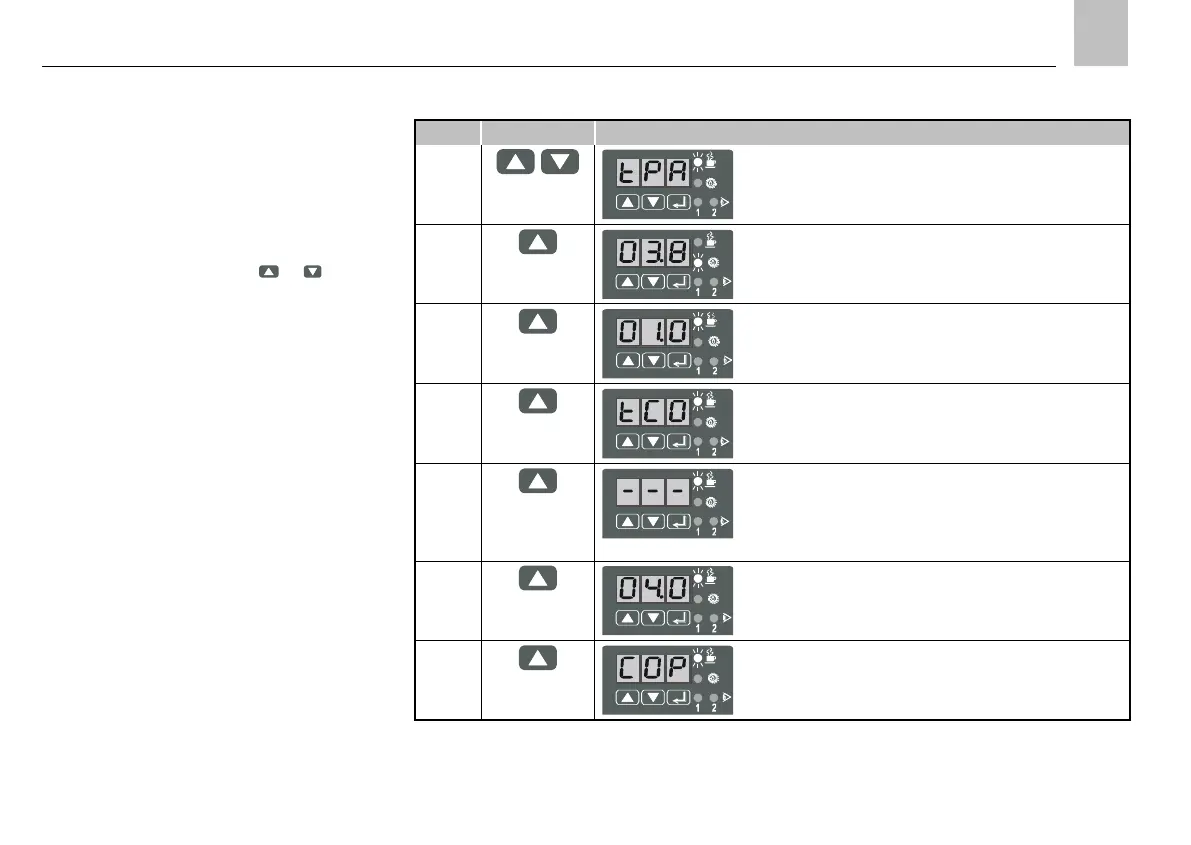

Table 27. Display of parameters in display mode (KFAS)
Step
Button
Display
1
Press briefly.
Display mode is activated.
The current operating state is displayed.
Example: Interval time in timer mode
2
Display of remaining interval time in the current lubrication cycle
Example: 3.8 h
If a lubrication procedure is currently being executed (CONTACT
LED lights up), --- is displayed.
3
Display of the programmed total interval time
Example: 1 h
4
Switchover to the "contact time" parameter.
Example: Contact time in timer mode
5
Display of the remaining contact time for current lubrication
cycle
Example: The centralized lubrication system is currently in the
interval time; the remaining contact time therefore cannot be
displayed.
6
Display of the programmed contact time
Example: 4 min
7
Switchover to the "monitoring function" parameter.
Continued on next page
