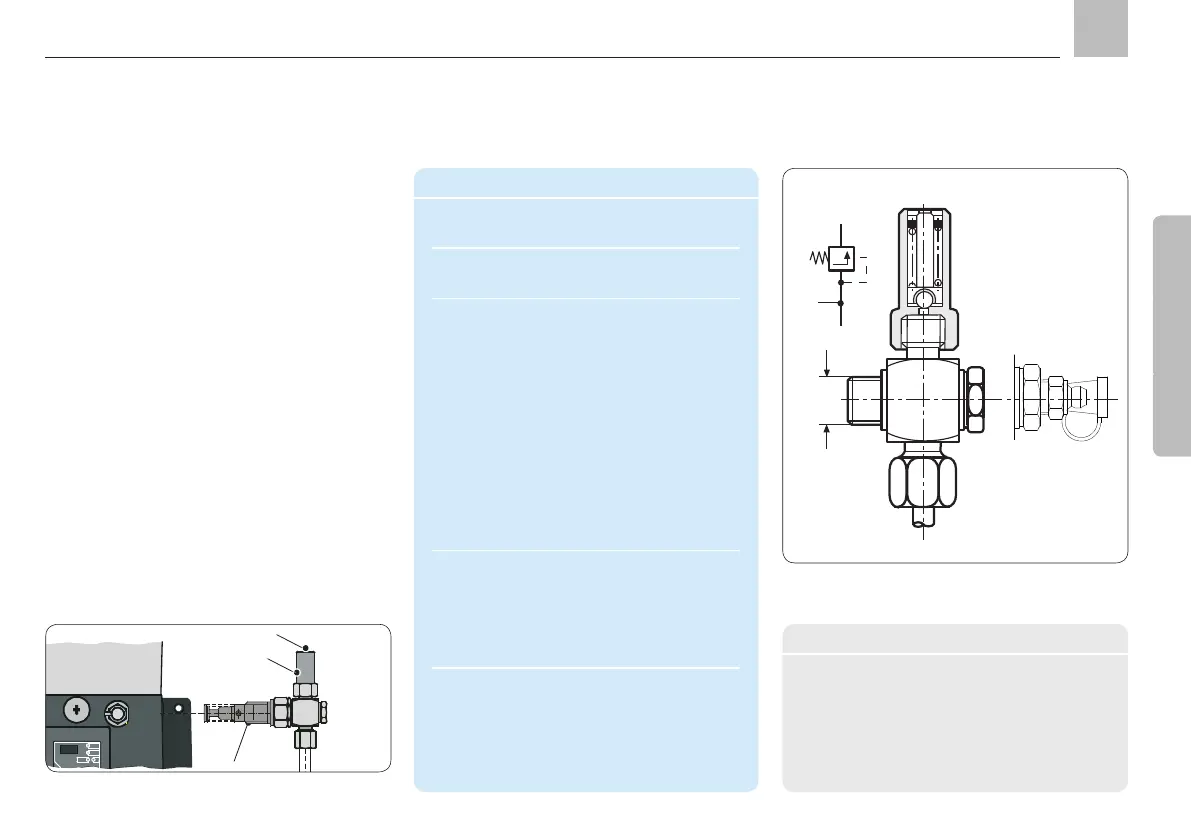

Connections for pressure regulating valves
A Connection for pipe Ø
P Pipe thread for pump element
R Grease emitted at overpressure
Note
The pressure regulating valve is available with
an optional lubricant nipple.
pressure regulating valve
2
1
3
Connection for pressure regulating valve
Spare parts
Pressure regulating valve without
lubricant nipple
Tube Ø Cracking pressure Order number
[mm] [bar]
6 300 161-210-012
6 200 161-210-032
8 300 161-210-018
8 200 161-210-031
10 300 161-210-016
10 200 161-210-030
Pressure regulating valve with
lubricant nipple
6 300 161-210-014
8 300 161-210-025
Pressure regulating valve with
pressure gauge
6 300 161-210-046
8 300 161-210-047
10 300 161-210-048
Assembly instructions
KFGS
KFG
KFGC
4.3.5 Pressure regulating valve
A pressure regulating valve (1) protects the
entire lubrication system against excessive
system pressure. It is mounted directly on the
pump element (2). The cracking pressure set
for this valve is 300 bar or 200 bar, depend-
ing on the valve design. If a blocked feeder or
a lubrication point causes operating pressure
to rise above 300 (200) bar, the valve opens,
followed by a noticeable discharge of grease
(3). This also serves as a form of visual system
monitoring.
This protects the pump unit against damage.
A further option are pressure regulating valves
with an emergency lubricant nipple. These can
be used with manual grease presses to provide
the lubrication system with adequate lubricant in
case of power failure or a defective pump.
