Page 37
EN
Systems with connection to CAN bus system.
-
municating with the control unit over the CAN
network using the SAE J1939 communication
protocol.
Systems without connection to
CAN bus system
Systems without a connection to a CAN bus
interface.
on the PC to do this. You can obtain this pro-
gram from the SKF Service Center.
Display
CAN Bus
24 VDC
M
M
1
2
3
4 5 6 7
CS1
CS2
CS3
CS4
1 2
3
5
4
Connector 3
4.5.4.3 Example of CAN bus control with
5/4 directional solenoid valve
The 5/4 directional control valve is intended for
use in progressive feeder lubrication systems
and in the industrial sector. It possesses an in-
put which can be switched to one of the four
outputs at a time. Using this valve, especially in
combination with the KFG CAN bus pump unit,
up to four independent zones can be supplied
with lubricant, controlled and monitored. The
5/4 directional control valve thus replaces up
to four 2/2 directional control valves. During
the switching process, there may be a brief
connection (approx. 0.1 s) between the main
line and non-actuated lubrication lines. The
DCV5-4+924 5/4 directional control valve is
electrically actuated with 24 VDC.

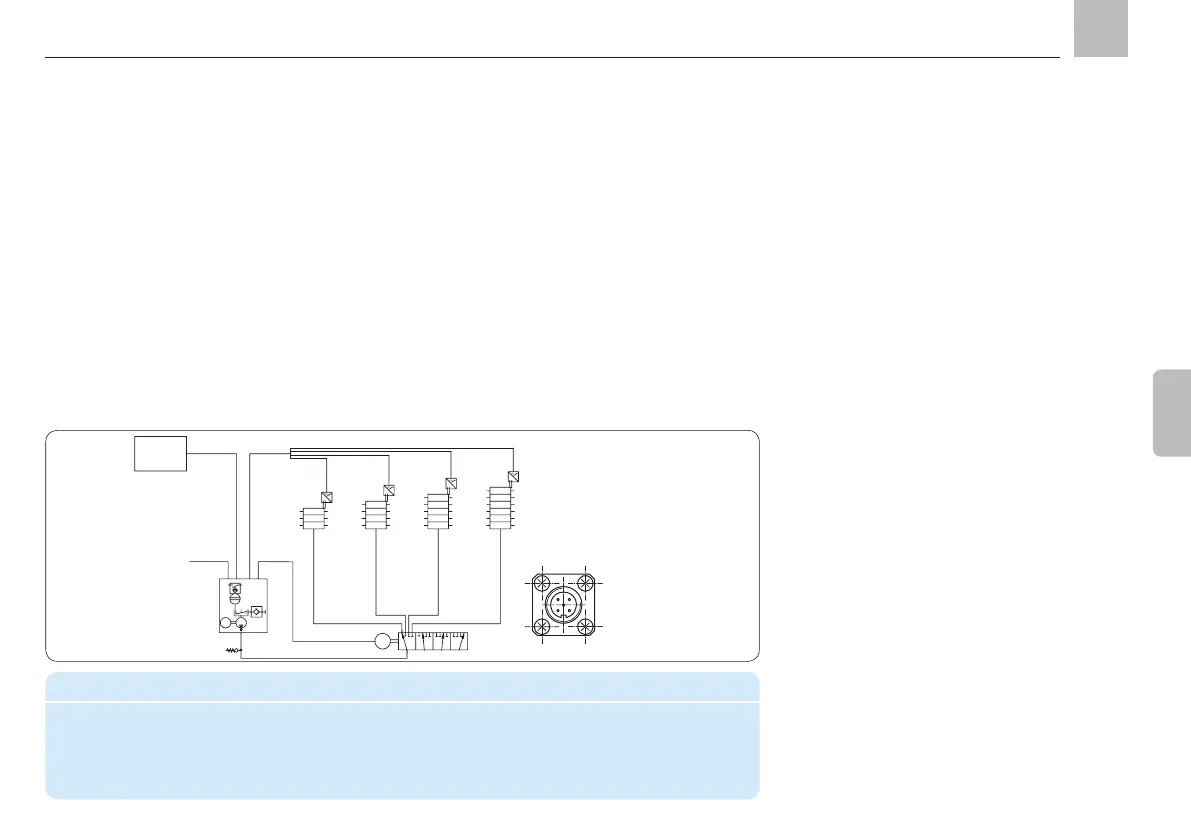

Legend for connection illustration with a 5/4 directional solenoid valve
1 KFG CAN-Bus pump unit 2 Pressure regulating valve,
3 5/4 directional control valve DCV5-4+924, 4 - 7 Piston distributors
CS1 – CS4 Piston detector of the lubrication zones 1 - 4
KFGC (CAN bus)
pump unit
Assembly instructions
KFGC
