Page 30
EN
4.5.3.2 Connectivity for counter operation
without system monitoring
Interval depends on number of pulses
Pump cycle time depends on time
Programming:
cPA, tCO, COP = OFF - see Chapter 6 in the
operating instructions
Accessories
Description Order No.
Cable harness, in corrugated pipe,
with pump-side socket
8 m long 997-000-760
12 m long 997-000-630
16 m long 997-000-650

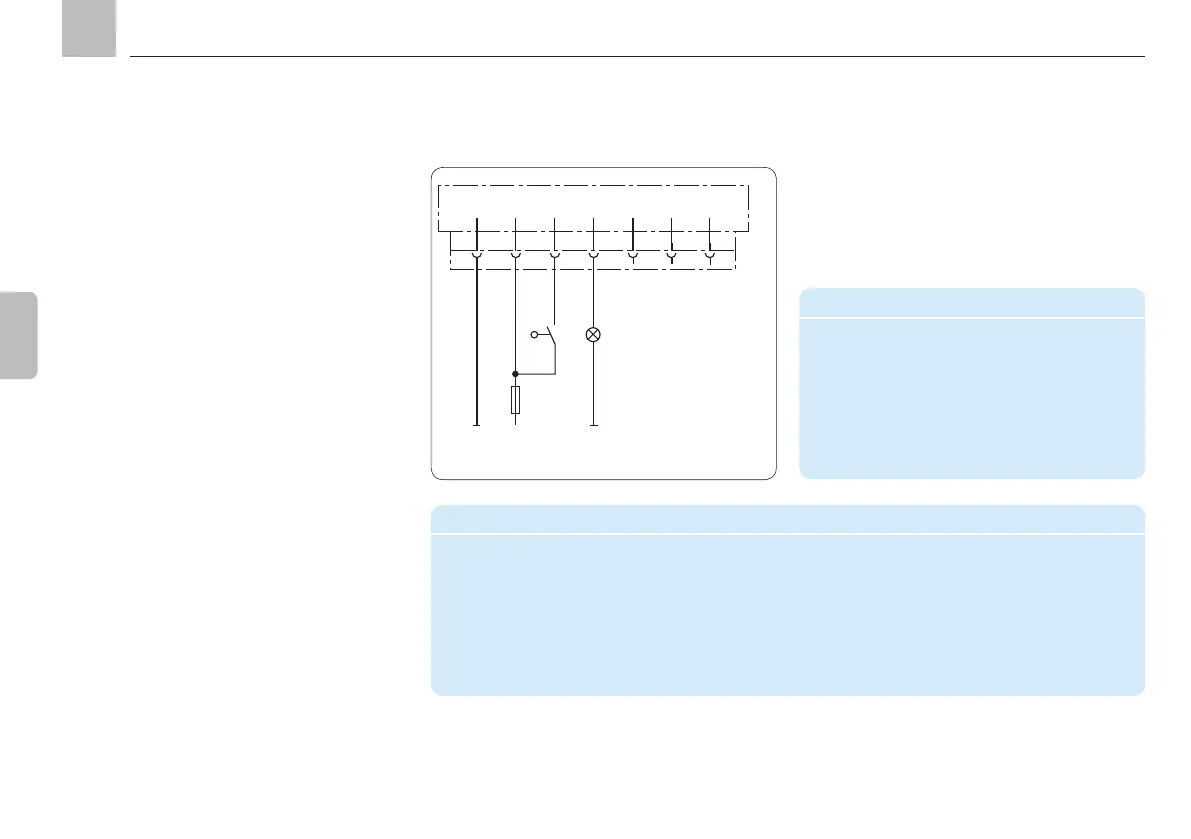

Settings for progressive lubrication
31 15
1
BN
KFGS...
F
2 3 4 5 6 7
X1
RD-BK
BU
PK
DK
SL2
2,4 W
Connector pin assignment in counter operation
PIN Code Assignment
1 31 - Supply voltage potential (0 V, GND)
Assembly instructions
KFGS
