lubricants can result in severe system
malfunction.
ways based on the design.
71412-AM10x1 conical head nipple (1) and a
conventional grease press.
The conical head nipple can be twisted onto
the position (2), for example to gain better ac-
cess. As an alternative, the connection (2) can
coupling (see following page).
Filler sockets/lubricant return
R
A
P
R
P
A

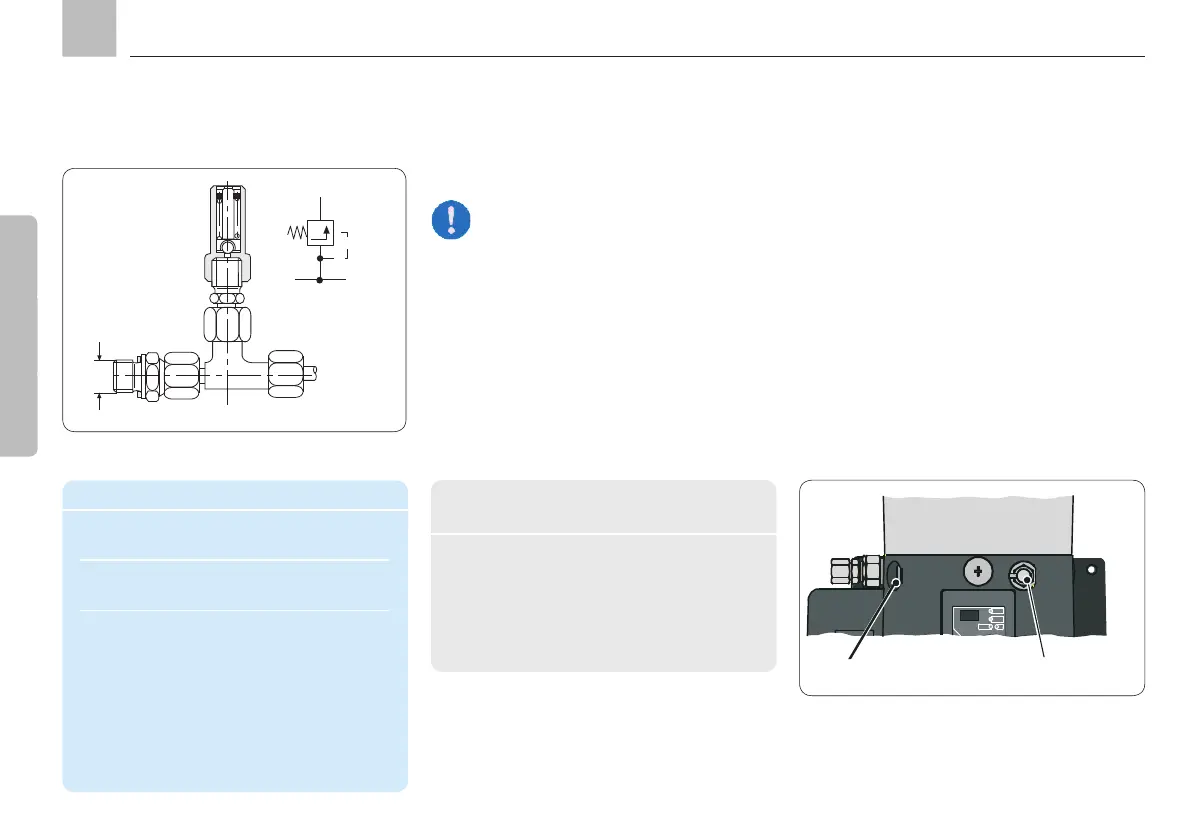

Pressure regulating valve with T connector
Connections for pressure regulating valve
with T connector
A Connection for pipe Ø
P Pipe thread for pump element
R Grease emitted at overpressure
Cracking pressure........ 300 ± 20 bar
Nominal tube sizes Ø . 6, 8, 10 mm
Pressure regulating valve
Pressure regulating valve with
T connector output
Tube Ø Cracking pressure Order number
[mm] [bar]
6 300 161-210-038
6 200 161-210-032
8 300 161-210-039
8 200 161-210-031
10 300 161-210-016
10 200 161-210-030
Assembly instructions
KFGS
KFG
KFGC
