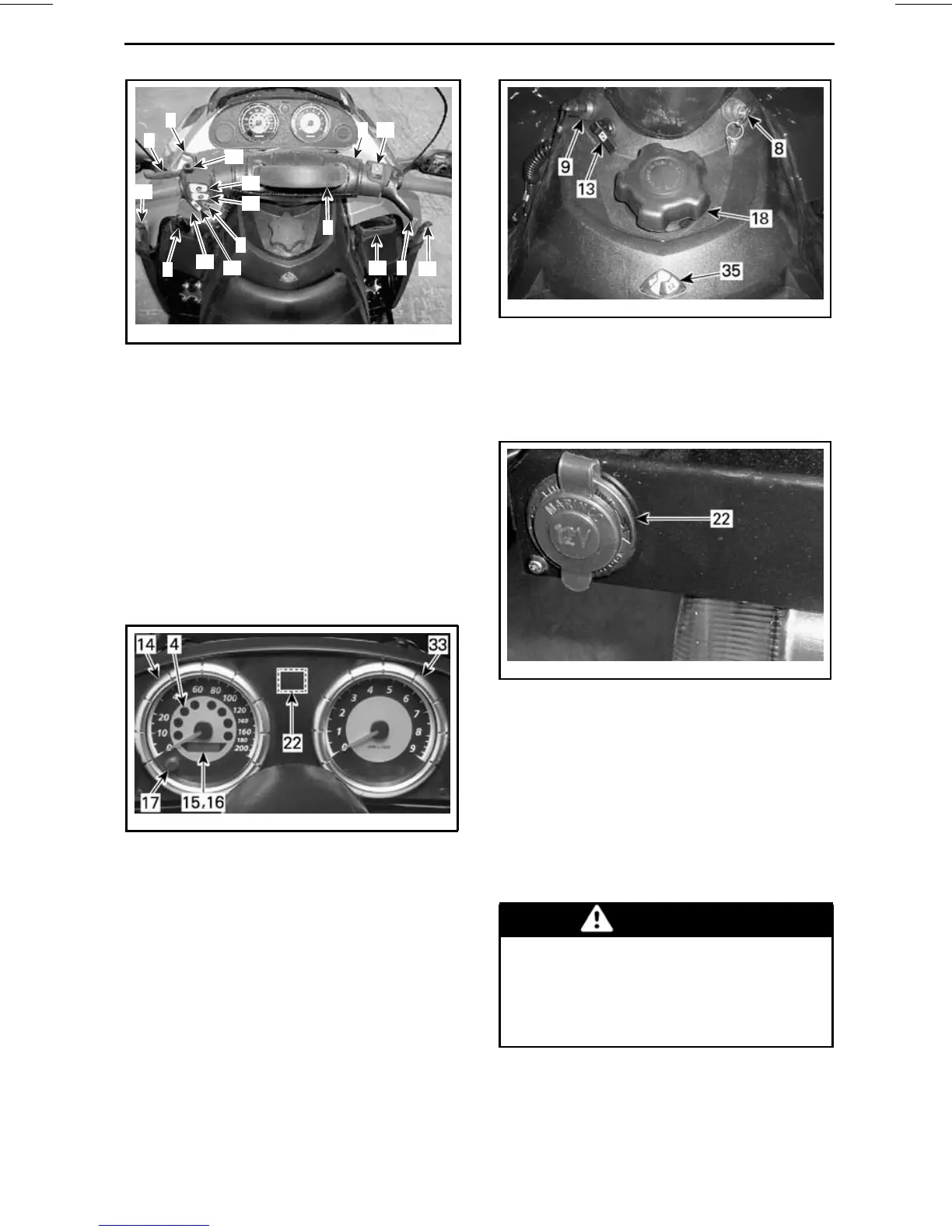

CONTROLS, INSTRUMENTS AND EQUIPMENT
12
1
21
10
7
11
5
21
3
36
20
6
8
19
2
22
mmo2011-008-001_a
TYPICAL
1. Throttle lever
2. Brake lever
3. Parking brake lever
5. Gear shift lever
6. Handlebar
7. Mountain strap
8. Ignition switch/start button
10. Emergency engine stop switch
11. Headlights dimmer switch
12. Rewind starter handle
19. Heated grip switch
20. Heated throttle lever switch
21. Hood latches
22. Electric power outlet switch
36. Horn button
mmo2010-001-002_a
TYPICAL
4. Pilot lamps
14. Speedometer
15. Odometer
16. Trip meter/display
17. Mode button
22. Electric power outlet
33. Tachometer
mmo2008-001-024_b
TYPICAL
8. Ignition switch/start button
9. Engine cutout switch
13. Choke lever
18. Fuel tank cap
35. Mechanical fuel level gauge
mmo2008-001-016_a
SKANDIC
TM
SWT V800 ONLY — REAR RACK
22. Electric power outlet
1) Throttle Lever
Located on the right hand side of han-
dlebar and designed to be thumb ac-
tivated. When squeezed, it increases
the engine speed and engages the
transmission. When released, engi
ne
speed returns automatically to idle.
WARNING
Test the throttle lever operation
each time before starting the en-
gine. The lever must return to its
original position once released.
Otherwise, do not start engine.
_______________
29
