CONTROLS, INSTRUMENTS AND EQUIPMENT
MODELS
MAXIMUM
OUTPUT
CURRENT
LOCATION
20 amperes Rear rack
SWT V800
5amperes
Dashboard
WT 550F
5amperes
Dashboard
A29I04A

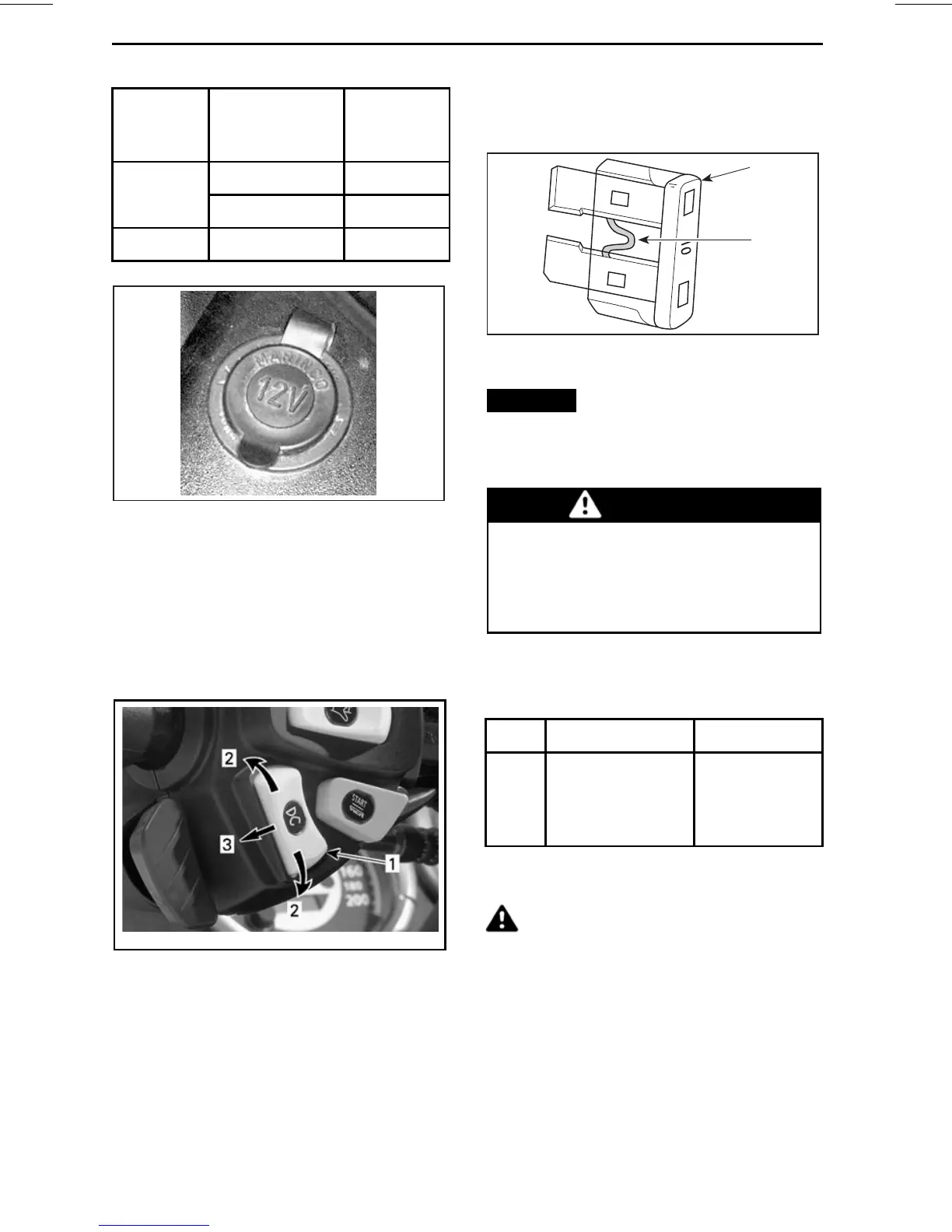

TYPICAL — ELECTRIC POWER OUTLET
Electric Power Outlet Switch
(V800 Model)
With the engine running, use the tog-
gle switch mounted on the multifunc-
tion switch to supply current to the rear
rack power outlet.
mmo2008-001-017_a
MULTIFUNCTION-SWITCH
1. Rear power outlet switch
2. Upper/Lower ON position
3. Middle OFF position
23) Fuses
Fuse Removal/Inspection
Check fuse condition and replace it if
necessary.
To remove fuse from holder, pull fuse
out. Check if filament is melted.
1
2
A15E0KA
1. Fuse
2. Check if melted
NOTICE
Do not use a higher rated
fuse as this can cause severe dam-
age to electrical components and/or
be a potential fire hazard.
WARNING
If fuse hasburnt out, sourceof mal-
function should be determined
and corrected before restarting.
See an authorized Ski-Doo dealer
for servicing.
Description/Location
550F Model
FUSE DESCRIPTION LOCATION
30 A
Ground
protection
(includes electric
power outlet)
Engine
compartment
Ground Protection
CAUTION This fuse should al-
ways be disconnected before doing
any maintenance under the hood.
This is to prevent any unexpected
electrical activation.
38
