CONTROLS, INSTRUMENTS AND EQUIPMENT
Multifunction Display Code
If your speedometer shows SCALE in
the multifunction display, it means that
the display selector button is stuck in
the down position or depressed when
the electrical system was activated.
17) Mode Button
Depress mode button to change dis-
play. Each time engine is started, dis-
play shows odometer. From that point
depressing mode button will change
display for the trip meter.
Depressing mode button again will
change display for the resetable hour
meter. Push mode button again to re-
turn to odometer.
Pushandholdmodebuttonfor2sec-
onds to reset the trip meter or the re-
setable hour meter depending on the
one displayed.
18) Fuel Tank Cap
Unscrew to fill up tank, then fully
tighten.
WARNING
Always stop the engine before re-
fueling. Fuel is flammable and ex-
plosive under certain conditions.
Always work in a well ventilated
area. Do not smoke or allow open
flames or sparks in the vicinity.
Open cap slowly. If a differen-
tial pressure condition is noticed
(whistling sound heard when loos-
ening fuel tank cap) have vehicle
inspected and/or repaired before
further operation. Do not overfill
or top off the fuel tank before plac-
ing the vehicle in a warm area. As
temperature increases, fuel ex-
pands and might overflow. Al-
ways wipe off any fuel spillage
from the vehicle. Periodically ver-
ify fuel system.
NOTICE
Donotsitorleanonseat
when fuel tank cap is not properly in-
stalled.
19) Heated Grip Switch
Three-position toggle switch. Select
thedesiredposition to keep your hands
at a comfortable temperature.
20) Heated Throttle Lever
Switch
Three-position toggle switch. Select
thedesiredpositiontokeepyourright
thumb at a comfortable temperature.

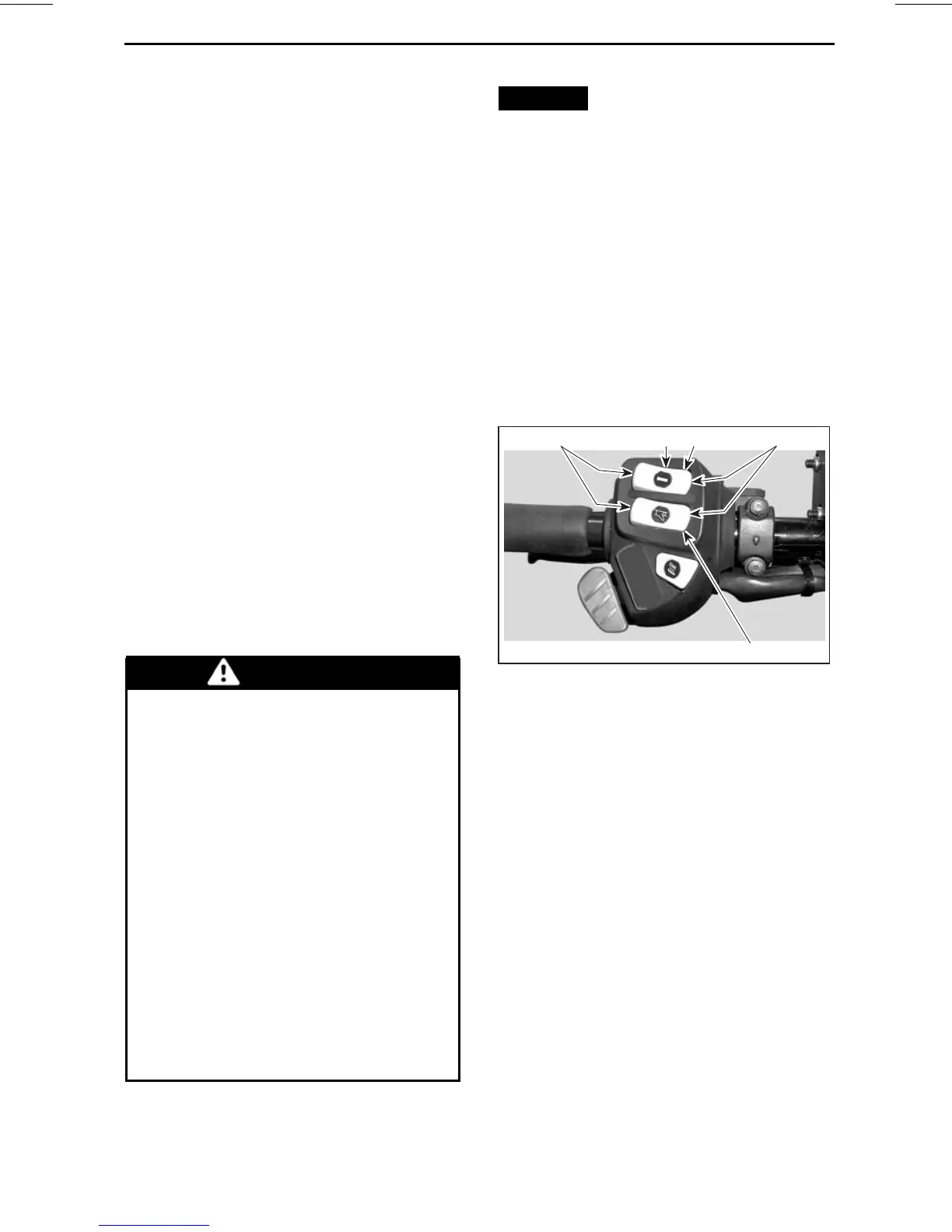

A33E04B
1
2
3
4
5
1. Heated grip switch
2. Heated throttle lever switch
3. Hot
4. Warm
5. Off
21) Hood Latches
Stretch and unhook the latches to un-
lock the hood from its anchors.
Always lift hood gentlyuntilstopped by
retaining device.
Close hood slowly, then hook up
latches.
22) Electric Power Outlet
A 12-volt electric appliance may be
connectedto that jackconnector. Elec-
tric current is supplied when ever en-
gine is running. See
FUSES
in
CON-
TROLS, INSTRUMENTS AND EQUIP-
MENT
subsection for electric power
outlet fuse location.
