CONTROLS, INSTRUMENTS AND EQUIPMENT
V800 Model
NOTICE
Do not lift snowmobile off
the ground using the front bumper.
25) Storage Compartment
WARNING
All storage compartments must be
properlylatched and they must not
containany heavy orbreakable ob-
jects.

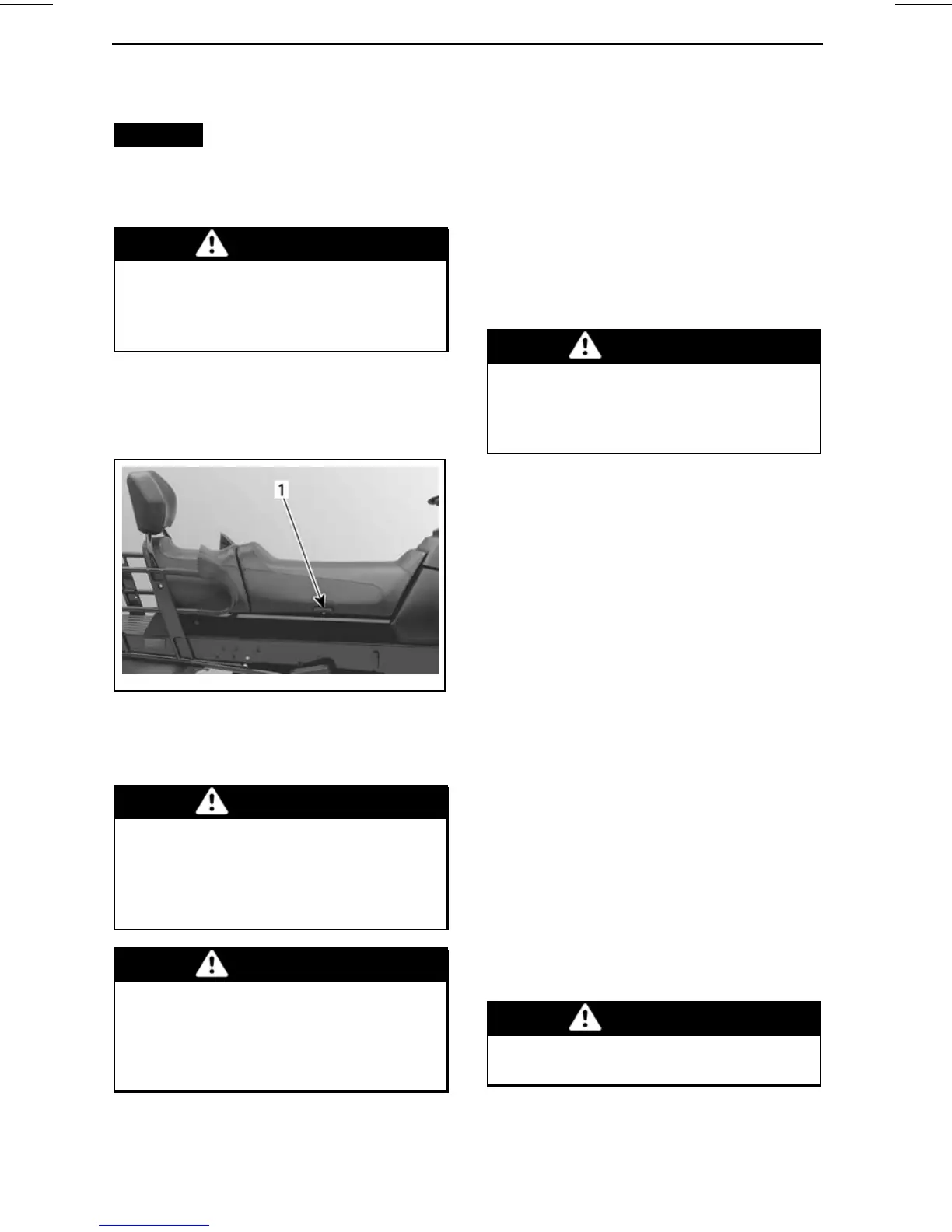

A storage compartment is provided
under seat. To open storage compart-
ment, lift seat latch, then tip seat over.
mmo2008-001-019_e
TYPICAL
1. Lift seat latch
26) Rear Rack
WARNING
All objects in rear rack must be
properly latched. Do not carry
any breakable objects. Excessive
weight in rack may reduce steering
ability.
WARNING
Always readjust suspension ac-
cording to the load. The capacity
of this rack is limited. Ride at very
low speed when loaded. Avoid
speed over bumps.
27) Tool Kit
A tool kit containing tools for basic
maintenance is supplied with the vehi-
cle under seat.
28) Hitch
The hitch can be used to pull most
equipment. Use a rigid tow bar.
29) Shields and Guards
WARNING
Never operate engine without
belt guard securely installed or,
with hood or access/side panels
opened or removed.
Your snowmobile is provided with a
number of shields and guards. Leave
these in place on your vehicle as they
are designed to keep clothing and
hands out of moving parts and away
from hot components. Never attempt
to make adjustments to any moving
part while the engine is running.
30) Windshield
Windshield provides operator com-
fort, as well as protection by deflecting
wind and snow away from the opera-
tor.
31) Modular Seat
This snowmobile can be converted
into a snowmobile with one (1) seat
only instead of two (2). This could be
useful ifyou want to increase the cargo
area.
If necessary, backrest can also be re-
moved to increase the cargo area. Re-
fer to
BACKREST
.
WARNING
Never ride with a passenger with
-
out the backrest properly installed.
40
