CONTROLS, INSTRUMENTS AND EQUIPMENT

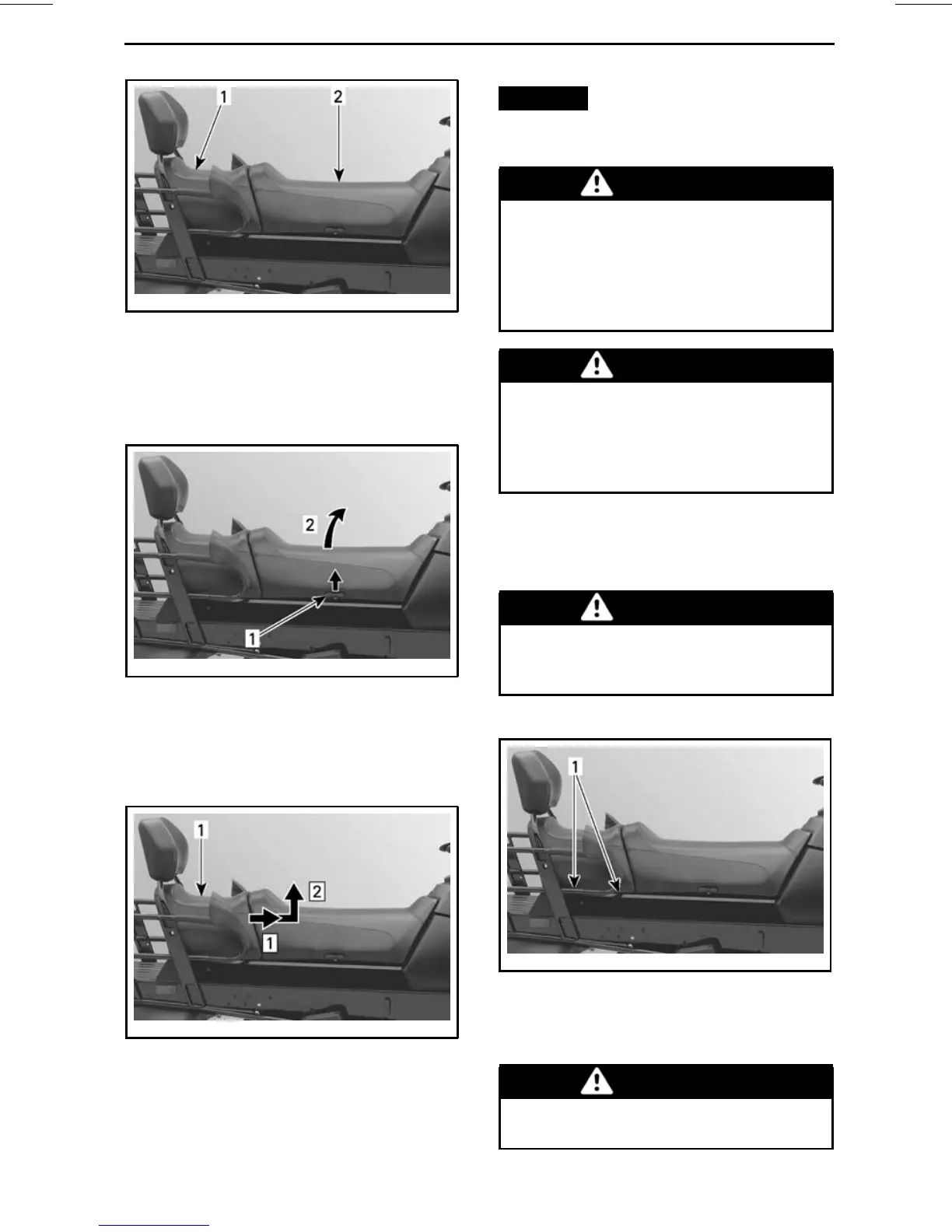

mmo2008-001-019_a
TYPICAL
1. Passenger seat (removable)
2. Driver seat
To remove the passenger seat, lift seat
latch, then tip driver seat over.
mmo2008-001-019_b
TYPICAL
1. Seat latch
2. Tip driver seat over
Slide the passenger seat forward, then
lift to remove.
mmo2008-001-019_c
TYPICAL
Step 1: Slide seat forward
Step 2: Lift seat to remove
1. Passenger seat
NOTICE
Take care to store the pas-
senger seat properly to avoid any
damage.
WARNING
NEVER use the space left by re-
moving the passenger seat to sit a
passenger. The passenger could
hurt his back or suffer other se-
rious injuries due to his seating
position.
WARNING
All objects in rear rack must be
properly latched. Do not carry
any breakable objects. Excessive
weight in rack may reduce steering
ability.
Installation is the reverse of removal
procedure. Pay attention to the follow-
ing.
WARNING
Make sure that the passenger seat
is locked securely in place before
using the snowmobile.
mmo2008-001-019_d
TYPICAL
1. Passenger seat hooks
32) Backrest
WARNING
Never ride with a passenger with-
out the backrest properly installed.
_______________
41
