TUNE YOUR RIDE
Slight suspension bottoming occurring
under the worst riding conditions indi-
cates a good choice of spring preload.
Rear Springs Preload
Rear spring preload has an effect on
comfort, ride height and load compen-
sation.
IMPORTANT: Make sure that all ob-
jects to be transported are in place in
rear rack and under the seat.
– Grab rear bumper and lift until sus-
pension is fully extended.
– From this point, rear of snowmo-
bileshouldcollapseby50to75mm
(2 to 3 in) when driver, passenger (if
so applicable) and load take place.

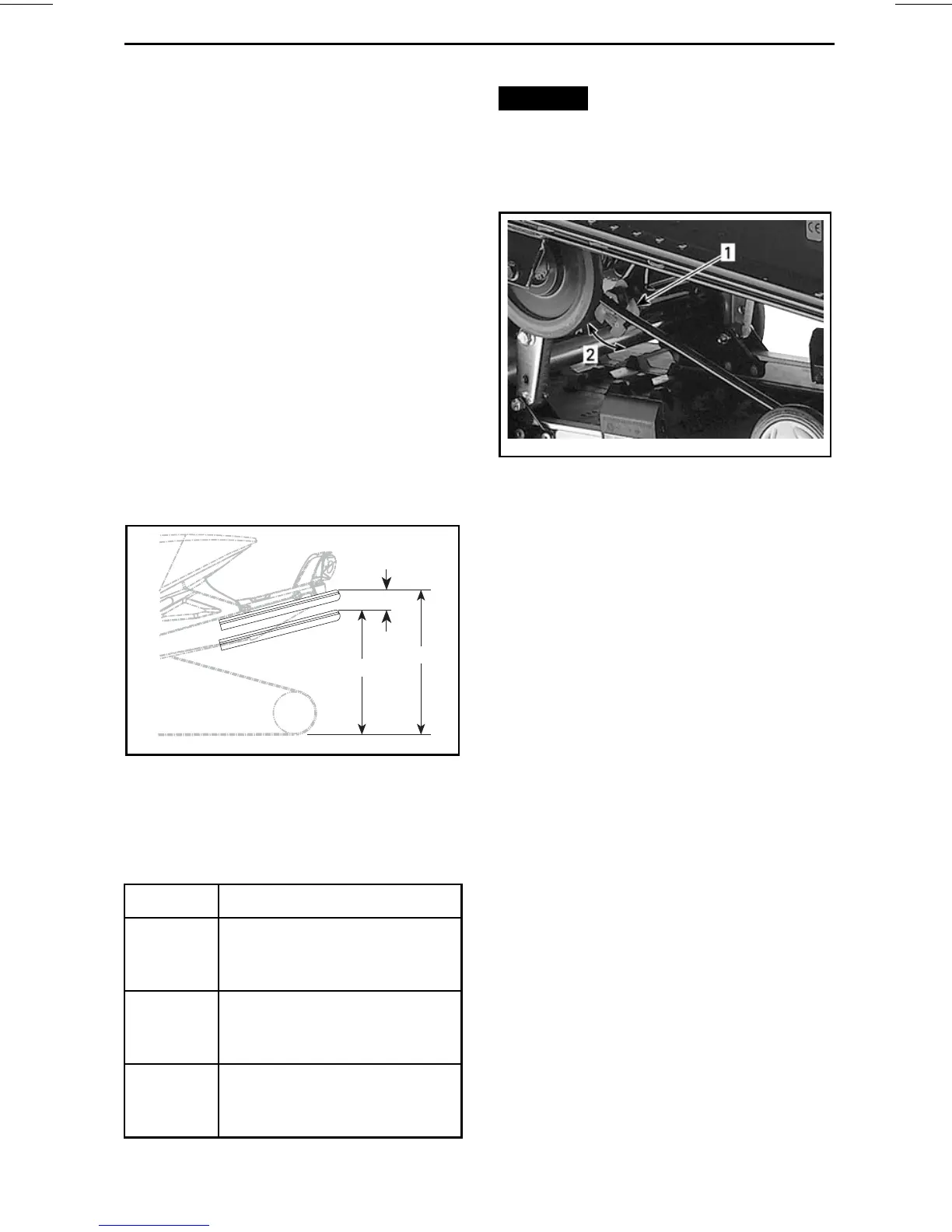

– Measure at rear bumper as shown
in next illustration.
C
B
A
mmo2006-003-022_a
TYPICAL — PROPER ADJUSTMENT
A. Suspension fully extended
B. Suspension collapsed with driver, passenger
and load added
C. Distance between dimension “A” and
“B”, must not exceed 50 mm to 75 mm
(2 in to 3 in), see table
”C” WHAT TO DO
50 to
75 mm
(2 to 3 in)
No adjustment required
More than
75 mm
(3 in)
Adjusted too soft, increase
preload
Less than
50 mm
(2 in)
Adjusted too firm, decrease
preload
NOTICE
To increase spring
preload, always turn the left side
adjustment cam in a clockwise di-
rection, and the right side cam in a
counterclockwise direction.
mmo2008-001-006_a
TYPICAL
1. Adjustment cam
2. Turn to increase spring preload
Suspended Extension
Adjustment
Suspended extension can be adjusted
according to the load and snow condi-
tions.
For better deep snow performance
or to increase reverse performance in
deep snow, first loosen lock nut, then
tighten nut 3/4 turn after contacting
washers. Retighten lock nut. Adjust
thesameonbothsides.
For trail riding with a load or for pulling
a load, first loosen lock nut. Turn to a
maximum preload of 3 turns after nut
touching washers. Retighten lock nut.
Adjustthesameonbothsides.
