CONTROLS, INSTRUMENTS AND EQUIPMENT
2) Brake Lever
Located on the left hand side of handle-
bar. When squeezed, the brake is ap-
plied. When released, it automatically
returns to its original position. Braking
effect is proportional to the pressure
appliedontheleverandtothetypeof
terrain and its snow coverage.
3) Parking Brake Lever
Parking brake should be used when-
ever snowmobile is parked.
WARNING
Make sure parking brake is fully
disengaged before operating the
snowmobile. When you ride the
vehicle, brake pads that are caused
to drag by a continuous pressure
on the lever may cause damage to
the brake system and cause loss of
braking capacity and/or fire.

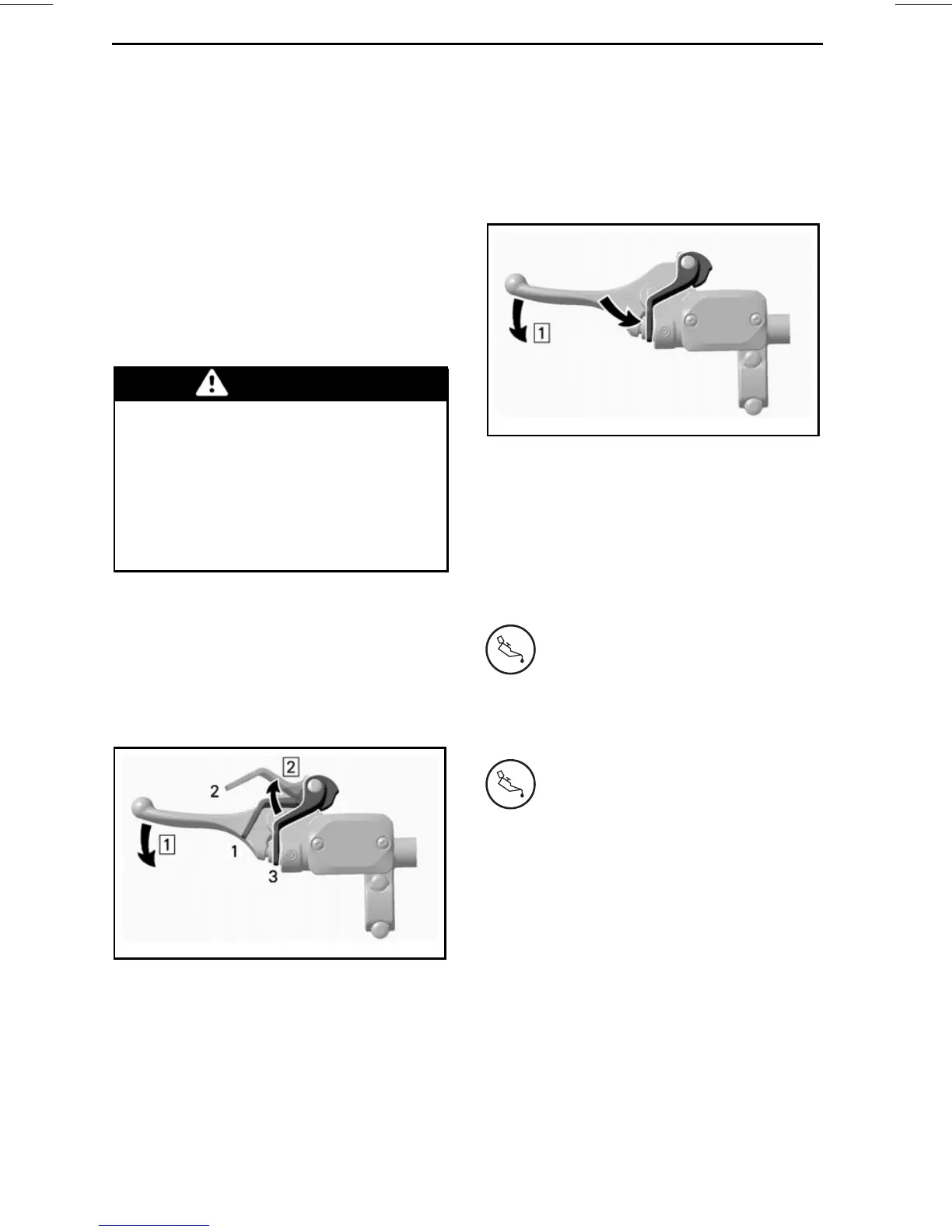

To Engage Mechanism
Squeeze brake lever and maintain
while pulling locking lever with your
thumb. When brake lever is held at
half-way the parking brake should be
fully applied.
mmo2007-009-037_a
TYPICAL — ENGAGE MECHANISM
Step 1: Squeeze and maintain brake lever
Step 2: Adjust locking lever
1. Position 1
2. Position 2
3. OFF
To Release Mechanism
Squeeze brake lever. Locking lever will
automatically return to its original posi-
tion. Always release parking brake be-
fore riding.
mmo2007-009-037_b
TYPICAL — RELEASE MECHANISM
Step 1: Squeeze brake lever
4) Pilot Lamps
Injection Oil Level/Engine Oil
Pressure
550F Model
Lights up when injection
oil level is low (with engine
running). Check oil level and
replenish as soon as possible.
V800 Model
This pilot lamp will glow up
when engine oil pressure is
too low. Stop vehicle in a safe
place then, check oil level
and replenish as described in
ENGINE OIL LEVEL
.
Restart engine, oil pilot lamp
must turn off after few seconds.
If oil pilot lamp still glows
up, stop engine and have
lubrication system inspected
by an authorized Ski-Doo dealer.
30
