MAINTENANCE PROCEDURES
Brake System
Brake Condition
WARNING
The brake mechanism on your
snowmobile is an essential safety
device. Keep this mechanism in
proper working condition. Above
all, do not operate the snowmobile
without an effective brake system.
Periodically verify the condition/
wear of the brake pads.
Brake Adjustment
No adjustment is providedforhydraulic
brake. See an authorized Ski-Doo
dealer if any problems.
Gearbox Oil
Gearbox Oil Level
To check, pull dipstick. Oil should
reach level mark.
NOTE: Before initial start-up, the oil
level may be higher than the full mark.
After first outing, oil level will decrease
as the upper oil cavity fills with oil.
To fill, remove filler plug from top of
gearbox. Refill as required using XPS
SYNTHETIC CHAINCASE OIL (P/N 413
803 300).
NOTICE
Use only the recom-
mended type of oil when servicing.
Do not mix this synthetic oil with
other types of oil.

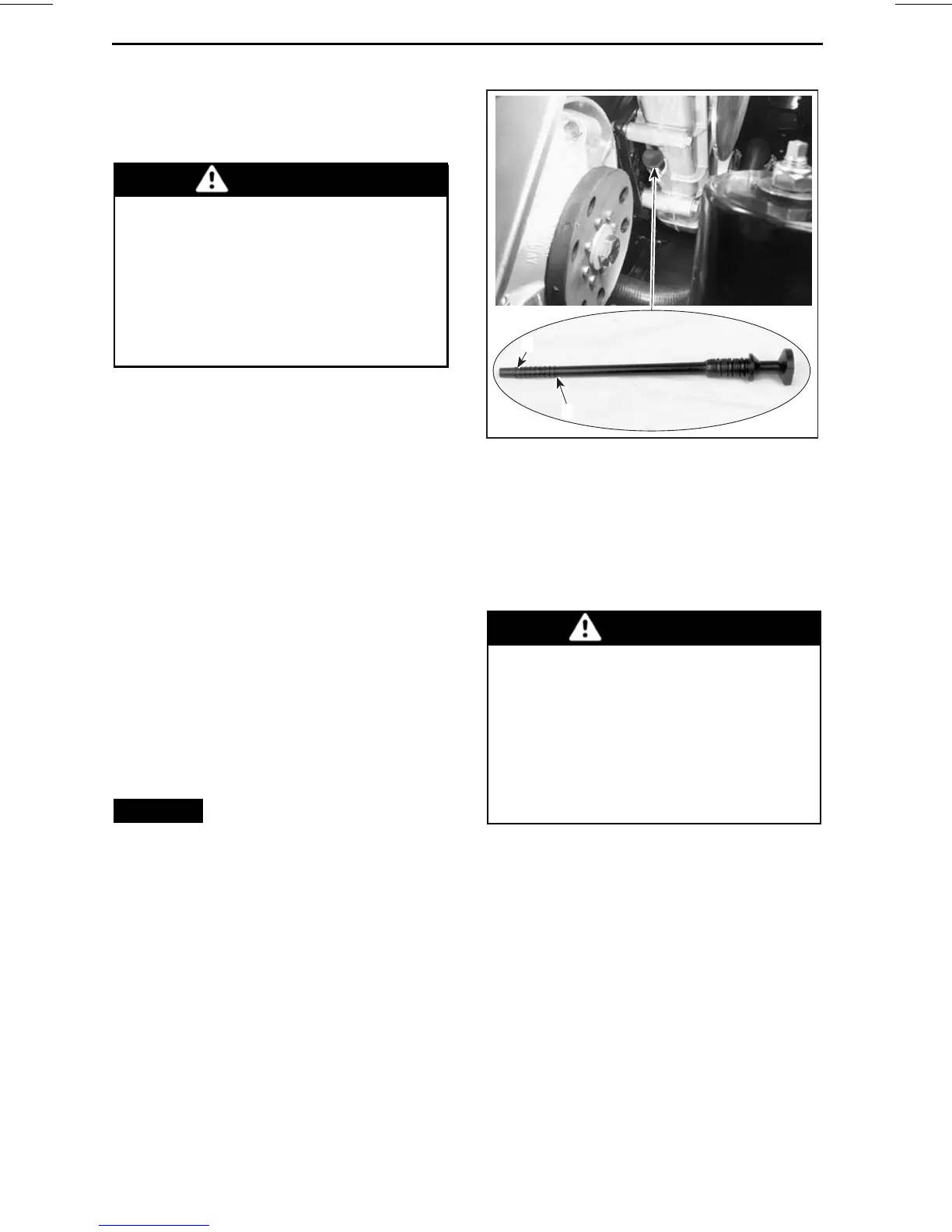

A29D0IA
1
2
TYPICAL
1. Full level mark
2. Lower level mark
Drive Belt Guard
Drive Belt Guard Removal and
Installation
WARNING
Never operate engine:
– Without shields and belt guard
securely installed.
– With hood and/or side panels
opened or removed.
Never attempt to make adjust-
ments to moving parts while en-
gine is running.
550F Model
1. Remove tether cord cap from en-
gine cutout switch.
2. Open hood. Remove both retaining
pins, then belt guard.
