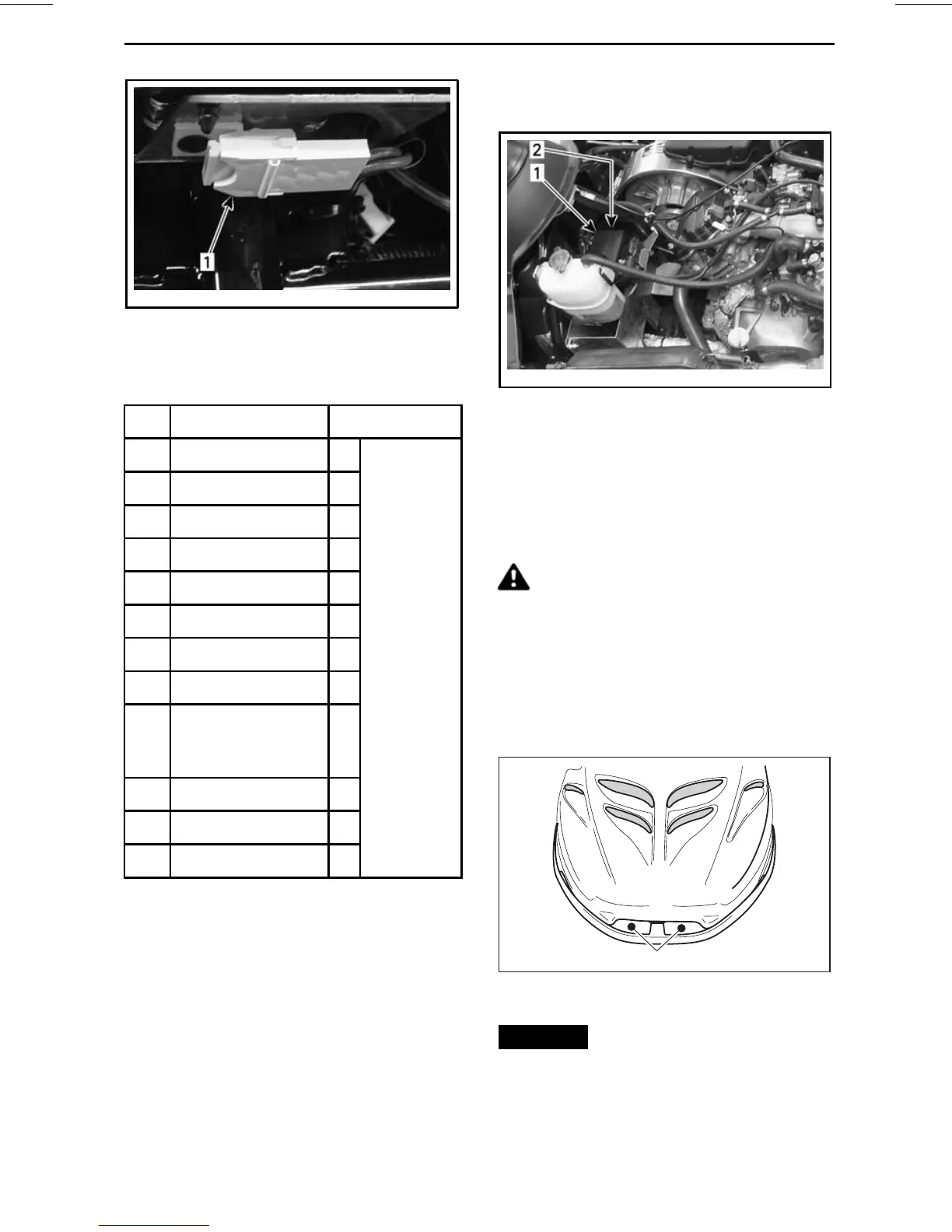

CONTROLS, INSTRUMENTS AND EQUIPMENT
mmo2008-001-018_a
ENGINE COMPARTMENT — UNDERNEATH
CONSOLE
1. Fuse holder
V800 Model
FUSE DESCRIPTION LOCATION
30 A Engine F1
1A CAPS F2
5 A Instrumentation F3
7.5 A MPEM/fuel pump F4
5 A PTO cylinder F5
5 A MAG cylinder F6
30 A Load F7
5 A Relay/start button F8
20 A
Rear power
outlet/horn
(Skandic SWT)
F9
15 A Cooler F10
20 A Lighting (headlamp) F11
20 A Secondary load F12
Fuse box
(engine
compartment)
Fuse Box
Toopen fuse box pushon cover taband
tilt cover. A fuse description decal is in-
side the cover.
V800 Model
mmo2007-001-005_a
1. Fuse box
2. Cover tab
24) Front Grab Handles/
Front Bumper
To be used whenever front of snow-
mobile requires manual lifting.
CAUTION Beware of injuries
by using proper lifting techniques,
notably using your legs force. Do
not attempt to lift the rear of vehi-
cle if it is above your limits. Use
appropriate lifting device or have
assistance to share lifting stress if
possible.
1
A03H0KA
TYPICAL
1. Front grab handles
NOTICE
Do not use skis to pull or
lift snowmobile.
