DRIVE SYSTEM
Brake Fluid Level
CAUTION: Vehiclemustbeonalev-
el surface before checking any fluid
levels.
Check brake fluid (DOT 4) in reservoir
for proper level. Add fluid (DOT 4) as
required.
CAUTION: UseonlyDOT4brake
fluid from a sealed container. Nev-
er use any other types of fluid.
A03D22A
1

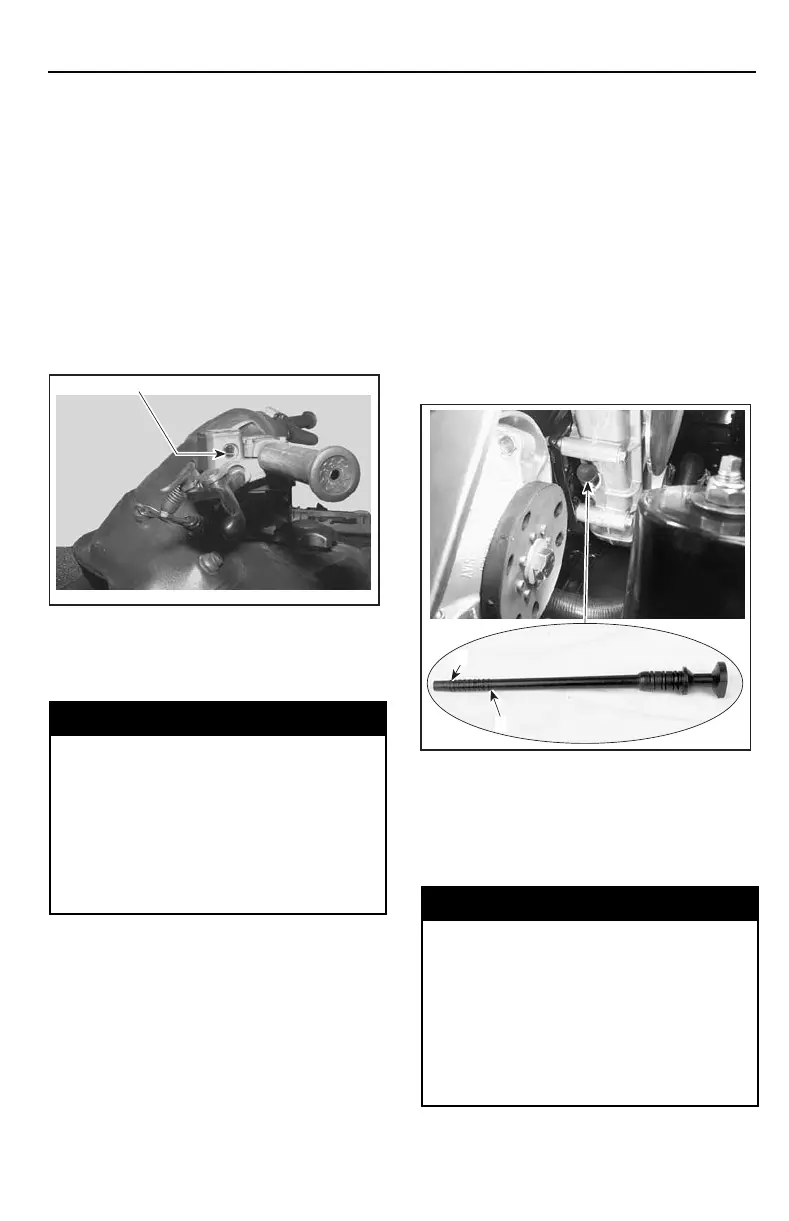

TYPICAL — BRAKE FLUID RESERVOIR
1. Minimum
Brake Condition
WARNING
The brake mechanism on your
snowmobile is an essential safety
device. Keep this mechanism in
proper working condition. Above
all, do not operate the snowmo-
bile without an effective brake
system. Periodically verify the
condition/wear of the brake pads.
Brake Adjustment
No adjustment is provided for hy-
draulic brake. See an authorized
SKI-DOO dealer if any problems.
Gearbox Oil Level
To check, pull dipstick. Oil should
reach level mark.
NOTE: Before initial start-up, the oil
level may be higher than the full mark.
After first outing, oil level will decrease
as the upper oil cavity fills with oil.
To fill, remove filler plug from top of
gearbox. Refill as required using XP-S
synthetic chaincase oil (P/N 413 803
300).
CAUTION: Do not use other unrec-
ommended types of oil when ser-
vicing. Do not mix this synthetic oil
with other types of oil.
A29D0IA
1
2
TYPICAL
1. Full level mark
2. Lower level mark
Belt Guard Removal and
Installation
WARNING
Never operate engine:
– Without shields and belt guard
securely installed.
– Withhoodand/orsidepanels
opened or removed.
Never attempt to make adjust-
mentstomovingpartswhileen-
gine is running.
_____________________
99
