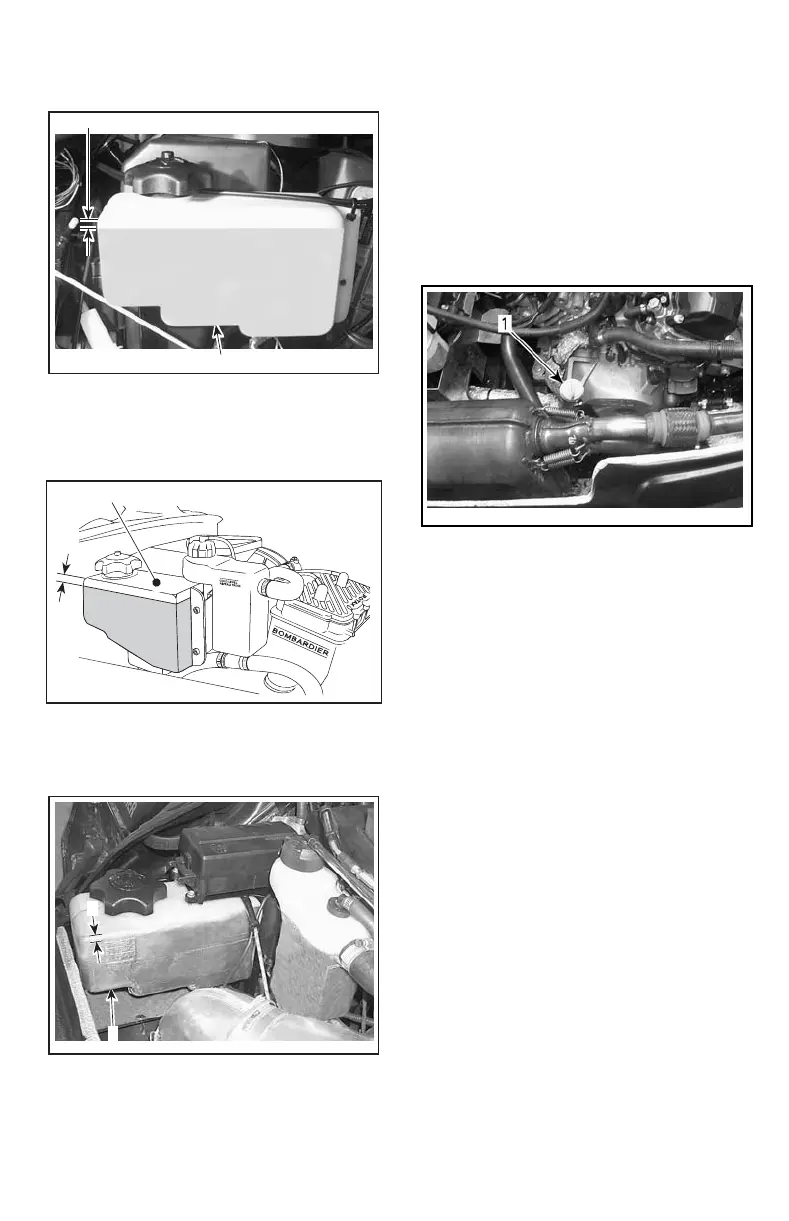

Skandic WT 550F/SWT 550F
A29C0CA
1
2
TYPICAL
1. Injection oil reservoir
2. Maximum level: 13 mm (1/2 in) from top
Skandic WT 600/SUV 550F
A29C0BA
1
2
1. Injection oil reservoir
2. Maximum level: 13 mm (1/2 in) from top
Expedition TUV 600 HO SDI
A29C32B
1
2
1. Injection oil reservoir
2. Maximum level: 13 mm (1/2 in) from top
Engine Oil Level
(4-Stroke Engines)
V800 Model
CAUTION: Check level frequently
and refill if necessary. Do not over-
fill. Operating the engine with an
improper level may severely dam-
age engine. Wipe off any spillage.
mmo2008-001-009_a
RH SIDE OF ENGINE COMPARTMENT
1. Dipstick
Make sure engine is at operating tem-
perature.
Snowmobile must be on a level sur-
face.
Let engine running at idle for at least
30 seconds.
Stop engine, remove and wipe the dip-
stick.
Reinstall dipstick.
Remove and check oil level. Oil level
must be between minimum and max-
imum marks on dipstick.
There is a capacity of 500 ml
(17 U.S. oz) between the two marks.
