mmo2008-001-010_a
TYPICAL

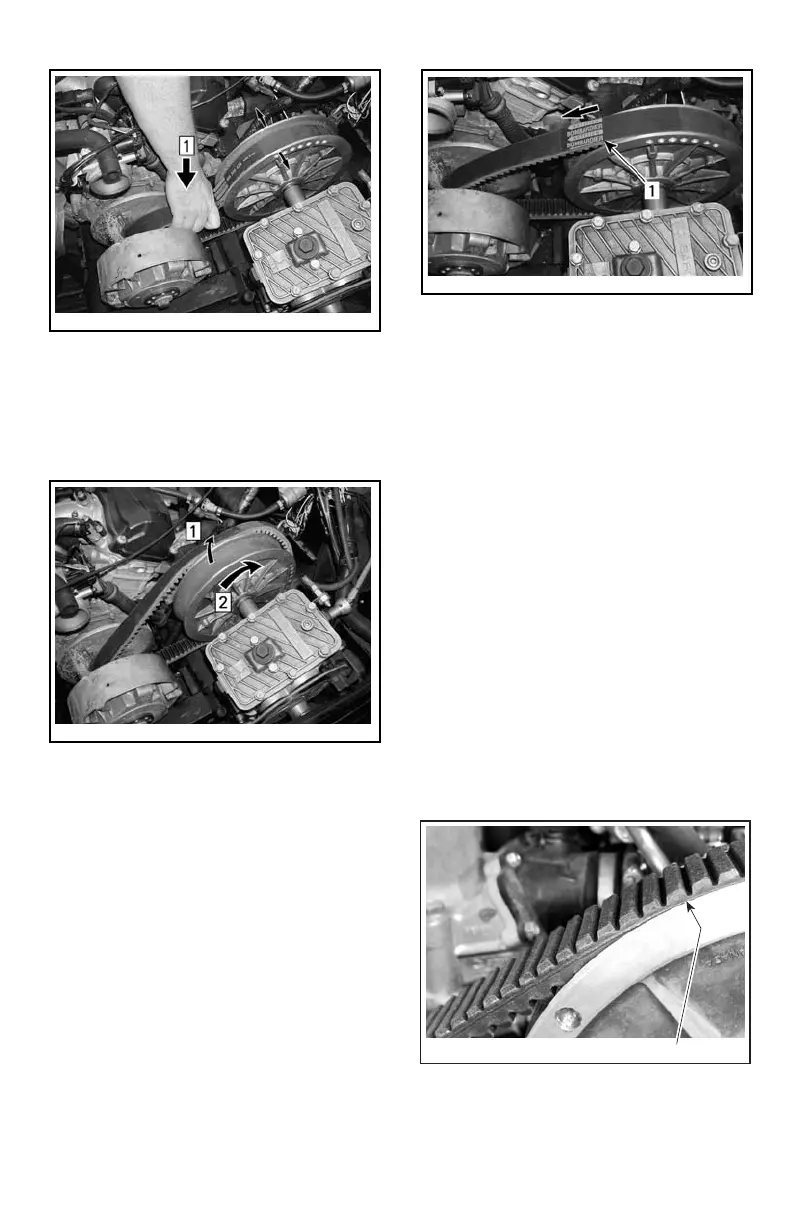

Step 1: Push on drive belt
Release parking brake.
Slip the belt over the top edge of the
sliding half while turning driven pulley,
as shown.
mmo2008-001-011_a
TYPICAL
Step 1: Slip the belt over the top edge of the
sliding half
Step 2: Turn driven pulley at the same time
Remove drive belt.
Installation
To install the drive belt, reverse the re-
moval procedure, however pay atten-
tion to the following.
The maximum drive belt life span is
obtained when the belt has the proper
rotation direction. Install it so the ar-
row printed on belt is pointing at front
of vehicle.
mmo2008-001-012_a
TYPICAL
1. Arrow pointing at the front of vehicle
CAUTION: Do not force or use tools
to pry the belt into place, as this
could cut or break the cords in the
belt.
Clean sheaves of both pulleys using
Pulley flange cleaner (P/N 413 711
809).
Drive Belt Height
Adjustment
To obtain maximum vehicle perfor-
mance and drive belt longevity, drive
belt height adjustment must be per-
formed every time a new drive belt is
installed.
NOTE: If correct adjustment is
unattainable, contact an authorized
SKI-DOO dealer.
The drive belt cord should be flush
with driven pulley edge. Adjust as re-
quired.
1
A02D1UA
TYPICAL
1. Flush
_____________________
101
