Ski-Doo SCANDIC WT - 1 Throttle Lever

A29A0KE
12
1
21
10
7
11
5
21
2
3
19
20
6
8

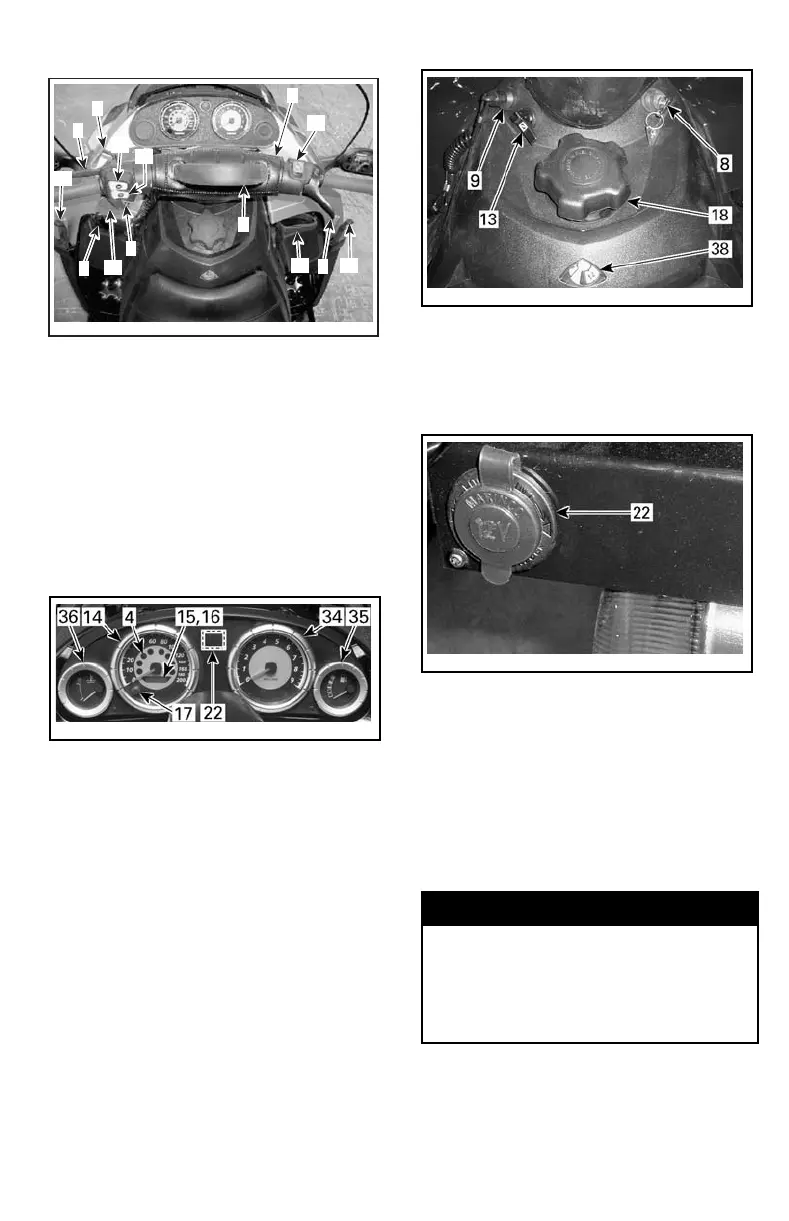

TYPICAL
1. Throttle lever
2. Brake lever
3. Parking brake lever
5. Gear shift lever
6. Handlebar
7. Holding strap
8. Ignition switch/start button
10. Engine cut-out switch
11. Headlamp dimmer switch
12. Rewind starter handle
19. Heated grip switch
20. Heated throttle lever switch
21. Hood latches
mmo2008-001-014_a
TYPICAL
4. Pilot lamps
14. Speedometer
15. Odometer
16. Trip meter/display
17. Mode button
22. Electric power outlet
34. Tachometer
35. Electric fuel level gauge
36. Temperature gauge
mmo2008-001-024_a
TYPICAL
8. Ignition switch/start button
9. Tether cut-out switch
13. Choke lever
18. Fuel tank cap
38. Mechanical fuel level gauge
mmo2008-001-016_a
SKANDIC
TM
SWT V800 ONLY — REAR RACK
22. Electric power outlet
1) Throttle Lever
Located on the right hand side of han-
dlebar and designed to be thumb ac-
tivated. When squeezed, it increas-
es the engine speed and engages the
transmission. When released, engine
speed returns automatically to idle.

WARNING
Test the throttle lever operation
each time before starting the en-
gine. The lever must return to its
original position once released.
Otherwise, do not start engine.
