MODELS
MAXIMUM
OUTPUT
CURRENT
LOCATION
20 amperes Rear rack
SWT V800
5 amperes Dashboard
All others
5 amperes
Dashboard
A29I04A

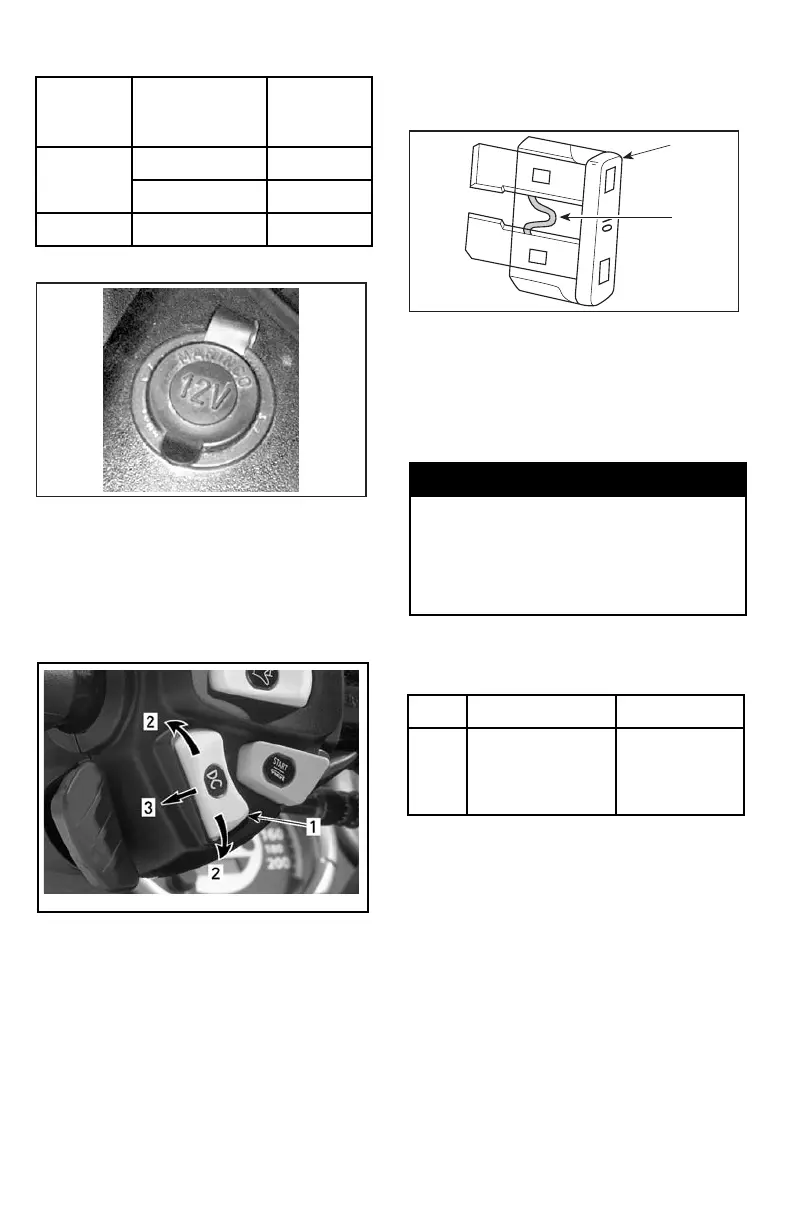

TYPICAL — ELECTRIC POWER OUTLET
SWT V800 Models Only
With the engine running, use the
toggle switch mounted on the multi-
switch housing to supply current to
the rear rack power outlet.
mmo2008-001-017_a
MULTI-SWITCH HOUSING
1. Rear power outlet switch
2. Upper/Lower ON position
3. Middle OFF position
23) Fuses
Fuse Removal/Inspection
Check fuse condition and replace it if
necessary.
To remove fuse from holder, pull fuse
out. Check if filament is melted.
1
2
A15E0KA
1. Fuse
2. Check if melted
CAUTION: Donotuseahigherrat-
ed fuse as this can cause severe
damage to electrical components
and/or be a potential fire hazard.
WARNING
If fuse has burnt out, source of
malfunction should be determined
and corrected before restarting.
See an authorized SKI-DOO dealer
for servicing.
Description/Location
550F Models
FUSE DESCRIPTION LOCATION
30 A
Ground
protection
(includes electric
power outlet)
Engine
compartment
Ground Protection
CAUTION: This fuse should always
be disconnected before doing any
maintenance under the hood. This
is to prevent any unexpected elec-
trical activation.
