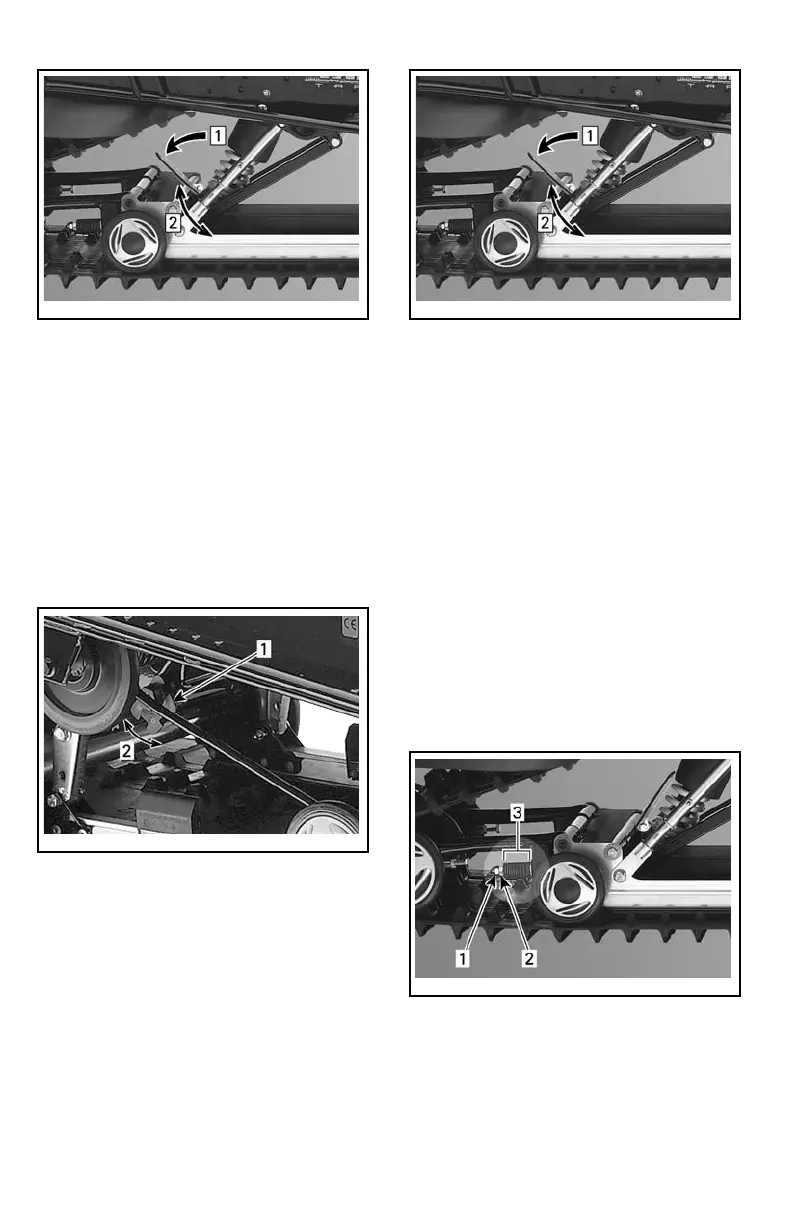

mmo2008-001-005_b
TYPICAL
Step 1: Pull on handle
Step 2: Turn to increase spring preload
Decrease Spring Preload
Skandic SWT/WT Only
CAUTION: To decrease preload,
always turn the left side adjust-
ment cam in a counterclockwise
direction, the right side cam in a
clockwise direction. Left and right
adjustment cams may be at differ-
ent settings.
mmo2008-001-006_a
1. Pull on handle
2. Turn to decrease spring preload
Skandic SUV/Expedition TUV
Only
From the highest position, turn ad-
juster to select lowest position, then
turn adjuster to the desired position.
mmo2008-001-005_b
TYPICAL
Step 1: Pull on handle
Step 2: Turn to decrease spring preload
2. Suspended Extension
Adjustment
Suspended extension can be adjusted
according to the load and snow condi-
tions.
For better deep snow performance
or to increase reverse performance in
deep snow, first loosen lock nut, then
tighten nut 3/4 turn after contacting
washers. Retighten lock nut. Adjust
thesameonbothsides.
For trail riding with a load or for pulling
a load, first loosen lock nut. Turn to a
maximum preload of 3 turns after nut
touching washers. Retighten lock nut.
Adjust the same on both sides.
mmo2008-001-007_a
TYPICAL
1. Lock nut
2. Nut
3. Washers
62
