Function tests Section 4 – Inspections Before Operation
4.3-11 Do a test of the brakes
IMPORTANT
The brakes engage instantly when you release the
function-enable switch. This causes the MEWP to
stop immediately.
1. Make sure the path of intended motion is clear.
2. Move the lift/off/drive switch
6
to the drive
position.
3. Squeeze and hold the function-enable switch
1
.
4. Drive the MEWP forward and then rearward.
Release the controller handle
2
.
▪
Result: The MEWP stops. Do not operate the
MEWP if the MEWP pulls to one side while it
stops. A service technician must do a check
on the brake adjustments.
5. Drive the MEWP forward and then rearward.
Release the function-enable switch
1
only.
▪
Result: The MEWP comes to an instant and
sudden stop. Do not operate the MEWP if it
does not stop immediately, or it pulls to one
side while it stops. A service technician must
do a check on the brake adjustments.
4.3-12 Do a test of the platform raise and
lower functions
WARNING
Look for overhead obstructions or other possible
hazards around the MEWP when you raise the
platform. Do not lower the platform unless the area
below is clear of personnel and obstructions. If
you do not obey, there is a risk of death or serious
injury.
1. Move the lift/off/drive switch
6
to the lift
position .
2. Squeeze and hold the function-enable switch
1
.
3. Push the controller handle
2
to raise the
platform by approximately 0.5 m (20 in).
▪
Result: The platform rises.
4. Squeeze and hold the function-enable switch
1
.
5. Pull the controller handle
2
to fully lower the
platform.
▪
Result: The platform fully lowers.
4.3-13 Do a test of the horn
1. Push the horn button
5
.
▪
Result: The horn makes a sound.

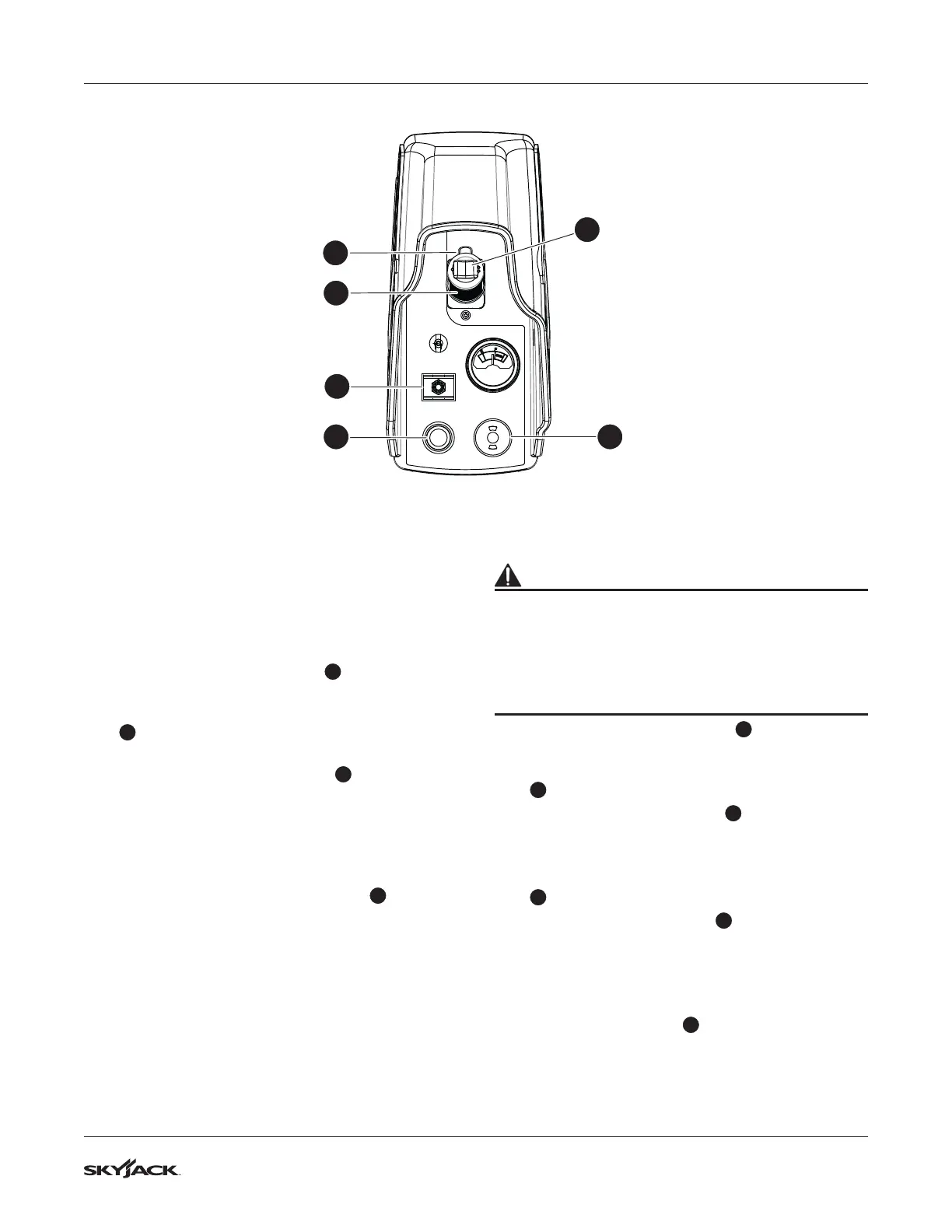

5 4
3
1
6
2

Skyjack SJ12 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Machine Width	32 in (0.81 m)
Stowed Height	6.5 ft
Overall Width	32 in (0.81 m)
Stowed Height (Rails Folded)	6.5 ft
Drive Speed (Elevated)	0.5 mph (0.8 km/h)
Power Source	Electric
