Floor Loading Capacity Section 7 – Specications
7.6 Floor Loading Capacity
Model
Total MEWP
Weight
Total MEWP Load
Wheel LCP** OFL**
SJ12
min* 863 kg (1905 lb) 275 kg (610 lb) 595 kPa (86 psi) 8.1 kPa (169 psf)
max* 1090 kg (2405 lb) 430 kg (950 lb) 745 kPa (108 psi) 10.2 kPa (213 psf)
SJ16
min* 980 kg (2160 lb) 355 kg (783 lb) 770 kPa (112 psi) 9.2 kPa (192 psf)
max* 1207 kg (2660 lb) 510 kg (1125 lb) 880 kPa (128 psi) 11.3 kPa (236 psf)
Min: Minimum MEWP weight (Unloaded platform, no options/attachments)
Max: Maximum MEWP weight (Platform loaded to capacity with options/attachments)
Wheel/Outrigger Load is the weight that can be experienced on one wheel/outrigger.
Note: This is more than 25% of the machine weight due to possible weight distribution over the machine and
LCP: Local Concentrated Pressure is a measure of how hard the MEWP presses on the area in direct contact
with the oor/tire/outrigger.
OFL: Overall Floor Load (Pressure) is a measure of the average load the MEWP imparts on the whole
surface directly underneath the chassis. This has been calculated by dividing the MEWP weight by the
overall oor area occupied by the MEWP (on wheels/outriggers).
Note: The floor covering (e.g., tile, carpet, etc.) or the structure (e.g., beams) of the operating surface must
be able to withstand more than the values indicated above.
NOTE
The LCP or OFL that an individual surface can withstand varies from structure to structure and is
generally determined by the engineer or architect for that particular structure.

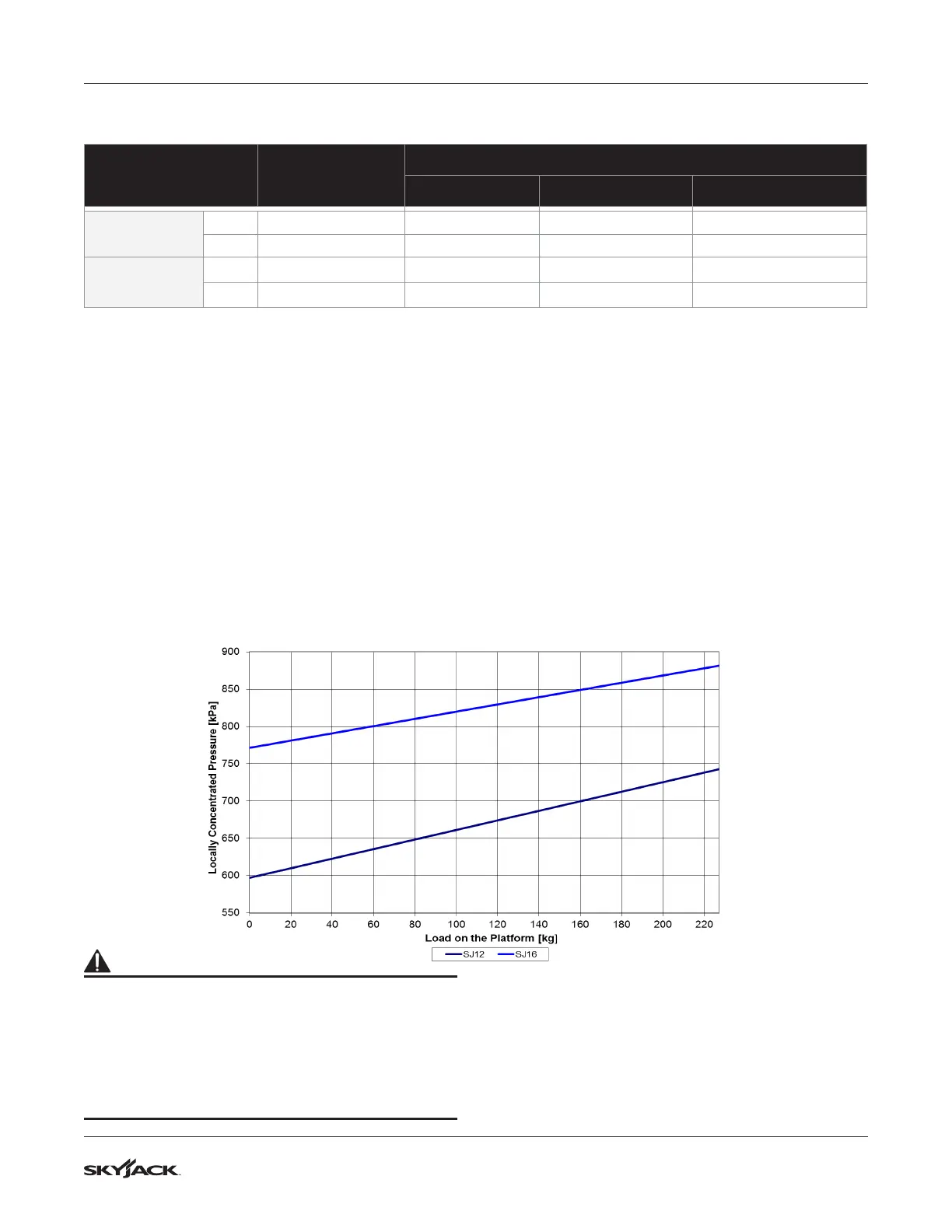

Floor Loading Pressure
SJ16
SJ12
WARNING
Do not use tires other than the tires that Skyjack
species for this MEWP. Do not mix different types
of tires or use tires that are not in good condition.
Only replace the tires with the same types that are
approved by Skyjack. The use of other tires can
make the MEWP less stable. If you do not obey,
there is a risk of death or serious injury.
