Move the MEWP for transport Section 6 – Additional Procedures
6.4-1 Hoist the MEWP
WARNING
Only qualied riggers must operate the machinery
during a lift.
When you hoist the MEWP, you must:
▪
Turn the main power disconnect switch to the off
position.
▪
Retract and secure the traversing platform.
▪
Attach the platform control console to the
mounting bracket, or remove the platform
control console.
▪
Remove all personnel, tools, and materials from
the platform.
▪
Attach the rigging to all four lift points
1
. Refer
to Figure 04 & Figure 05.
NOTE
For the weight of the MEWP, refer to
Section 7.3 Horizontally, the center of gravity is
approximately in the middle of the MEWP, front to
back and side to side. Refer to Figure 06. Vertically,
the center of gravity is approximately a small distance
above the chassis.
6.4-2 Drive and tie-down the MEWP
Before you drive the MEWP:
▪
The ramp or dock capacity must be able to hold
the maximum MEWP weight.
▪
Use side guards (if available) to prevent a fall from
the ramp.
▪
The incline of the ramp must not exceed the
MEWP gradeability. Refer to Section 7.3.
▪
Do a test of the MEWP brakes to make sure they
operate correctly.
WARNING
When you transport the MEWP, it must be attached
to a truck or trailer deck. Use the available
tie-down points to attach the MEWP. If you do not
obey, there is a risk of death or serious injury.
▪
Tie-down the MEWP to the transport vehicle using
the four tie-down points
1
. Refer to Figure 04.
1
1

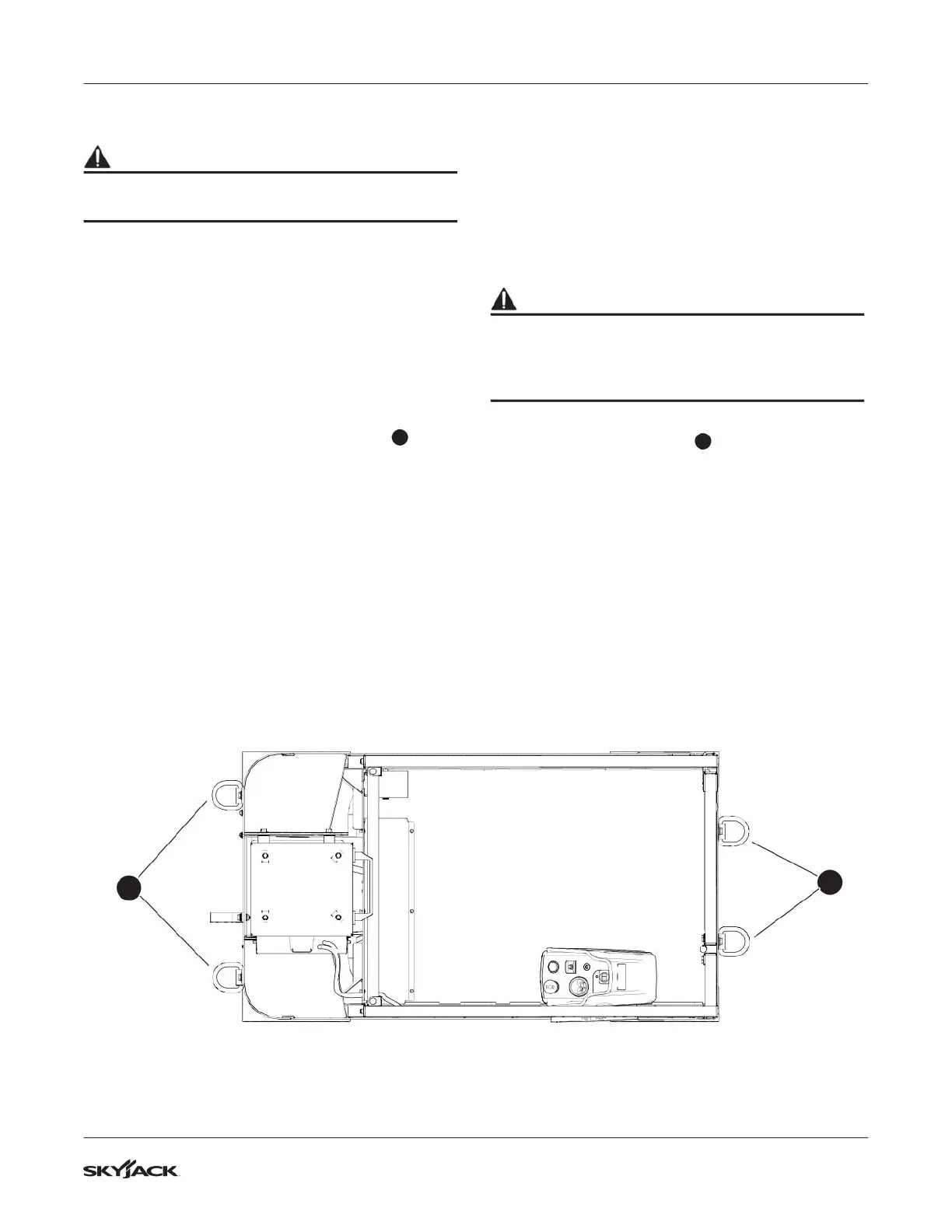

Figure 04 Tie-down and lift points

Skyjack SJ12 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Machine Width	32 in (0.81 m)
Stowed Height	6.5 ft
Overall Width	32 in (0.81 m)
Stowed Height (Rails Folded)	6.5 ft
Drive Speed (Elevated)	0.5 mph (0.8 km/h)
Power Source	Electric
