Section 6 – Additional Procedures Move the MEWP for transport

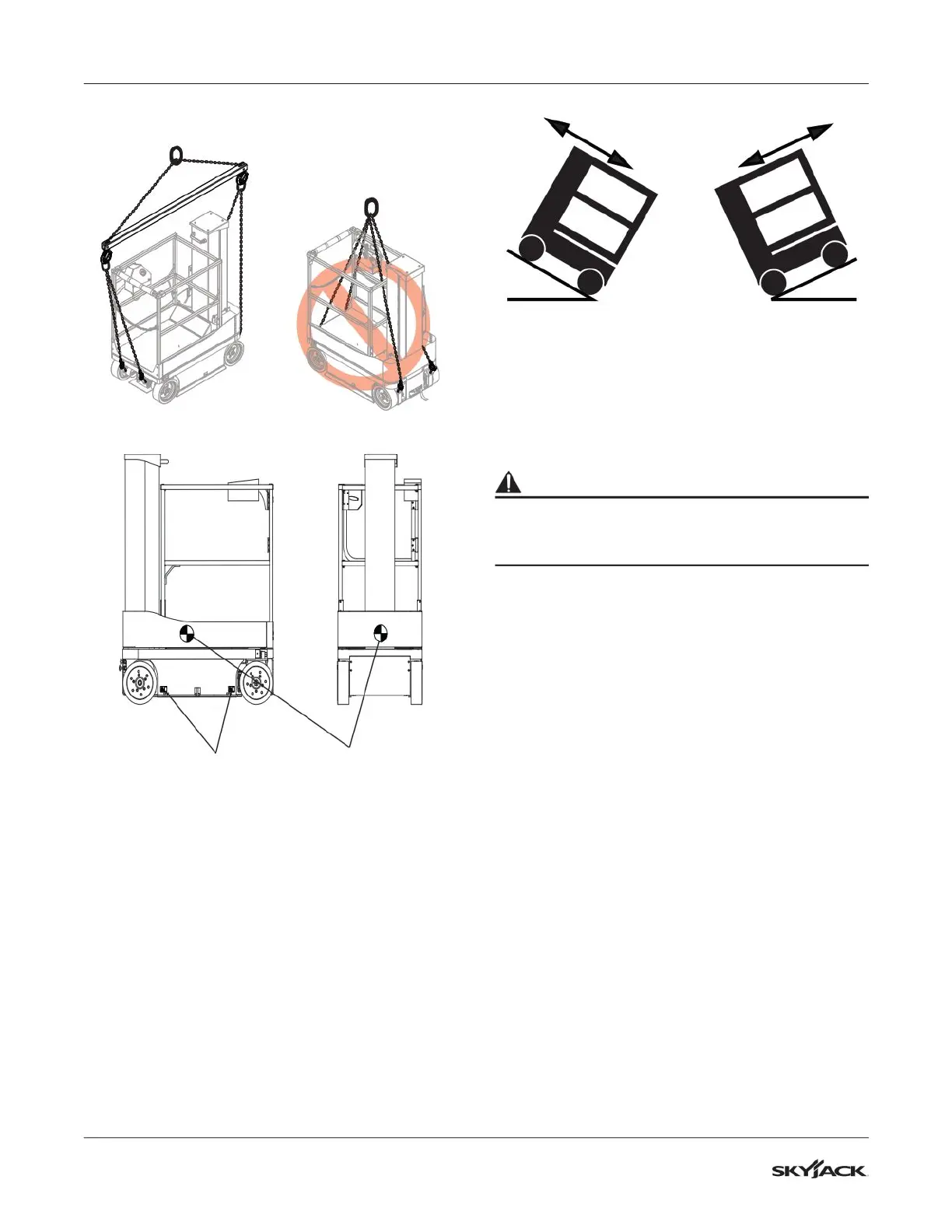

Figure 05 Appropriate method to hoist
Figure 06 Center of gravity and forklift lift locations
NOTE
For the weight of the MEWP, refer to
Section 7.3. The center of gravity is approximately
in the middle of the MEWP, front to back and side
to side. Refer to Figure 6. Vertically, the center of
gravity is approximately a small distance above
the base..
NOTE
A forklift truck can lift the MEWP from the sides.
Lift with the forks in the forklift lift locations as
shown in Figure 06.
30% 25%
Gradeability 30%: Climbing reverse, descending
forward
Gradeability 25%: Climbing forward, descending
reverse
Figure 07 Maximum gradeability of inclined drive
CAUTION
Make sure you use the correct lift method. An
incorrect lift method, such as the one in Figure 05,
can cause damage to the MEWP.
Forklift Lifting
Locations
Center of
Gravity

Skyjack SJ12 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Machine Width	32 in (0.81 m)
Stowed Height	6.5 ft
Overall Width	32 in (0.81 m)
Stowed Height (Rails Folded)	6.5 ft
Drive Speed (Elevated)	0.5 mph (0.8 km/h)
Power Source	Electric
