Skyjack SJ12 User Manual

66
SJ12, SJ16213721AAA
Section 8 – Labels SJ12 and SJ16 models
Description Label pictorial
1
Base controls
▪
Turn and hold the lower/neutral/raise switch to lower or
raise the platform.
▪
Select the off position to turn off power to the MEWP,
the base position to energize the base controls, or the
platform position to energize the platform controls.
▪
Push the emergency-stop button to disconnect power
to the control circuit. Pull the emergency-stop button to
connect the power again.
2
Lift and tie-down points
Only use these points to lift or tie-down the MEWP.
TM
3
Serial plate*
MEWP identication and specications.
*The serial plate information changes with different MEWPs.

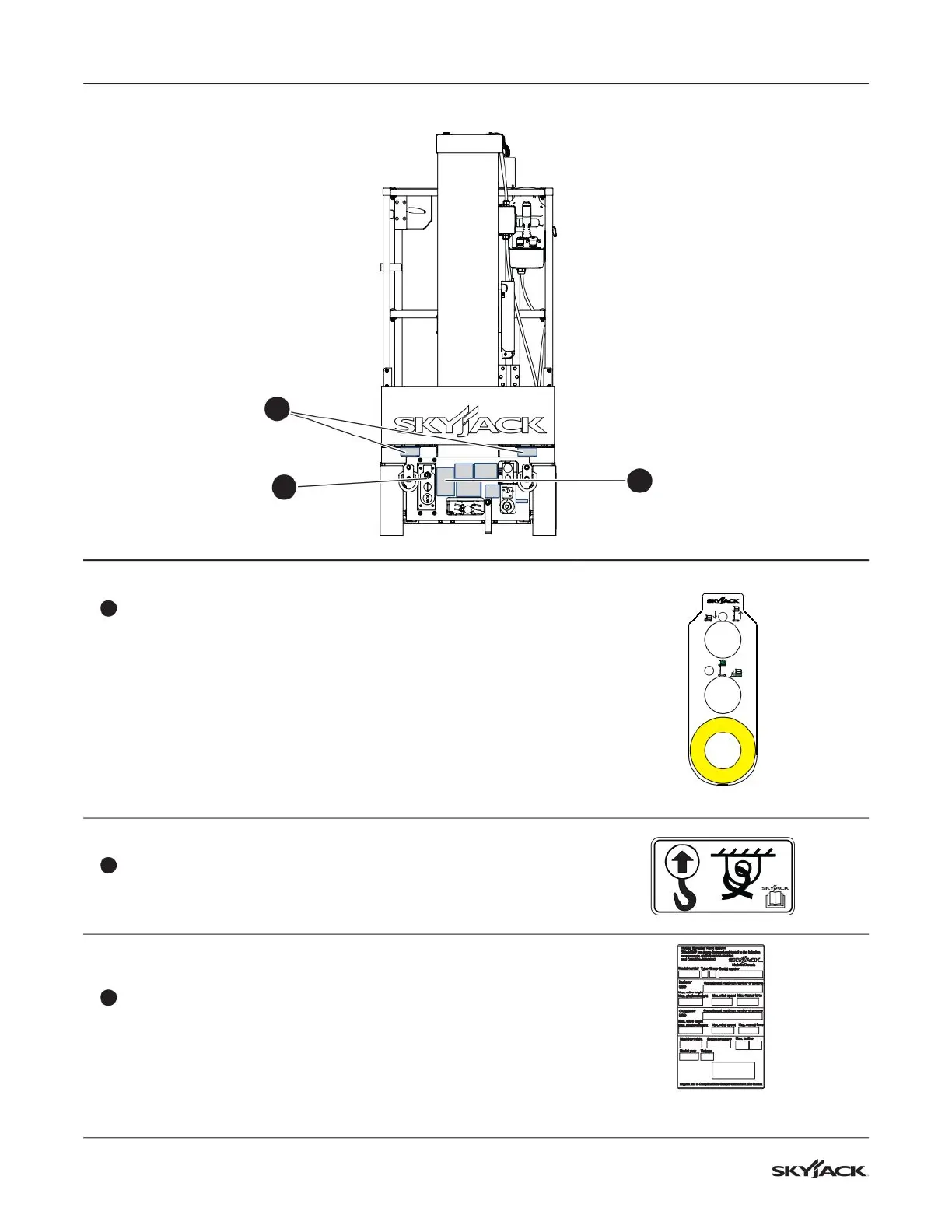

8.1 SJ12 and SJ16 models
8.1-1 Rear view
1
2
3

Skyjack SJ12 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Machine Width	32 in (0.81 m)
Stowed Height	6.5 ft
Overall Width	32 in (0.81 m)
Stowed Height (Rails Folded)	6.5 ft
Drive Speed (Elevated)	0.5 mph (0.8 km/h)
Power Source	Electric
