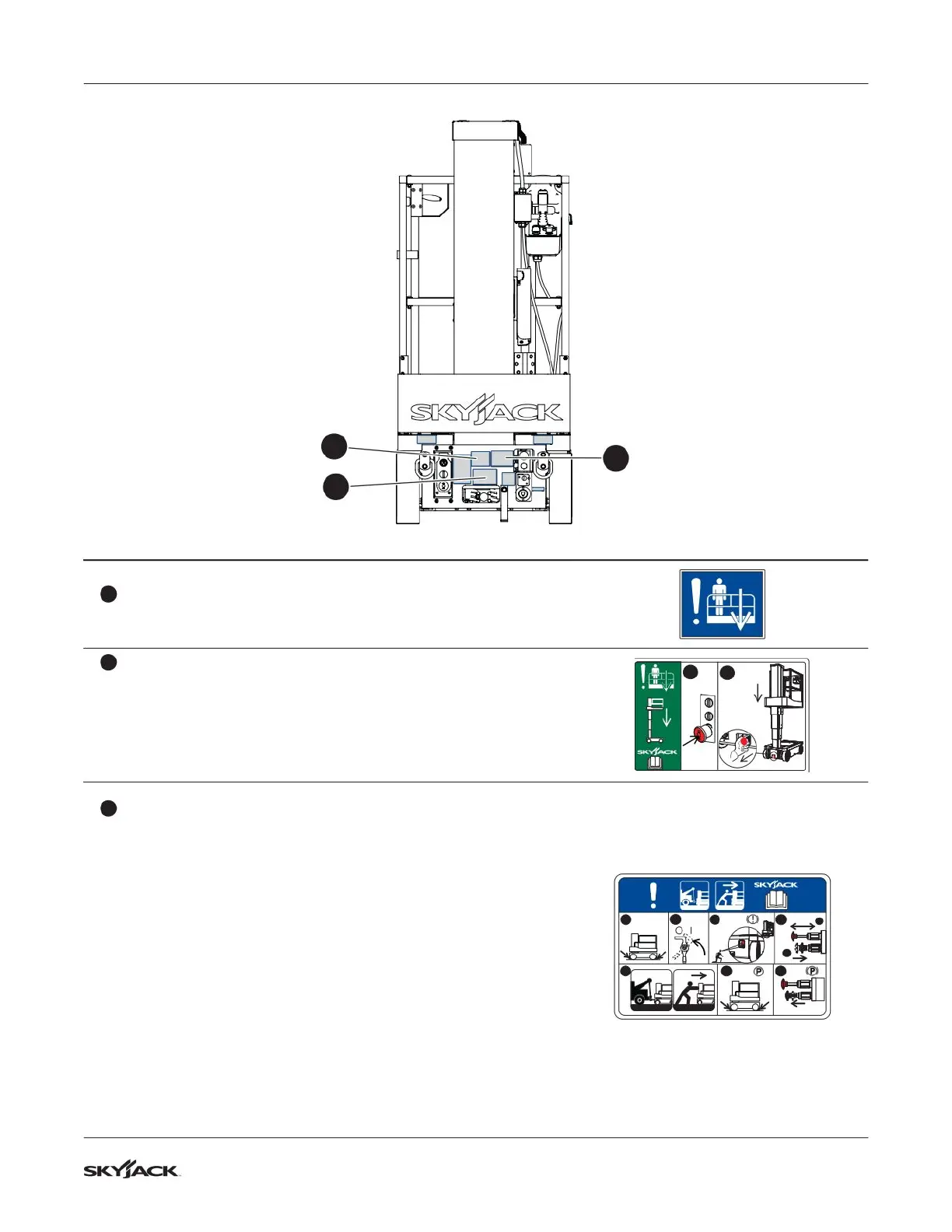

SJ12 and SJ16 models Section 8 – Labels
Description Label Pictorial
4
Emergency-lowering identication
5
Emergency-lowering procedure
Refer to the operation manual.
1. Push the emergency-stop button to on the base control
console.
2. Pull and hold the emergency-lowering valve to fully lower the
platform.
173237ABZZ
2
TM
1
6
Winch/tow/push procedure
Refer to the operation manual.
1. Use wheel chocks or blocks at the front and rear of the
wheels to prevent MEWP movement.
2. Turn the main power disconnect switch to the off position.
3. Find the brake valve and pump.
4. Push the plunger of the brake auto-reset valve. Continuously
push and release the knob of the hand pump until the rm
resistance is felt.
5. Push, winch, or tow the MEWP to the necessary location.
6. Use wheel chocks or blocks at the front and rear of the
wheels to prevent MEWP movement.
7. Pull the plunger of the brake auto-reset valve to re-engage
the brakes.
1
5 6 7
2
4
20-30
3
173236ABZZ
TM
A
B
Rear view (continued)
5
6
4

Skyjack SJ12 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Machine Width	32 in (0.81 m)
Stowed Height	6.5 ft
Overall Width	32 in (0.81 m)
Stowed Height (Rails Folded)	6.5 ft
Drive Speed (Elevated)	0.5 mph (0.8 km/h)
Power Source	Electric
