Skyjack SJ12 User Manual

79
SJ12, SJ16 213721AAA
SJ12 and SJ16 models Section 8 – Labels

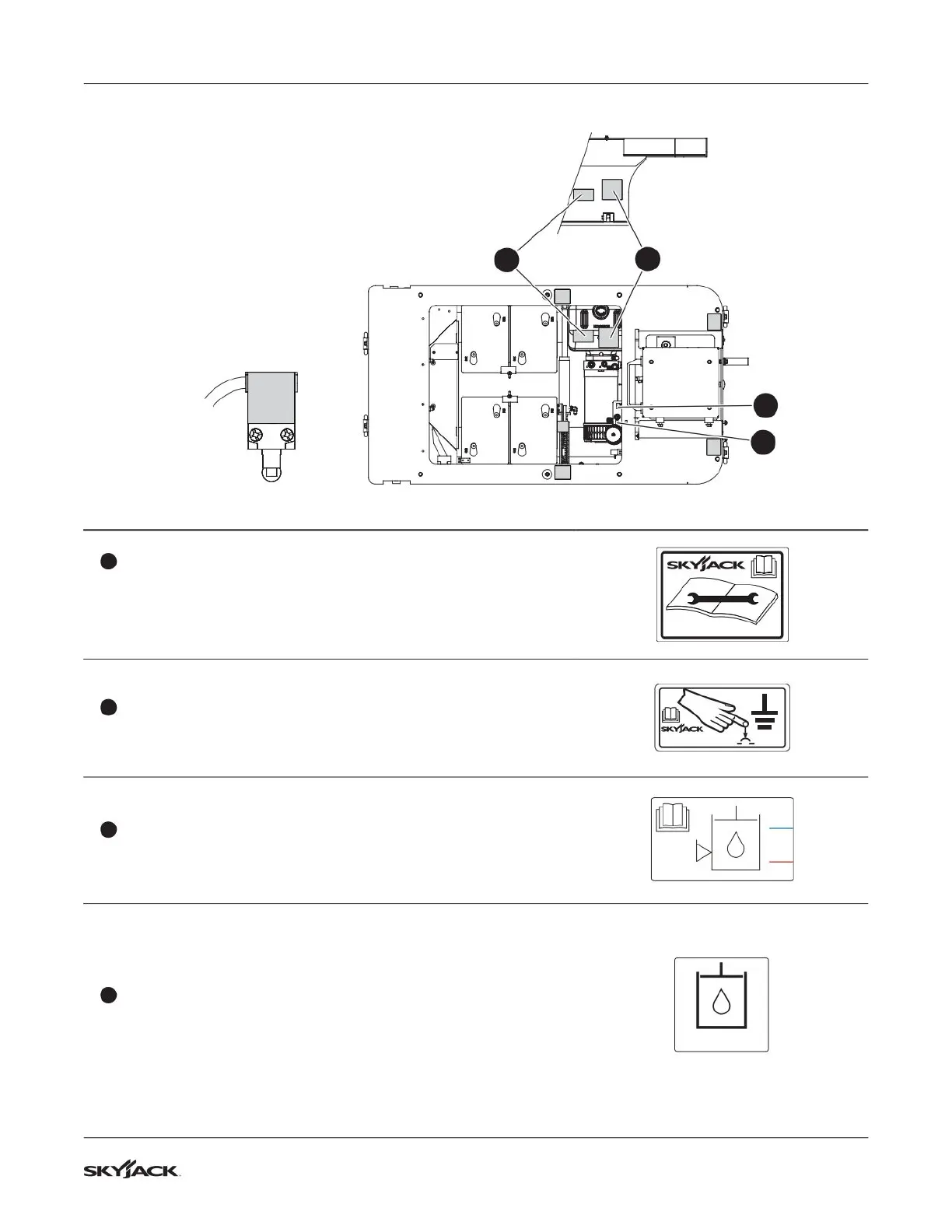

Description Label Pictorial
4
Diagnostic switch
Refer to the service manual.
This switch enables the hydraulic functions for maintenance/
servicing.
156612ACZZ
TM
5
Ground circuit breaker
Push to reset the ground circuit breaker.
117389ACZZ
TMTM
6
Hydraulic oil level
Shows the minimum and maximum hydraulic oil level.
7
Hydraulic Oil ATF Dexron III
Only replace the hydraulic uid with ATF Dexron III.
Base view–cover up (continued)
6
7
4
5
