It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION
2.2-7 Base Control Console
This control console is located in the panel mounted in the control compartment.
12 11
1
2
3a
10
9
76
13a
54a
8
3b
3c
13b
4b
14

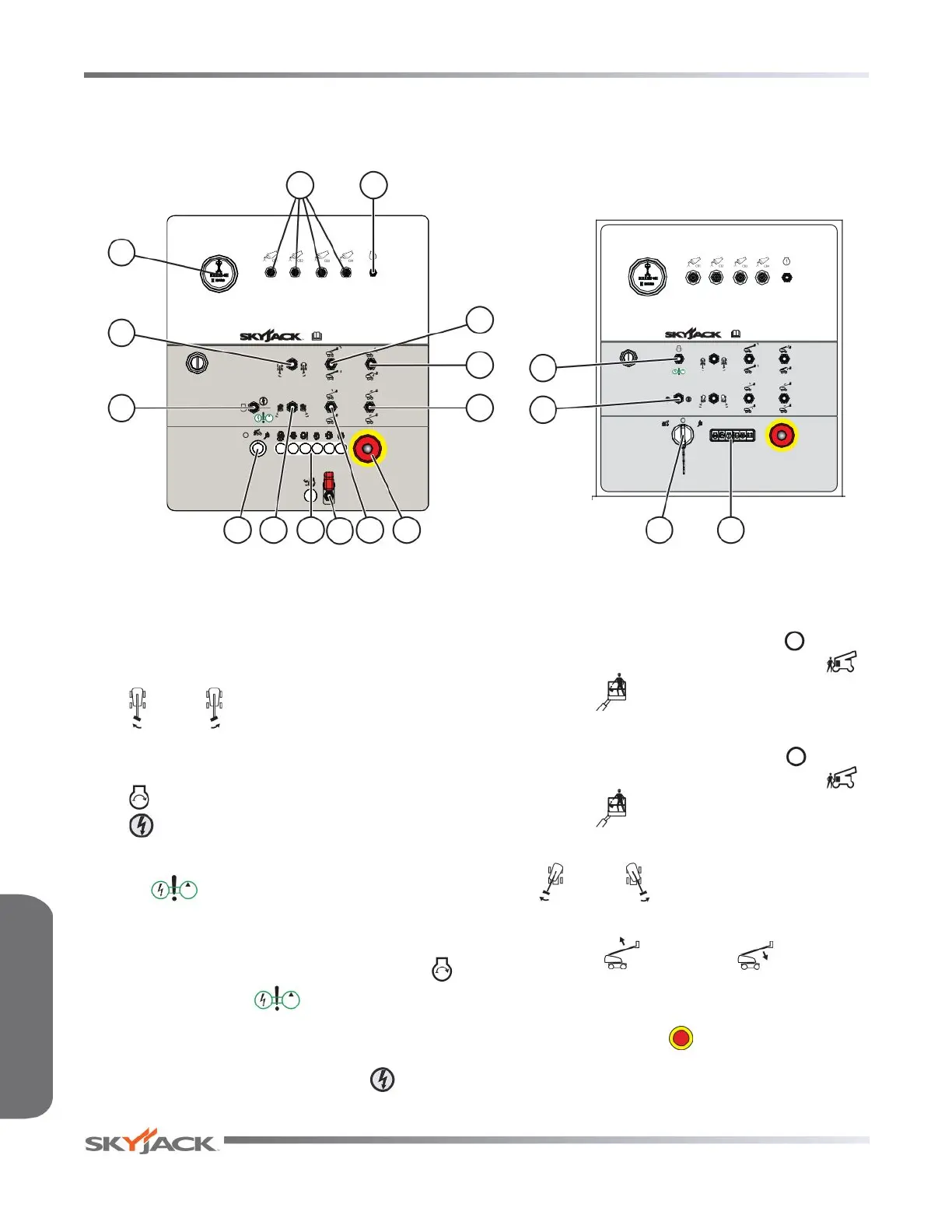

Figure 2-5. Base Control Console
1. Hourmeter - This gauge records accumulated
operating time of engine.
2. Platform Rotation Switch - This switch controls
“ ” left or “ ” right rotation of platform.
3a. Start/Function Enable/Emergency Power
Switch - This momentary switch, when held in
“ ” start position, starts engine. When held in
“ ” function enable position, allows base control
functions to operate. Engine speed increases
when selected. With engine off, and when held
in “ ” emergency power unit position,
allows base control functions to operate using
emergency power unit.
b. Start/Emergency Power Switch - This switch“ ”
starts engine or “ ” enables emergency
power unit.
c. Function Enable Switch - When held in either
direction, this momentary switch “ ” allows
base control functions to operate.
4a. Off/Base/Platform Key Switch - This three-way
selector switch allows operator to “ ” turn off
power to aerial platform or to activate either “ ”
base or “ ” platform control console.
b. Base/Off/Platform Key Switch - This three-way
selector switch allows operator to “ ” turn off
power to aerial platform or to activate either “ ”
base or “ ” platform control console.
5. Turret Rotation Switch - This switch controls
“ ” left or “ ” right rotation of turret.
6. Main Boom Raise/Lower Switch - This switch
controls “ ” raising or “ ” lowering of
main boom.
7. E m e r g e n c y S t o p B u t t o n - T h i s r e d
“mushroom-head” “ ” pushbutton disconnects
power to control circuit and shuts engine off.
Page 16
SJ 40T & SJ 45T
SJ 61T & SJ 66T
Control Functions Section 2 - Familiarization
