3.10-3b Lifting (61T/66T)
1. Rotate the boom and position the aerial platform
as shown in Figure 3-15 and Figure 3-16..
2. Turn main power disconnect switch to “ ” off
position.
3. Clear platform of all personnel, tools and materials.
WARNING
Whe n lif ting the a eria l p latf orm,
lifting devices must be attached to
designated lift points only (refer to
Figure 3-16 and Figure 3-17).
WARNING
Use chains with load capacity sufcient
to withstand aerial platform weight. Refer
to the serial plate of the aerial platform
for specic weight.
4. Properly adjust rigging to ensure aerial platform
remains level during lifting. See Center of gravity
location (Figure 3-15).

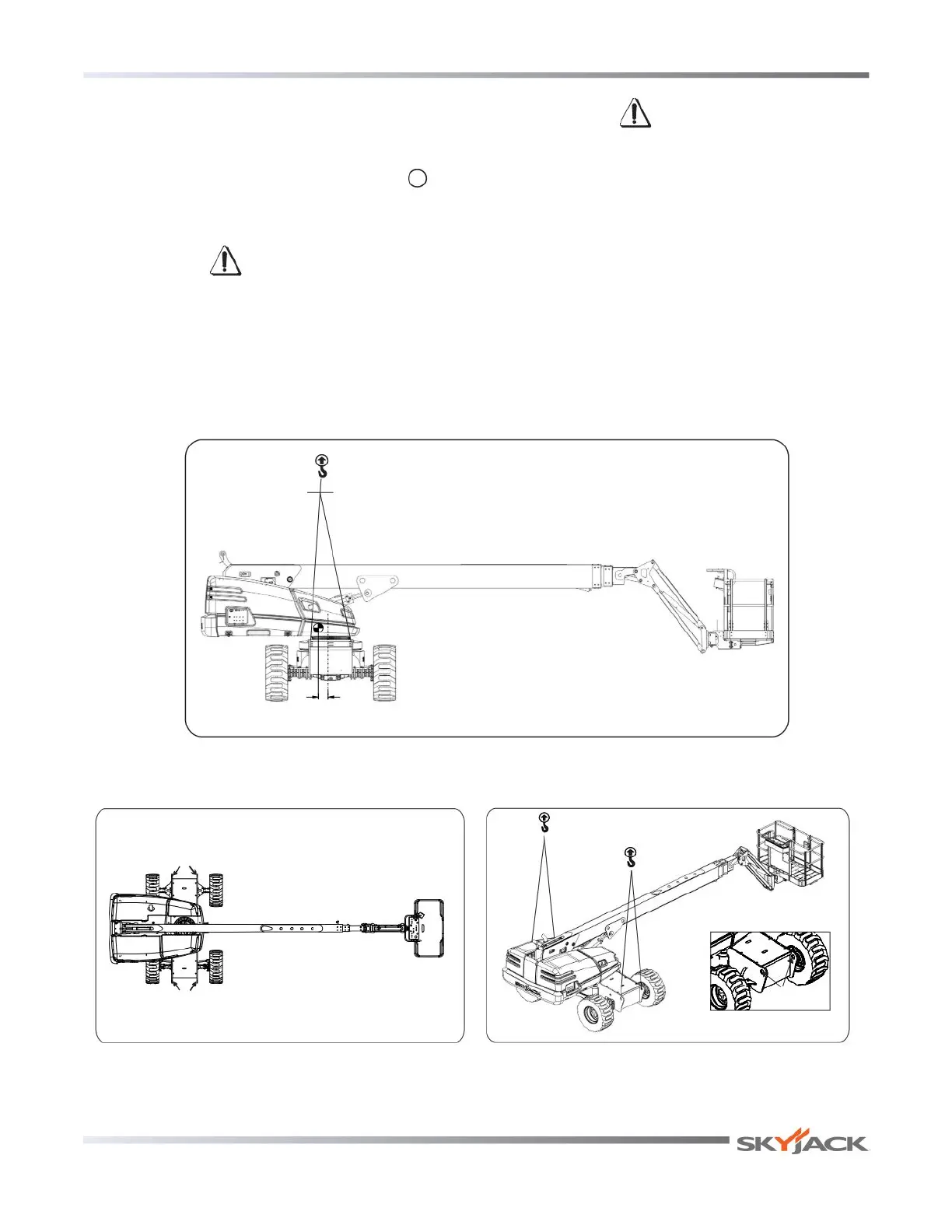

Figure 3-17. 61/66T Lifting Points
Figure 3-16. 61/66T Overhead View Lifting Points
Figure 3-15. 61/66T Center of Gravity
C
L
10”
(0.25m)
Transport/Lift Points
Transport/Lift Points
SJ 40T & SJ 45T
SJ 61T & SJ 66T
